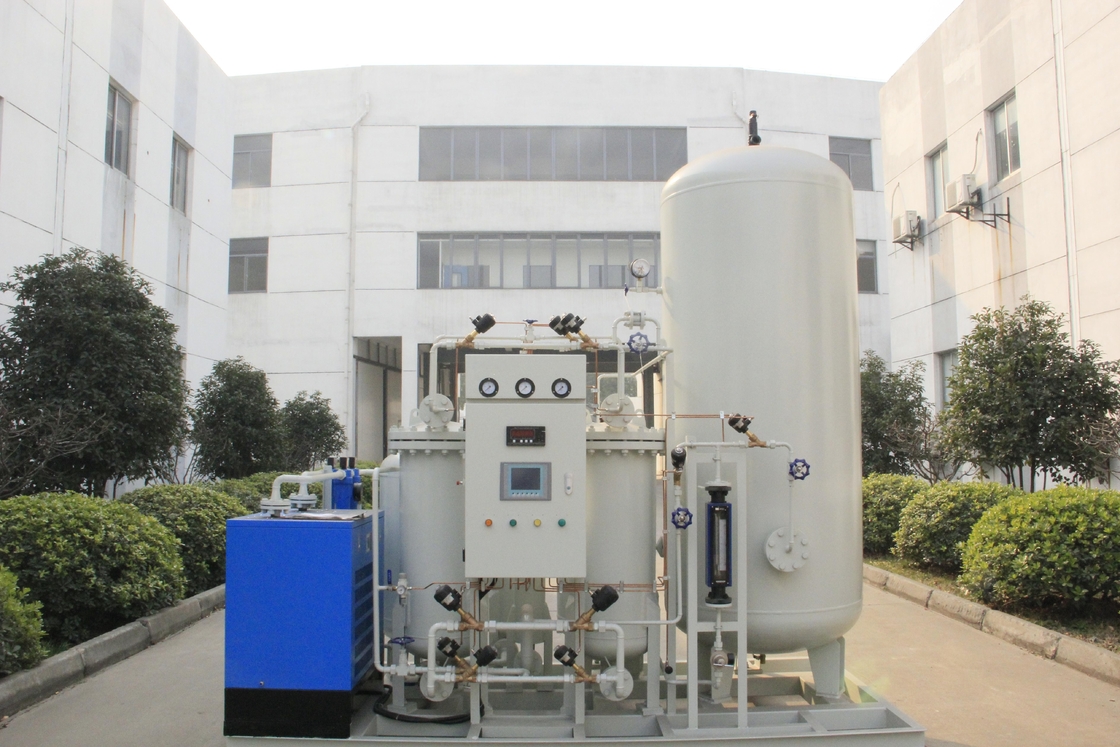

LNG Liquefaction Production Line PSA Nitrogen Generator with BV Certificate

LNG Liquefaction Production Line PSA Nitrogen Generator with BV Certificate

  • LNG Liquefaction Production Line PSA Nitrogen Generator with BV Certificate
LNG Liquefaction Production Line PSA Nitrogen Generator with BV Certificate
Product Details:
Place of Origin: Suzhou, China
Brand Name: SINCE
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /per year
Contact Now
Detailed Product Description
Material: Carbon Steel/Stainless Steel Certificates: BV,,CCS,ISO,TS
Capaicty: 5-5000 Nm3/h Purity: 95%-99.9995%
Dew Point: -70 ℃ Operate Power: 1 KW
Application: Nitrogen Generation System/plant For LNG Liquefaction Production Liine
Highlight:

sa nitrogen plant

,

psa nitrogen generation system

,

PSA Nitrogen Generator BV Certificate



LNG Liquefaction Production Line PSA Nitrogen Generator with BV Certificate





PSA nitrogen generator
1) N2 Purity: 99-99.9995%
2) N2 Flow: 3-3000Nm3/h
3) N2 Pressure: 1-8 bar(adjustable)
4) SIMENS PLC Controller



Good Quality Nitrogen Generator
1) Computer-aided operation
2) Simple technical design
3) Easy maintenance
4) Low energy consumption





What is PSA ?



It is a  technology used to generate gaseous Nitrogen on-site.

Carbon Molecular Sieve (CMS) adsorbs oxygen and water vapor molecules under high pressure - while allowing Nitrogen to pass through,so that the nitrogen is separated from the air.

Skid-mounted units can be supplied according to  customer's requirements.



Technological Process

Nitrogen Generation system from our company are designed and manufactured based on the principle

of Pressure Swing Adsorption(PSA). Ambient air, having being compressed and purified to remove oil, water and dust, enters the adsoption swing adsorping device with two adsorption towers filled with

carcon molecular sieve(CMS). The compressed air flow to the adsorption tower from the bottom to up.

In the process, oxygen molecular is adsorbed, while nitrogen flows out of the upper side of adsorption tower and then enters then buffer tank for impure nitrogen. After a period of time, the CMS in the adsorption tower is saturated by the oxygen adsorbed. At this time, regeneration is needed. It is

realized by stopping adsorbing step and reduce pressure in the adsorption tower. Adsorption and regeneration are conducted alternatively in the two adsorption towers to ensure the consecutive output

of nitrogen gas.



The whole system components

The whole nitrogen generation system mainly consists of the air compressor, the compressed air

receiver, filters, refrigeration dryer, the PSA nitrogen generator, and the nitrogne receiving tank.

For the air compressor, famous brand such as the Atlas Copco, the Ingersoll Rand can be available

from our company to match the PSA nitrogen generators.

For filters, the elements with brand of Hankison, Domnick are available.

For refrigeration dryer, we have J.mec, the first brand within China, also Hanzhou Union Filter the professional manufacturer of dryer and filters.





Specifications:



Nitrogen Capacity/Flow rate: 3-3000Nm³/h

Nitrogen Purity: 95%-99.9995% (95%, 97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.999%, 99.9995%)



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly





1The Application Range of  Good Quality Nitrogen  Generator

Its suitable to use in small-scale nitrogen demand of chemical industry, nitrogen production and filling

and filling of injection solution, transfusion solution and oral liquid in pharmacy industry, the blow and replacement of instruments in laboratory, food preservation by filling in nitrogen in food industry,

agitation of beverages and expansion of foods.



2 The Main Characters of Good Quality Nitrogen Generator

1)The equipment adopts the brand-newly-designed filling technique and the service.

2)Special bypass design ensures lower energy consumption and higher yielding results.

3)Imported integrated pneumatic valve with original packaging guarantees the serviceability in a greater degree.

4)Computer-aided operation with the simple technical design makes for easy maintenance of the equipment.



3 Technical Parameters of Good Quality Nitrogen Generator

Nitrogen-making capacity: 3-3000Nm³/h

Power: 0.5KW

Purity: ≥99.995%

Dew point: -70℃

Air source pressure: 0.8-1.0Mpa

Nitrogen-making pressure: 0.1-0.7Mpa



 Excellent Energy-saving Features Reduce Air Cost:



1.  Advanced process flow directly reduces compressed air consumption.



2.   World famous molecular sieve ensures maximum energy-saving.



3.   Advanced load adaptation technology further saves energy.



4.   The most reliable air cleaning process ensures adsorbing efficiency and lifetime of molecular sieve.



5.   National patent valve guarantees stable equipment operation.



6.   Air tank ensures stable system air consumption.



7.   Nitrogen buffer tank ensures stable system gas supply.



8.   National patent compaction technology ensures long life of CMS.



9.   Long-distance supervision and control.



10. Professional technologies ensure reliable gas supply.



11.  Friendly human-machine interface.
