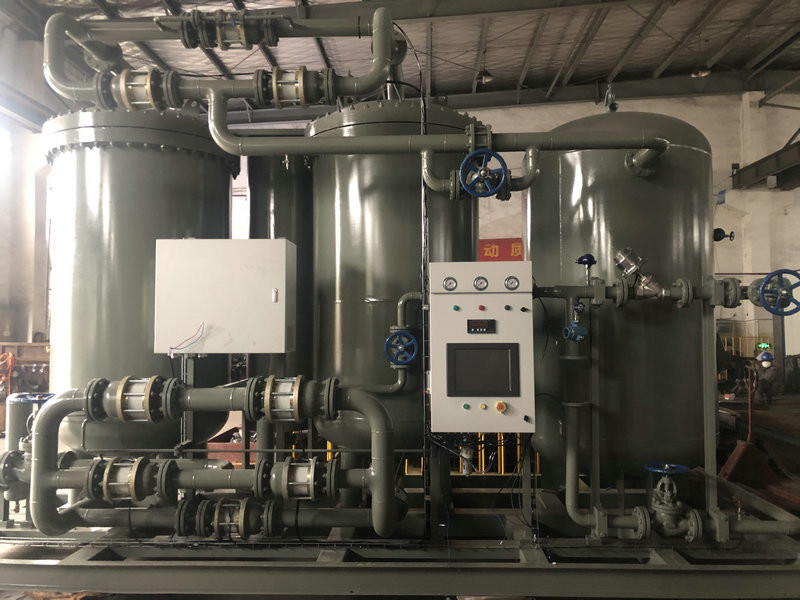

Energy Saving PSA Nitrogen Generator For Food And Beverage Processing

Energy Saving PSA Nitrogen Generator For Food And Beverage Processing

  • Energy Saving PSA Nitrogen Generator For Food And Beverage Processing
Energy Saving PSA Nitrogen Generator For Food And Beverage Processing
Product Details:
Place of Origin: Suzhou
Brand Name: SINCE-GAS
Certification: CE,ABS,DNV,CCS,LR,BV,ASME,GOST
Model Number: PN-NP-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Normal standard exporting packing
Delivery Time: 2-3 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 70 sets per year
Contact Now
Detailed Product Description
Features: Energy Saving Name: PSA Nitrogen Generator
Certificates: CE,ABS,CCS,BV,DNV,LR, Pressure: 8-10 Bar
Purity: 95%-99.9995% Dew Point: -40 - 70℃
Adsorbent: CMS
High Light:

sa nitrogen plant

,

psa nitrogen gas generator

,

Beverage Processing PSA Nitrogen Generator

Energy Saving PSA Nitrogen Generator For Food And Beverage Processing


PSA Nitrogen Generator Description :

1. Energy-saving
2. 20 years Working life
3. Automatic operating


NO Item Notes
1 Nitrogen High purity 99.9995%
2 Energy Excellent energy-saving
3 Working life >20 years
4 Operating method Fully automatic
5 Certificates CE,TUV,,CCS approved



PSA technology allows nitrogen molecules to be isolated from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS), the adsorbent in the generator, retains all those molecules and only lets the nitrogen pass through to the outlet. While one tower is filled with CMS, another tower for working, around 58 seconds for swtiching, the one tower filled with CMS will use nitrogen for regeneration, mainly release the CO2, oxygen etc , SINCE gas nitrogen purity can produce from 95%-99.9995% .


PSA Nitrogen Generator  Technical features :


Principle: passage of compressed air through a bed of carbon molecular sieve (CMS) using presure swing adsorption technology, the most reliable on the market
N2 flow: 5-5000 Nm3/h
O2 purity: 1% to 10 ppm
On-line monitoring instrument
Digital hours counter Audible and visual maintenance indicator
Economy mode option: via pressure to enables the compressor shut & start-up when nitrogen supply is not required

Specifications :


No Model Capacity(Nm3/h) Purity Power(KW) Overall size(mm)

1
2
3
4

PN-3-39
PN-5-29
PN-5-295
PN-8-295

3
5
5
8

99.9%
99.5%
99%
95%



0.5



1800*1400*1500

5
6
7
8

PN-5-49
PN-8-39
PN-12-295
PN-15-29

5
8
12
15

99.99%
99.9%
99.5%
99%



0.5



1800*1400*1800

9
10
11
12

PN-10-49
PN-15-39
PN-25-295
PN-30-39

10
15
25
30

99.99%
99.9%
99.5%
99%



0.5



2000*1700*2250

13
14
15
16

PN-15-49
PN-22-39
PN-35-295
PN-45-29

15
22
35
45

99.99%
99.9%
99.5%
99%

0.5 2100*1800*2200

17
18
19
20

PN-20-49
PN-30-39
PN-50-295
PN-60-29

20
30
50
60

99.99%
99.9%
99.5%
99%

0.5 2200*1800*2200

21
22
23
24

PN-30-49
PN-45-39
PN-75-295
PN-88-29

30
45
75
88

99.99%
99.9%
99.5%
99%

0.5 2400*1900*2200

25
26
27
28

PN-40-49
PN-60-39
PN-100-295
PN-120-29

40
60
100
120

99.99%
99.9%
99.5%
99%

0.5 2500*2100*2500

29
30
31
32

PN-50-49
PN-70-39
PN-120-295
PN-140-29

50
70
120
140

99.99%
99.9%
99.5%
99%



0.5



2600*2200*2850

33
34
35
36

PN-60-49
PN-90-39
PN-160-295
PN-190-29

60
90
160
190

99.99%
99.9%
99.5%
99%



0.5



2800*2200*2500

37 PN-80-49 80 99.99% 0.5
... ... ... ... ... ...
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly


PSA Nitrogen Generator Application :

Nitrogen widely used following field :
Metal processing and laser cutting
Pharmaceuticals
Electronics
Food and beverage processing and storage
