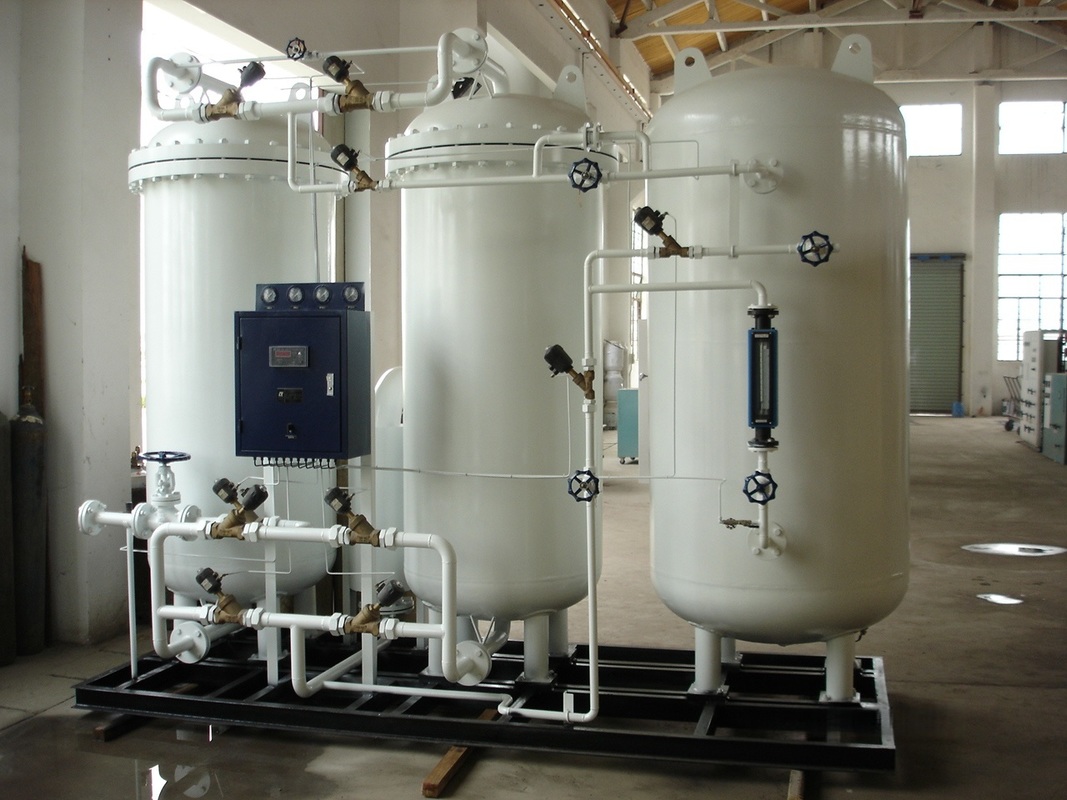

Smart Size Portable PSA Nitrogen Gas Plant Automated Operation

Smart Size, Portable PSA Nitrogen Gas Production Plant

Mobile Nitrogen Gas Generator Application

PSA Nitrogen Generation System consists of Screw Air Compressor, air purification system, air buffer system, N2/O2 Separation system, N2/O2 buffer system.
Compressed air is purified through the air dryer and filters to a certain level for the main generator to work with. Air buffer is incorporated for a smooth supply of compressed air thus reducing the fluctuation of work demand for air compressors. The generator produces nitrogen with PSA (pressure swing adsorption) technology, a time-proven nitrogen generation method. The nitrogen of desired purity at 99% is delivered to nitrogen buffer tank for a smooth supply of product gas.
Nitrogen in the buffer tank is maintained at a specific pressure. It is adjustable for your needs downstream through a pressure regulator valve.

Applications.

1, Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing

and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic

material, copper process, metallic mesh, galvanized wire, semiconductor, etc.

2, Chemical and new material industries: For chemical material gas, pipeline blowing, gas

replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane

elastic fiber, rubber, plastic, tire, polyurethane, biological technology, intermediate, etc.

3, Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, and storage of

electronic products. Used in fields such as peak welding, circumfluence welding, crystal,

piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

4, Nitrogen Used in Food Industry

1) Beer, wine, fruit spirit, and edible oil: use N2 for holding tank, bottle blowing, and before

closing, capsule to remove O2. It can prevent oxidation, spoilage, and fading of noncarbonated

beverages and edible oil.

2) Puffed and fried food: N2 can prevent food from fluffy and flavor reversion caused by little water

in the bags. N2 also makes the shape and package beautiful, and food will not be crushed

in transportation.

3) Pastry, bakery food, and vitellus-pie: Flushing N2 inside the food bags can prolong freshness

time and prevent food from being metamorphosed and crushed in transportation.

4) Milk Powder and soybean milk powder: using little N2 can prevent or reduce the agglomerate

phenomenon of milk powder caused by long-time extrusion storage.

5) Cerea, nut, fruit, and vegetable: Flushing N2 can prevent pests from harming, and save little O2

can reduce the breathing rate of fruit to make the fresh effect more obvious.

6) Candy and snack foods: N2 is mainly suitable used in the airtight food bags

Psa Nitrogen Gas Plant Features

Easy Installation: Skid mounted for easy installation and movement;
Designed for extreme ambient conditions with extremely cold or hot temperatures;
Automatic operation, DCS communication available;
Both electrical and diesel power are available;
Customize the system to meet the customer's unique requirements.
Minimal Maintenance: The generator has highly-reliable valves and no other moving parts. Filter elements are easily replaced.
Low Cost: Independent research and development of high-efficiency control systems reduces air consumption and saves electric power.

Portable Nitrogen Gas Generator Details

Smart Size.

95%-99.9999% purity
3-5000Nm3/Hour capacity
Dew point: ≤-70
Air source pressure: 0.8-1.0Mpa
Nitrogen-making pressure: 0.1-0.75Mpa
Oxygen content:500ppm-3ppm
Water content:5-20ppm


Portable Nitrogen Gas Generator Specifications:
