Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou, China |
| Brand Name: | SINCE |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PSA Nitrogen Generator |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Material: | Carbon Steel/Stainless Steel | Name: | PSA Nitrogen Generator |
|---|---|---|---|
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Type: | Container Type | Application: | Industrial Usage |
| Highlight: | sa nitrogen plant,psa nitrogen gas generator,Container Type PSA N2 Generator |
||

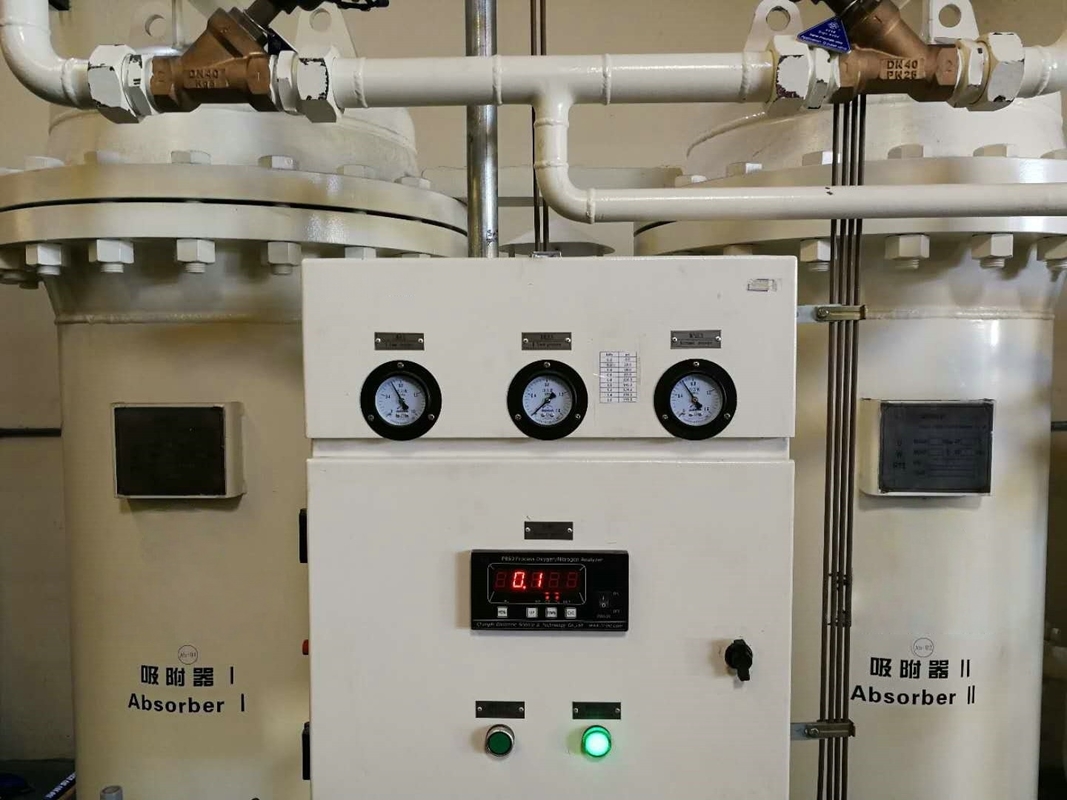

Container Type PSA Nitrogen Generator For Industrial Usage 5-5000 Nm3/H
PSA Nitrogen Generator Introduction:
PSA Nitrogen Generator uses pressure swing adsorption principles at normal temperatures, along with clean, compressed air as the raw material, and a carbon molecular sieve as the adsorbent, the adsorbent we use from Japan & German guarantee the working life over 20 years,
Due to oxygen and nitrogen different sieves, CMS under pressure adsorbing the oxygen pass through nitrogen, by pneumatic valve control PLC system to get required nitrogen purity .
PSA Nitrogen Generator Description:
|
NO |
Item |
Notes |
|
1 |
Nitrogen |
High purity 99.9995% |
|
2 |
Energy |
Excellent energy-saving |
|
3 |
Working life |
＞20 years |
|
4 |
Operating method |
Fully automatic |
|
5 |
Certificates |
CE,TUV,,CCS approved |
PSA Nitrogen Generator Benefits
· German Technology - We have German collaboration for our technology and have fine tuned this
technology to gain proprietary advantages in several key areas.
· Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation
and no personnel are required for operating the Gas plant.
· Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by
optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.
PSA Nitrogen Generator Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
More reliable:
* standardized air separation systems based on proven state of the art technologies in history of many
years application in fields.
* Simplified engineering design idea with much less moving parts, guarantees maximum reliability and
minimal maintenance
More economical:
* More advanced and more economical air separation modules.
* REFLUX composition control system reduces air consumption capacity, saves energy cost.
* Patented Energy Efficiency System (EES) enables our systems to produce product gases based on
actual demand.
More convenient:
* Diversification monitoring and control system enables parameters of capacity, purity, and pressure
of product gases online display on panel screen, gives running problem alarm, and reminds of
maintenance.
* Turn-key solution and pre-commissioned.
* Skid mounted design, easy installation.
