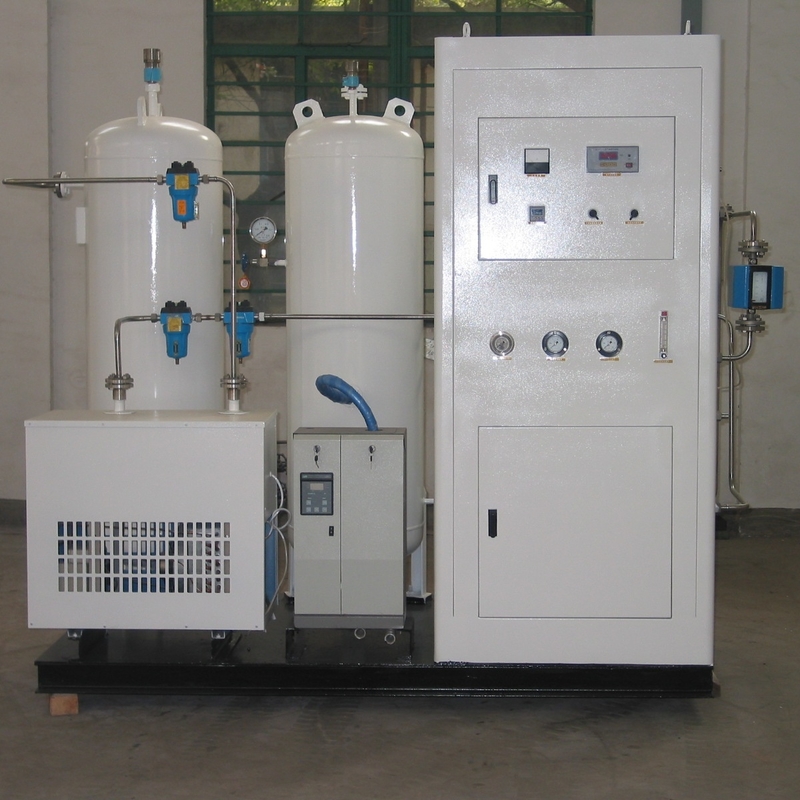

PSA Nitrogen Generator 5-5000 Nm3/h for Anneal Protection

PSA (Pressure Swing Adsorption) technology with high purity levels is preferred for applications including:

• Metal processing and laser cutting
• Pharmaceuticals
• Electronics
• Food and beverage processing and storage

PSA Technology is a mature technology dating back to the 1970s with thousands of plants operating worldwide. The process works by separating nitrogen from air (78% nitrogen, 21% oxygen) through adsorption of oxygen using Carbon Molecular Sieves (CMS).

Step 1: Adsorption - Prefiltered compressed air passes through a CMS-filled vessel where oxygen is adsorbed, producing nitrogen.

Step 2: Desorption - When CMS becomes saturated, the process switches to another vessel while the saturated bed begins desorption.

Step 3: Regeneration - Nitrogen from the active vessel purges the saturated vessel to regenerate the CMS for the next cycle.

• Proven experience with over 1000 nitrogen generators supplied worldwide
• German technology collaboration with proprietary advantages
• Fully automated operation requiring no personnel

Note: For complete specifications and additional models, please contact SINCE Gas System Co., Ltd.

• Resource: Air
• Pressure: 5-10 bar
• Pressure dew point: ≤10°C
• Oil content: ≤0.003mg/m3
• Product nitrogen pressure: ≤9bar

• Extensive experience in manufacturing and supplying gas plants
• BV/ISO/CCS/TS certified for quality and safety
• Specialized in marine nitrogen generator manufacturing
• Excellent infrastructure with experienced engineering team
• Sophisticated R&D department for continuous improvement
