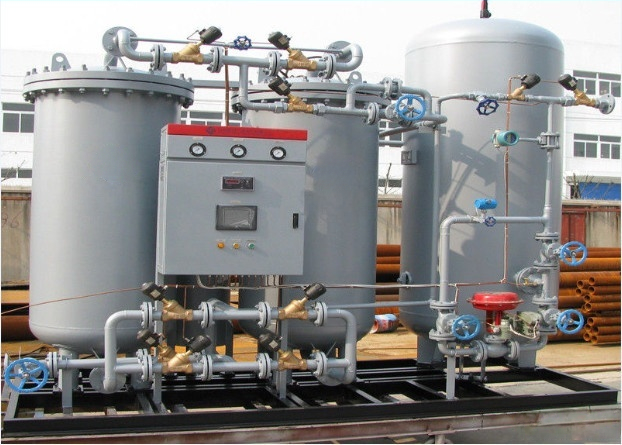

Nitrogen Generating System Psa Nitrogen Gas Generator For Aluminum Strip , Bar , Sheet

Nitrogen Generating System Psa Nitrogen Gas Generator For Aluminum Strip , Bar , Sheet

  • Nitrogen Generating System Psa Nitrogen Gas Generator For Aluminum Strip , Bar , Sheet
Nitrogen Generating System Psa Nitrogen Gas Generator For Aluminum Strip , Bar , Sheet
Product Details:
Place of Origin: Suzhou, China
Brand Name: SINCE
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /per year
Contact Now
Detailed Product Description
Material: Carbon Steel/Stainless Steel Certificates: BV,,CCS,ISO,TS
Capaicty: 5-5000 Nm3/h Purity: 95%-99.9995%
Dew Point: -70 ℃ Operate Power: 1 KW
Application: Aluminum Strip,sheets,bar Industry
Highlight:

psa nitrogen generation system

,

psa nitrogen gas generator

,

BV Psa Nitrogen Gas Generator



Nitrogen Generating System Psa Nitrogen Gas Generator for Aluminum Strip , Bar , Sheet





PSA nitrogen generator for aluminum Industry:



1).Purity:95%-99.9995%
2).Capacity:5~3000Mm3/h

3).Outlet Pressure:0.1-0.7Mpa(Adjustable)
4).Low compressed air consumption
5).Durable components



Working Principle:

PSA nitrogen making uses of the air as its raw material. By use of the selective absorption character of carbon molecular sieve, this process separates nitrogen and oxygen on the basis of the principle that pressurizationgives absorption and depressurization gives desorption.



Technical Characteristic:



1.  (PSA) nitrogen generator fully incorporates German technique for nitrogen generation and molecular sieve filling process so that recycling rate of molecular sieve is maximized and pulverization rate is minimized. As a result, life cycle of entire machine can be over 10 years.



2. (PSA) nitrogen generator incorporates home and abroad technique obtained over the years in the industry. Adjustable and detachable absorption tower has been successfully developed and introduced

at the heart which influences life cycle of molecular sieve so that the molecular sieve always operates in stable and static condition. This eliminates for the industry mechanical wearing which is aroused from

long term pressure loading against molecular sieve. This will not only retain the tensile strength of molecular sieve, but also the corrected ratio of stacking density of molecular against volume of

absorption tower remains zero.



3. Based on inherent features of gases, (PSA) nitrogen generator has successfully incorporated vortex emission discharge. The adoption of such unit enables timely and effective replenishment of regenerated gases for molecular sieve so that gas consumption rate is significantly reduced and standby duration of air compressor has been extended under the same conditions. The entire process of discharge and replenishment is completed within 15 seconds.



4. On request,  (PSA) nitrogen generator can be fully automatic. Customers can realize 24-hour control and adjustment through remote control system startup, shutdown, flow rate, gas purity, air pressure, nitrogen pressure and absorption tower working pressure. Nonconforming nitrogen will be automatically discharged so that entire machine can fully realize energy saving and reduction in consumption.




Technical Indexes:


Nitrogen Output:5~3000Nm³ / h
Nitrogen Purity :  ≥ 99.9995%
Oxygen Content:  ≤ 5 ppm
Carbon  Dioxide Content: ≤  1  ppm
Dew Point:  ≤ -70 ºC



Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



.
