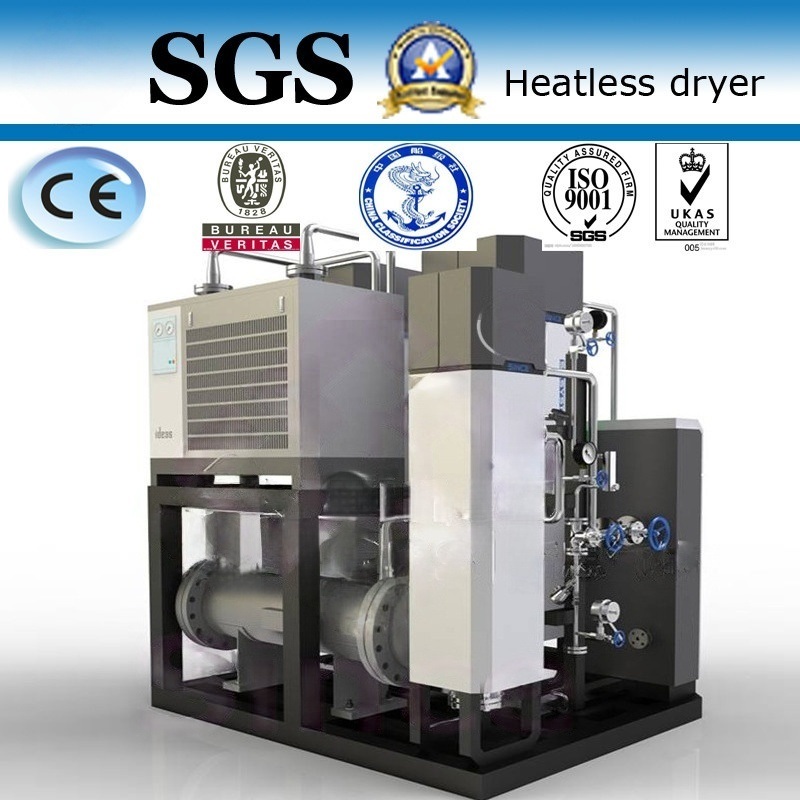

Heatless Regenerative Desiccant Dryers System 5-5000Nm3/H Capacity

Heatless Regenerative Desiccant Dryers System 5-5000Nm3/H Capacity

    • Heatless Regenerative Desiccant Dryers System 5-5000Nm3/H Capacity
  • Heatless Regenerative Desiccant Dryers System 5-5000Nm3/H Capacity

    Product Details:

    Place of Origin: Suzhou,China
    Brand Name: SINCE GAS
    Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
    Model Number: PA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiate
    Packaging Details: Exported wooden case
    Delivery Time: 2 months after received down payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Material: Carbon Steel/Stainless Steel Type: Desiccant
    Dew Point: -60 ℃ Operate Type: Fully Automatic
    State: Brand New
    High Light:

    Regenerative Desiccant Air Dryer

    ,

    Refrigerated Compressed Air Dryer



    Regenerative Heatless Desiccant Dryers System 5-5000Nm3/H Capacity





    Descriptions



    SINCE Series Heatless compressed Air Dryer is a kind of simple, reliable and economical method for

    removing water vapor from compressed air. The normal outlet pressure dew point is -40℃, lowest

    pressure dew point can be -70℃.



    the SINCE Series Heatless compressed Air Dryer is ideal for applications where compressed air lines

    are exposed to blew zero ambient temperatures, or where special processes require air at an extremely

    low relative humidity. This unit provides instrument quality air and is designed for maximum reliability

    and long, trouble-free service.



    the SINCE Series Heatless regenerative Air Dryer is based on pressure-swing

    adsorption technology. There are two desiccant towers filled with activated alumina, as saturated air

    flows up through the tower , its moisture content adheres to the surface of the activated alumina beads.

    The dry air is then discharged from the tower into the distribution system.



    After 5 minutes of operation on one tower the flow is switched to the other tower through the use of

    a timed system of directional valves. A portion of dried compressed air is diverted through an orifice,

    expanded to atmospheric pressure, and directed into the regenerating tower, where the moisture

    accumulated during the drying cycle is stripped off and purged to the atmosphere.Standard Features

    Reliable Timed controller Fieldproven over time, this design and technology maintain precise control

    over all switching and purge valve functions.



    High quality desiccant High quality, extra quantities of activated alumina is respectively filled in each

    tower.



    Pressure Gauges Located on each tower, provide visual indication of pressure during drying and

    regeneration processes.



    Product clean&pure compressed air

    Pressure:≤9bar

    Normal pressure dew point:≤-40 to-70℃

    Capacity :5-5000Nm3/H

    During the last 10 years,about 98% old customers firmly choose SINCE



    Why they always choose SINCE?



    Many years of experience and expertise in manufacturing and supplying gas plants;

    ,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

    company who got ,TS (Manufacture License of special equipment)

    CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

    generator.

    Excellent infrastructure set up teamed by experienced and qualified engineers.

    Sophisticated and developed R&D wing in assistance for installation and use of plants.
