Stainless Steel Regenerative Desiccant Dryers External 5-5000Nm3/H Capacity

Stainless Steel Regenerative Desiccant Dryers External 5-5000Nm3/H Capacity

Stainless Steel Regenerative Desiccant Dryers External 5-5000Nm3/H Capacity

Product Details:

Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PA-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Material: Stainless Steel Name: Regenerative Desiccant Dryers
Capacity: 5-5000Nm3/h Dew Point: -70℃
State: Brand-new Operation Method: Fully Atuomatic
Function: Lower Down Dew Point Application: External

Stainless Steel Regenerative Desiccant Dryers External 5-5000Nm3/H Capacity

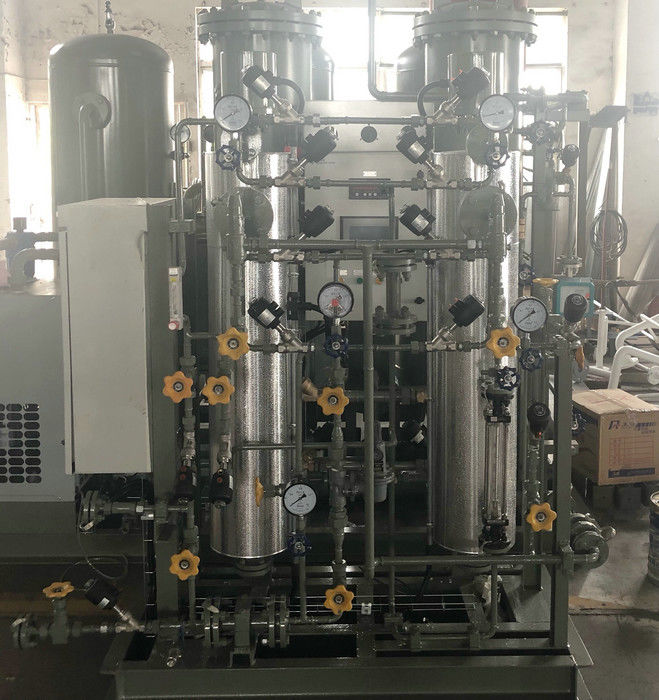

Regenerative Desiccant Dryers Descriptions



Regenerative Desiccant Dryers includes an external electrical heater to heat dry purge air for

desiccant regeneration. Heating allows the dryers to consume only 6% of the dried compressed air volume

 for this purpose significantly less than is required for heatless air dryers. The flow capacity is available

from 0.7 to 510m3/min,the outlet pressure dew point is - 40 deg c to -70 deg

.

High quality desiccants



High quality, extra activated alumina is respectively filled in each tower

Controller Reliable Timed controller Field proven over time, this design and technology maintain precise

control over all switching and purge valve functions. Opional for  PLC controller,PLC Controlling system

executes and monitors all dryer functions,

7 Touch screen panel displays dryer status.

Pressure Gauges

Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and

regeneration processes.



Regenerative Desiccant Dryers details



Material: Stainless Steel Name: Regenerative Desiccant Dryers
Capacity: 5-5000Nm3/h Dew Point: -70℃
State: Brand-new Operation Method: Fully Atuomatic
Function: Lower Down Dew Point Application: External



Pressure:≤9bar

Normal pressure dew point:≤-40— -70℃

Capacity :5-5000Nm3/H
