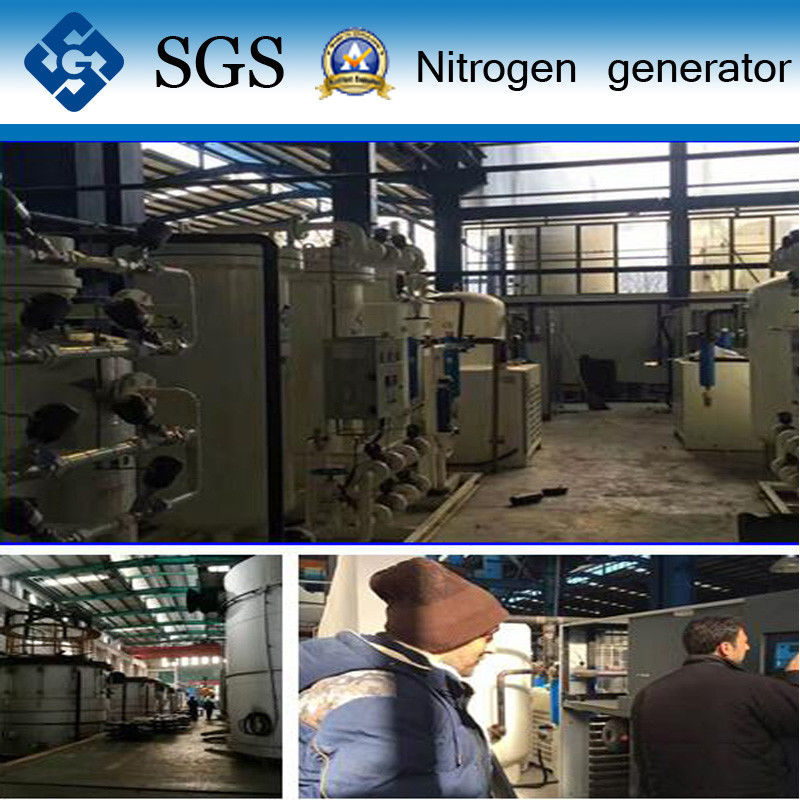

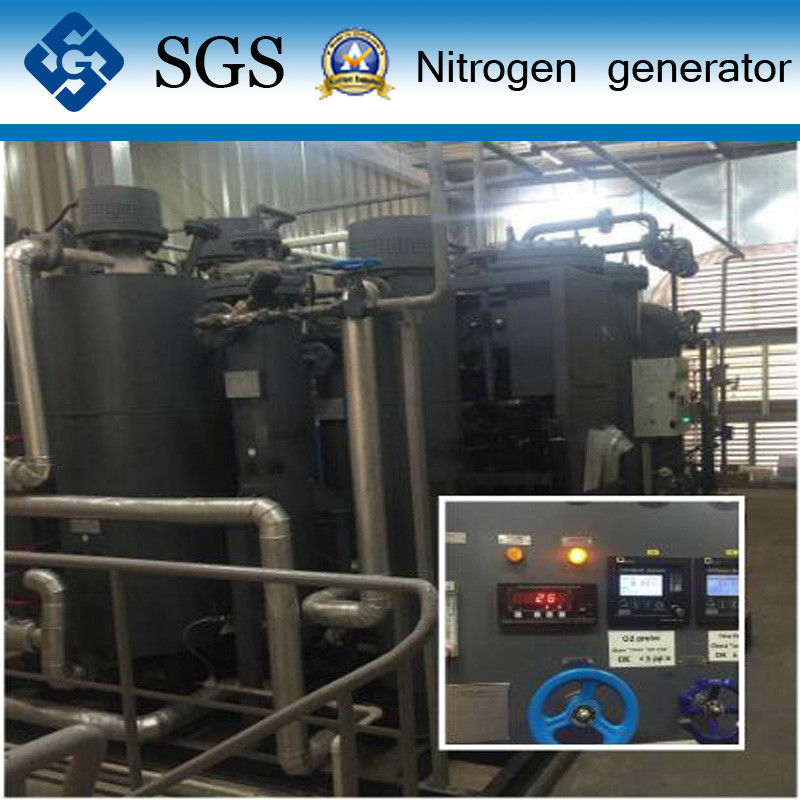

Fully Automatic Pressure Swing Adsorption Nitrogen Generation System
| Material: | Carbon Steel | Certificates: | CE,ABS,ASME,BV |
| Purity: | 99.99% | Application: | Wire, Fastener Annealing |
| Field: | Heat Treatment | Color: | Grey/white |
| Design code: | ASME/CE/GB | ||
| High Light: | fully automatic PSA nitrogen generator,pressure swing adsorption nitrogen system,industrial nitrogen generation system |
||
High purity nitrogen generator for wire/fastener annealing production line
On site PSA nitrogen generator principle:
The pressure swing adsorption (PSA) technology employs the basic principle of air separation at ambient temperatures by using carbon molecular sieve (CMS; a material that adsorbs oxygen to leave a rich stream of nitrogen).
Technical features :
Principle: passage of compressed air through a bed of carbon molecular sieve (CMS) using presure swing adsorption technology, the most reliable on the market
N2 flow: 5-5000 Nm3/h
O2 purity: 1% to 10 ppm
On-line monitoring instrument
Digital hours counter Audible and visual maintenance indicator
Economy mode option: via pressure to enables the compressor shut & start-up when nitrogen supply is not required
Specifications:
| No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 | 2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 | 2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 | 2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 | 2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
| 37 | PN-80-49 | 80 | 99.99% | 0.5 | |
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
| ... | ... | ... | ... | ... | ... |
| Note:More news please free to contact Joshining Energy & Technology Co.,Ltd or send email to us directly | |||||
Why Joshining?
-COST SAVINGS
You can save Nitrogen costs by generating your our nitrogen on-site, produce your own nitrogen , payback only couple of months .
Save on:
- Transporation Costs
- Bulk Liquid Evaporation Loss
- Renting costs
- Handling and Purchasing Costs
- Convenient
Produce your own nitrogen for production line , demand, to avoid transporation fault cause stop production line problems.
Application :
Nitrogen widely used following field :
Metal processing and laser cutting
Electronics
Food and beverage processing and storage
