Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | China |
| Brand Name: | SINCE-GAS |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PSA Nitrogen Generator |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | The normal packing is wooden box, if export to Europe country.the wooden box will be fumigated. if the inner packing is too tighter, we may use PE film to wrap the machine.or according to customer's special requirements. |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | T/T or west union,L/C |
| Supply Ability: | 1,000 sets per year |
| Warranty: | 1 Year | Usage: | Nitrogen |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Voltage: | 220V/50Hz | Production Rate: | 95-99.9995% |
| Capacity: | 5~5000Nm3/hr | Power Consumption: | Low Power Consumption |
| High Light: | PSA Nitrogen Gas Plant,Industrial PSA Nitrogen Plant,PSA Nitrogen Gas Generator 220v |
||

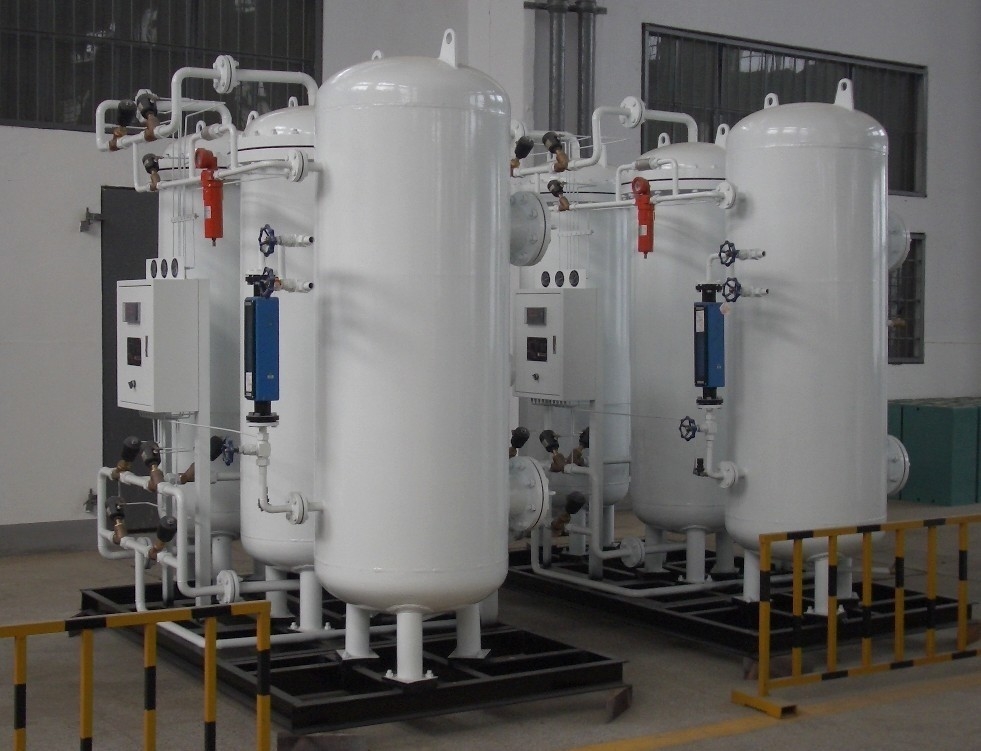

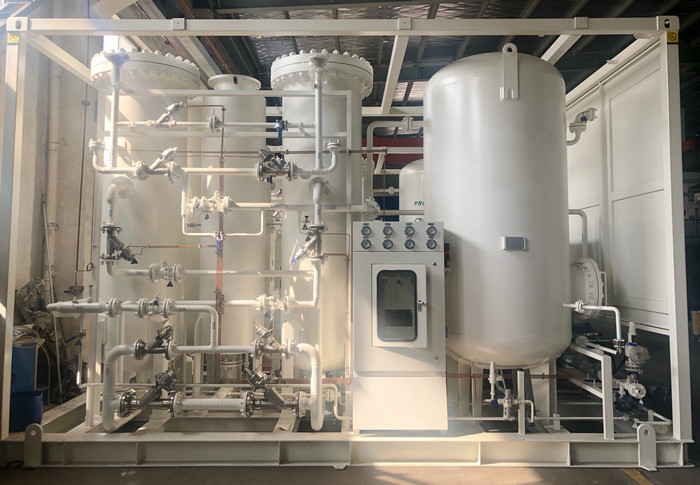

Industrial PSA Nitrogen Generator Carbon Molecular Sieve Adsorbent
PSA Nitrogen Generator flaw
(1). air compressing system, this system includes an air compressor, and air buffer tank, the purpose of this system is to compress the normal pressure air to high-pressure air.
(2). air purification system, The system includes a degreaser, refrigerated (adsorption) dryer, ultrafilter, and active carbon filter, the purpose of this system is to remove dust, water, and oil in the compressed air to make sure the compressed air will be clean and dry in the following steps.
(3). air buffer tank. This system includes an air-compressing buffer tank, the purpose of this system is to store the compressed gas to ensure a stable supply of gas for the O2/N2 separation system, mainly composed of air tanks and valves.
(4). Adsorption separation system, this system includes an adsorber tower, Program control valve, controller, and analysis meter, also this is the most important system for all the production lines, the purpose of this system is to produce N2 through PSA technology, composed of two adsorption towers filled with carbon molecular sieve and automatic control valves
PSA Nitrogen Generator Benefits
· German Technology - We have German collaboration for our technology and have fine-tuned this
technology
to gain proprietary advantages in several key areas.
· Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation
and no
personnel are required to operate the Gas plant.
· Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by
optimum
Design to efficiently use the compressed air and maximize production of Nitrogen gas.
PSA Nitrogen Generator Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Technical parameters:
Resource: Air
Pressure:5-10 bar
Pressure dew point:≤10degree
Oil content ≤0.003mg/m3
Air -change with the Nitrogen and oxygen
Product nitrogen
Pressure:≤9bar
Normal pressure dew point:≤-40degree
Purity:95%-99.9995%
Nitrogen capacity:5-5000Nm3/H
During the last 10 years, about 98% old customers firmly choose SINCE
PSA Nitrogen Generator Details
