Household Use PSA Nitrogen Generator Liquid Nitrogen Production Plant

Household Use PSA Nitrogen Generator Liquid Nitrogen Production Plant

  • Household Use PSA Nitrogen Generator Liquid Nitrogen Production Plant
Household Use PSA Nitrogen Generator Liquid Nitrogen Production Plant
Product Details:
Place of Origin: Suzhou, China
Brand Name: SINCE
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /per year
Contact Now
Detailed Product Description
Material: Carbon Steel/Stainless Steel Certificates: BV,,CCS,ISO,TS
Capaicty: 5-5000 Nm3/h Purity: 95%-99.9995%
Dew Point: -70 ℃ Operate Power: 1 KW
Application: Household Industry
High Light:

psa nitrogen generation system

,

psa nitrogen gas generator

,

5000 Nm3/h Liquid Nitrogen Plant

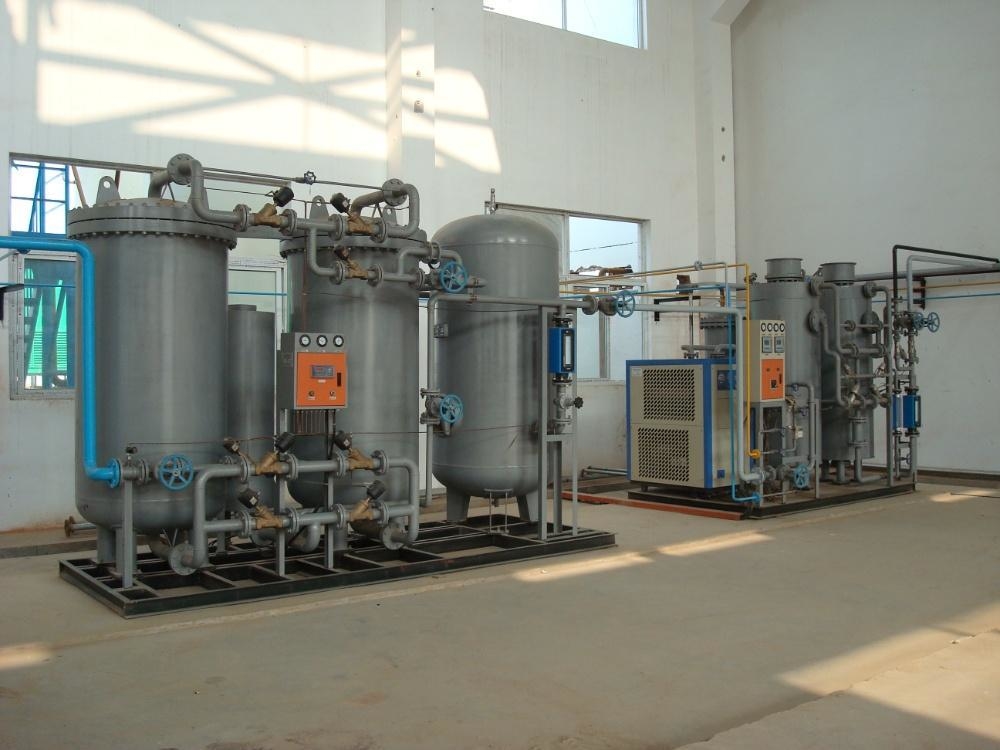

Household Use PSA Nitrogen Generator Liquid Nitrogen Production Plant





Household industry / Air conditioning / heat exchanger high purity Nitrogen generator system



1.PSA nitrogen generator for household Industry:

The Whole Nitrogen Generation System Includes :

Air Compressor

Air Dryer & Precision Filters

Air tank

Nitrogen Generator

Gas buffer tank

Nitrogen storage vessel



2.Principle:

When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and absorptive

capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is compressed to

0.8~1.0MPa, air source enters in pressure swing absorption tower for separation after being purified

through dry and oil water separation process (filter). Oxygen molecules are diffused and absorbed in

carbon molecular sieve under pressure.

Non absorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged

and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.



3. Application:

 1)Food preservation by filling in nitrogen, agitation of beverages.

 2)Nitrogen protection and filling of injection solution,transfusion and oral liquid in pharmacy industry

 3)Chemical and new material industries: chemical ,urethane elastic fiber, rubber, plastic, tyre,

polyurethane, biological technology, intermediate , etc.

 4) Electronic industry:  peak welding, circumfluence welding, piezoelectricity, electronic porcelain,

electronic copper tape, battery, electronic alloy material , etc.



4. Main Technical Parameters :



Nitrogen Capacity/Flow rate: 3-3000Nm³/h



Nitrogen Purity: 95%-99.9995% (95%, 97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.999%, 99.9995%)





Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly
