Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou, China |
| Brand Name: | SINCE |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Material: | Carbon Steel/Stainless Steel | Certificates: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew Point: | -70 ℃ | Operate Power: | 1 KW |
| Application: | Nonferrous Metal | ||
| High Light: | sa nitrogen plant,psa nitrogen gas generator,Brazing PSA Nitrogen Generator |
||

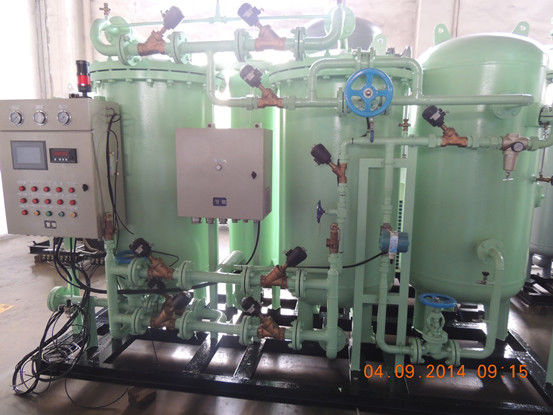

Aluminum / Copper / Stainless Steel Brazing PSA Nitrogen Generator System
High purity Nitrogen generator system/plant for Aluminum/copper/stainless steel brazing
Product Profile
The advantage of low energy consumption of freezing compressed air dryer has been known by vast users,and adsorption compressed air dryer can reach low dew point.However,limitation of dew-point temperature of freezing compressed air dryer and high energy consumption of adsorption compressed
air dryer are hot potatoes puzzling manufacturers of compressed air dryers all the time. Therefore,Tuohang Electric has successfully developed dry purification equipment SINCE type combined low dew- point compressed dryer of new generation.
SINCE combined low dew- point compressed dryer is the combination of freezing drying technology and absorption drying technology,which breaks through simple collusion way of freezing device and absorption device,so that advantages of freezing devices and absorption device are developed fully.And then you can save evergy consumption,so that you investment can be taken back as soon as possible.
SINCE combined low dew-point compressed dryer is the unique dry device through appraisal of new products among products of the same kind.
Product Features
High performance
With stable outlet temperature,it can gain stable outlet compressed air with low dew point and and high quality,which can remove impurities and moisture completely.
Signification energy saving
The working principle of low-temperature absorption and normal-temperature regeneration can reduce regenration air comsumption of absorbing agent(amount of regeneration air is=3%) and decrease power consumption of freezing compressed machine from 20% to 40%.
Simple maintenance
Reduce water content of compressed air through freezing system at first,so as to extend life of absorbing agent,to lengthen work cycle,and to reduce valve friction.
Space Saving
With compact structure design,when compared with simple series system of freezing devices and absorbing devices,it saves more spaces.
Optimal pressure dew point
Design pressure dew point as -40ºCor 70ºCaccording to user requirements.
Nitrogen Capacity/Flow rate: 3-3000Nm³/h
Nitrogen Purity: 95%-99.9995% (95%, 97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.999%, 99.9995%)
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Contact Person: Jojo
Tel: +8613862022817
