Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou, China |
| Brand Name: | SINCE |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Material: | Carbon Steel/Stainless Steel | Certificates: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew Point: | -70 ℃ | Operate Power: | 1 KW |
| Application: | For Steel Pipe Annealing | ||
| High Light: | sa nitrogen plant,psa nitrogen gas generator,CE nitrogen gas equipment |
||

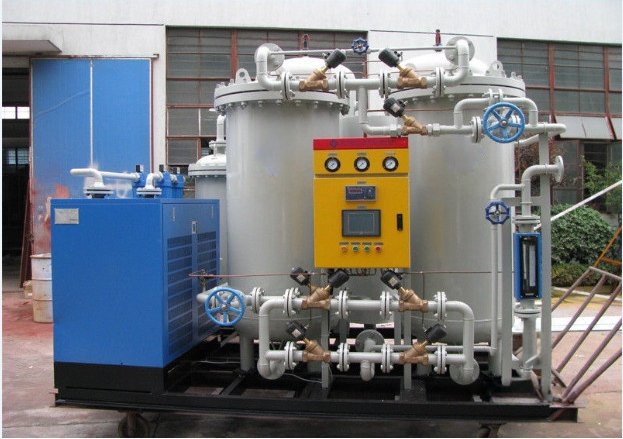

PSA nitrogen gas equipment approved /CE certificate for steel pipe annealing
Technical index:
1) Nitrogen Capacity: 1 - 2000Nm3/h
2) Nitrogen purity: 95 - 99.9995%
3) Initial nitrogen pressure: 0.05 - 0.8Mpa (Customized available)
4) Dew point: ≤-45℃
Introduction:
It uses carbon molecular sieve as sorbent, produces nitrogen by making use of the PSA principle.
Under certain pressure, carbon molecular sieve has different oxygen/nitrogen adsorption capacity, i.e. much more oxygen adsorption capacity than nitrogen adsorption capacity.PLC controls pneumatic
valve open/close to realize two towers alternate adsorption and desorption as per pressure change, carries out oxygen/nitrogen separation and produces nitrogen with desired purity.
Benefits of our PSA Nitrogen Generators:
· Experience - We have supplied over 1000 Nitrogen Generators all over the world.
· German Technology - We have German collaboration for our technology and have fine tuned this
technology to gain proprietary advantages in several key areas.
· Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation
and no personnel are required for operating the Gas plant.
· Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by
optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Technical Features:
1.High purity.
The 99.9995% nitrogen gas is produced in one-time procedure without
purification devices.
2.Excellent energy-saving
Unique distribution of gas flow, advanced energy-saving technology,
excellent molecular sieve make HUILIN Nitrogen Generator energy-saving
achieve 10~20% than other do.
3.steady-going, long life-span
Unique clamping cylinder technology effectively extending the life of
molecular sieve.
4.High degree of automation
The automatic control technology could switch machines with one key,
and have remote and centralized operation with nobody control.
Application:
Steel pipe Industry
