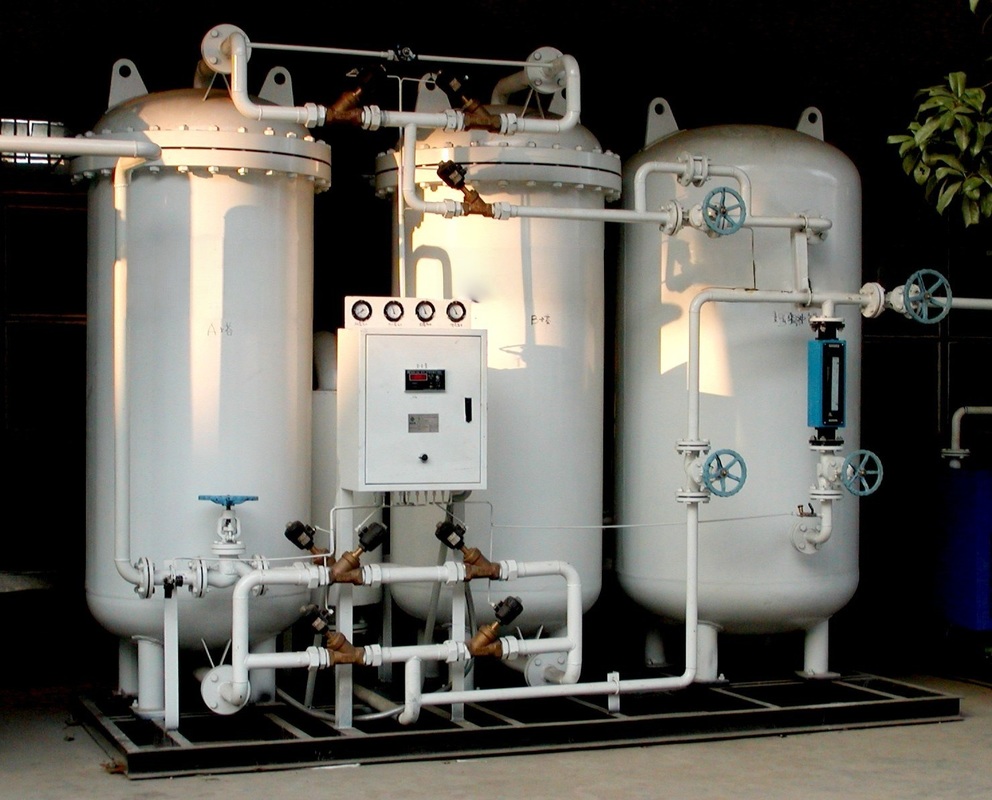

Fully Automatic High Purity 99.9995% Hydrogen Dryer Equipment for Chemical
| Material: | Carbon Steel/stainless Steel | Capacity: | 50-5000Nm3/h |
| Dew point: | -70℃ | State: | Brand-new |
| Operation method: | Fully Atuomatic | Application: | Hydrogen Desiccant Dryer For Chemical |
| High Light: | Desiccant Air Dryers,Refrigerated Compressed Air Dryer,High Purity Hydrogen Dryer Equipment |
||
Fully Automatic High Purity 99.9995% Hydrogen Dryer Equipment for Chemical
Hydrogen dryers
Hydrogen dryer for hydrogen-cooled generators is a dual-absorber unit that continuously removes moisture from recirculated hydrogen, keeping the internal components of the turbine in a completely
dry hydrogen atmosphere. The unit uses regenerative type desiccant and is fully automatic
in operation. It is heat reactivated with embedded electric heaters.
Accomplishes reactivation with a completely closed-circuit system, thereby eliminating any purge loss
or infiltration of atmosphere into the system.
High quality desiccants
High quality, extra activated alumina is respectively filled in each tower ;
Controller Reliable Timed controller Field proven over time, this design and technology maintain precise
control over all switching and purge valve functions.
Opional for PLC controller,PLC Controlling system
executes and monitors all dryer functions;
7 Colorful Touch screen panel displays dryer status.
Pressure Gauges Stainless steel gauges, located on each tower, provide visual indication of
pressure during drying and regeneration processes.
Product clean&pure compressed air
Pressure:≤5bar
Normal pressure dew point:≤－70℃
Capacity :50-5000Nm3/H
