Place of Origin: | Suzhou, China |
Brand Name: | SINCE |
Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Model Number: | PN |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiate |
Packaging Details: | Exported wooden case |
Delivery Time: | 2 months after received down payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets /per year |
Material: | Carbon Steel/Stainless Steel | Certificates: | BV,,CCS,ISO,TS |
---|---|---|---|
Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
Dew Point: | -40 ℃ | Operate Power: | 1 KW |
Application: | Used For Oil Tanker, Chemical Tanker Marine Industry | ||
Highlight: | sa nitrogen plant,psa nitrogen gas generator,PSA Nitrogen Generator Container Type |

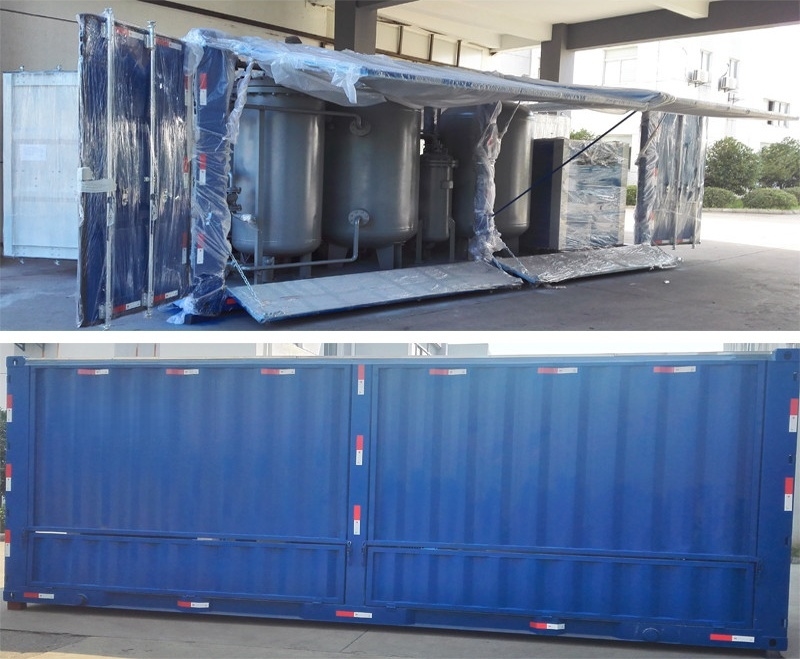

Container Type PSA Nitrogen Generator For Marine Industry and Oil Tanker
Description:
NO |
Item |
Notes |
1 |
Nitrogen |
High purity 99.9995% |
2 |
Energy |
Excellent energy-saving |
3 |
Working life |
>20 years |
4 |
Operating method |
Fully automatic |
5 |
Certificates |
CE,TUV,,CCS approved |
Introduction:
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than
the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.
When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,
the N2 gas is absorbed and O2 is obtained by separation.
The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get
into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .
When one tower produces N2, another tower release the N2 by reducing the pressure to get the
renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration
to output N2 continuously.
Benefits of our PSA Nitrogen Generators:
· Experience - We have supplied over 1000 Nitrogen Generators all over the world.
· German Technology - We have German collaboration for our technology and have fine tuned this
technology to gain proprietary advantages in several key areas.
· Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation
and no personnel are required for operating the Gas plant.
· Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by
optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.
Specifications:
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
... |
... |
... |
... |
... |
... |
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
Technical Features:
Low energy consumption,less cost,strong adaptability,rapid nitrogen production and adjustable
purity.Perfect technique process design and optimal using effect.
Modular structure design and saving of floor space.
Convenient operation,stable performance, high automation and unattended operation.
Reasonable inner structure,uniform distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.
Application:
Oil tanker ship
Chemical tanker ship
LNG ship
Oil&Gas project
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
