Automatic PSA O2 Generator For Hospital Drug Filling Production Line

Automatic PSA O2 Generator For Hospital Drug Filling Production Line

  • Automatic PSA O2 Generator For Hospital Drug Filling Production Line
Automatic PSA O2 Generator For Hospital Drug Filling Production Line
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Capacity: 5-1500 Nm3/h Purity: 90%-95%
Dew Point: -65℃ Operate Power: 1 KW
Operation: Fully Automatic Life Span: 8-10 Years
Consumption: Energy-saving Application: Hospital Drug Filling Production Line
Material: Carbon Steel/stainless Steel
High Light:

Hospital Drug Filling PSA O2 Generator

,

Automatic PSA O2 Generator

,

1KW Automatic Oxygen Generator

Automatic Oxygen Generator, PSA O2 Generator, For Hospital Drug Filling Production Line

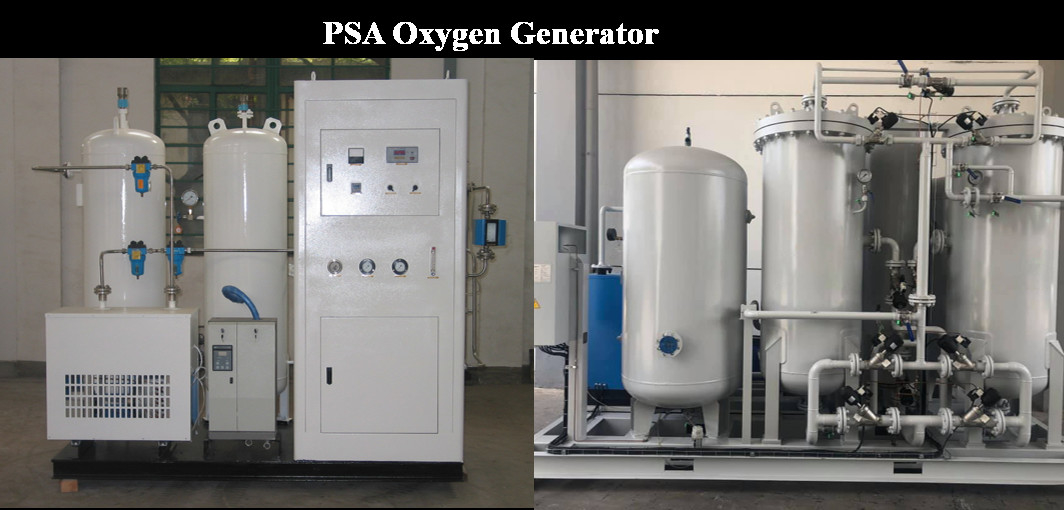

PSA Industrial oxygen generator



PSA (Pressure Swing Adsorption)


Technology is a revolution in Non-Cryogenic Air Separation and Oxygen Generation Technology that uses a special grade of ZMS (Zeolite Molecular Sieve).
The compressed air is passed through a Twin Tower PSA module interconnected with automatic changeover valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air will now come in contact with the bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are a special grade of adsorbent that has the property of preferential adsorption of nitrogen molecules. At a time one tower remains under the nitrogen production cycle, whereas the other tower undergoes regeneration which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen gas is sent to a surge vessel where the minimum pressure will be maintained with the help of a Back Pressure Regulator





1. Specification



Model No

PO

Capacity

2~240Nm3/h

Purity

50~95%

Initial Pressure

0.05~0.55Mpa (Customized)

DewPoint

≤-45°C (Customized)



2. Principles:

It uses a zeolite molecular sieve as a sorbent, producing oxygen using the PSA principle. Under certain pressure, zeolite molecular sieve has different oxygen/nitrogen adsorption capacity, i.e. much more nitrogen adsorption capacity than oxygen adsorption capacity. PLC controls the pneumatic valve open/close to realizing two adsorption towers' alternate adsorption and desorption as per pressure change, carries out oxygen/nitrogen separation, and produces oxygen with desired purity.



Quality Assurance and Service Commitment

1. 12 months quality warranty after acceptance.
2. Or 18 months’ quality warranty after the equipment is delivered to the site.
3. Lifetime maintenance service committed by our company after warranty time.
4. For domestic customers, within warranty, on-site service within 36 hours after the failure occurred.
5. Training in operation, maintenance, and failure removal.
6. 24x7x365 technical support.
7. Regular surveys and a reminder of maintenance in the schedule.
8. Lifetime accessories and wear parts on sale.
9. Providing remote instruction and training for free.

10. Spare parts and on-site service would be charged with the best price after the warranty period.

11. . Setting trace file for every sold product, quarterly survey for every sold product.



3. Applications:

1. Ferrous metallurgy: For electric furnace steel making, blast furnace iron making, cupola oxygen blasting and heating, and cutting, etc
2. Non-ferrous metal refineries can improve productivity, reduce energy costs, and protect our environment.
3. Water process: For oxygen aeration active mud process, reaeration of surface water. fish farming, industrial oxidation process, and humid oxygenation.
4. Others: Chemical industry production, solid garbage burning, concrete production, glass manufacturing...etc.

5. Customized equipment with pressure high upto 100bar, 120 bar, 150 bar, 200 bar, and 250 bar are available for cylinder filling.

6. Medcial-grade O2 gas can be obtained by equipping an extra purifying device for removing bacteria, dust, and odor.
