| Place of Origin: | Suzhou, China |
| Brand Name: | Joshining |
| Certification: | CE |
| Model Number: | VPSA-3000-93 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | according to customer needed equipment |
| Packaging Details: | wooden case |
| Delivery Time: | 5month |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300set per year |
| Process Form: | Vacuum Pressure Swing Adsorption （VPSA） | Purity: | 93±2% |
|---|---|---|---|
| Flow: | 3000m3 / H | Outlet Pressure: | ≥1barg |
| Unit Consumption Of Oxygen Production: | 0.36kW.h/Nm3~1.2kW.h/Nm3 | Warranty Period: | 15years+ |
| Colling Way: | Air-cooling， Water-cooling | Structure Of Absorption Tower: | Axial Flow, Radial Flow |
| Dew Point: | -20degree ~ -80degree | ||
| High Light: | 93% PSA Industrial Oxygen Generator,Metallurgy Industry PSA Oxygen Gener |
||

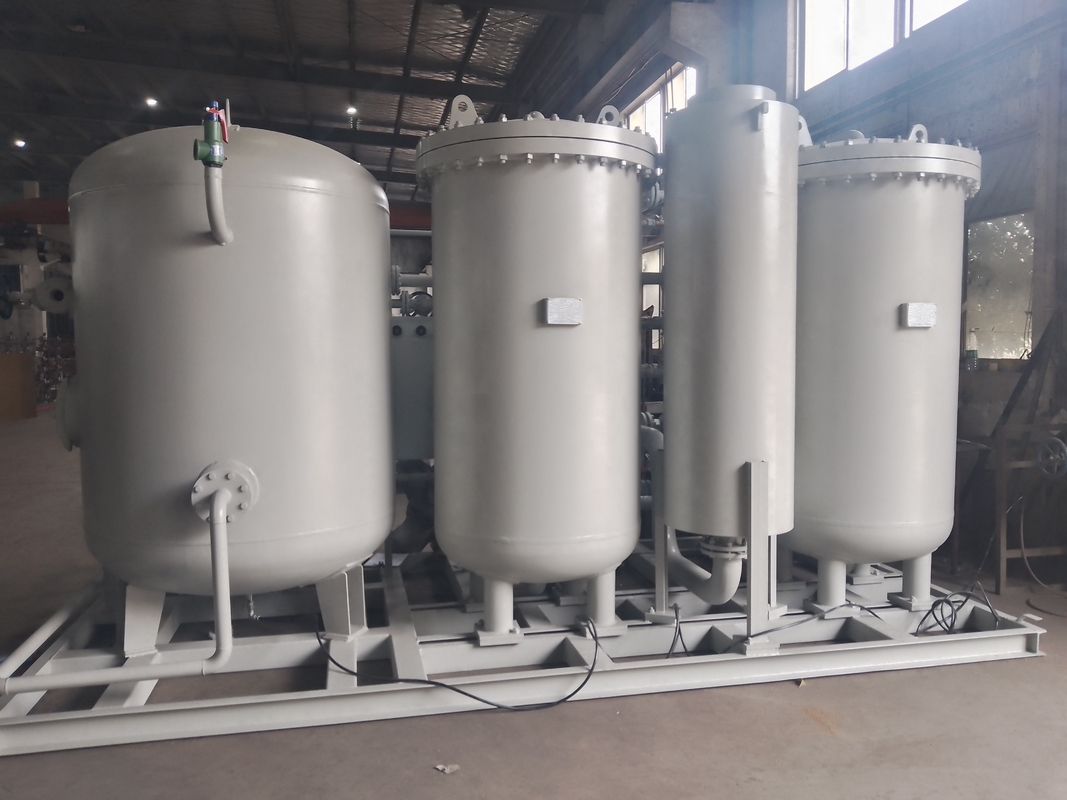

93% PSA Oxygen Generator, Metallurgy, And Non-Ferrous Industry
Process Description:
The PSA (Pressure Swing Adsorption) Oxygen Generator is an air separation unit that is based on a molecular sieve's selective adsorption of nitrogen from the air and can continuously generate pure oxygen with a purity of 90-95% at ambient temperature, then the adsorbed nitrogen can be desorbed by decreasing the adsorption tank pressure, realizing cycling adsorption-desorption operation.
Due to its low production cost and simple process, the PSA oxygen generator has been widely used in various industries such as metallurgy, chemical, environmental protection, construction materials, light industry, fishing, biotechnology, and many other fields.
Technical Parameters:
| 1. Process form: PSA, VSA, VPSA |
| 2. Structure of adsorption tower: Axial Flow, Radial Flow |
| 3. Flow range: 5Nm3/h - 5000Nm3/h |
| 4. Oxygen purity ≥ 90%-95% |
| 5. Oxygen output pressure 20KPa - 0.2MPa |
| 6. Annual operating rate > 98% |
| 7. The energy consumption of oxygen production is 0.36KW.h/Nm3 - 1.2KW.h/Nm3 (equivalent to pure oxygen) |
| 8. Adsorbent medium" Lithium base, Calcium base |
|
9. Cooling way: Water cooling, Air cooling 10. Dew Point: -20degree ~ -80degree |
Technical Characteristic:
*Reliable and economical oxygen supply
*The use cost is not high, low consumption of oxygen
*Site installation and construction cycle is short
*Equipment operation and maintenance cost is low
*Low cost of construction
*Safe and reliable, unattended
Service Way:
* Remote Hosting
*Equipment Lease
*Offer Gas On-site
*Upgrade Existing Oxygent Equipment
Applications:
We supplied to many customers in the country of Philippines, Russia, Myanmar, Indonesia, Ghana
