Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | China |
| Brand Name: | JOSHINING |
| Certification: | CE, GB, ASME |
| Model Number: | JO-sys400B |
| Minimum Order Quantity: | 1pieces |
|---|---|
| Price: | USD2580 |
| Packaging Details: | Normal exported cargon |
| Delivery Time: | 7-10days for order 1-3pieces |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 pieces per year |
| Power Type: | Hydrogen Fuel Cell | Application: | Riding, Transportation |
|---|---|---|---|
| Voltage: | 40-48V | Size: | 1580mm X610mm X 1050mm |
| Rated Speed: | 340r/min | Key Word: | Hydrogen Fuel Cell |
| Color: | White | MOQ: | 1piece |
| OEM ODM: | Yes | ||
| High Light: | Adult Road Riding Hydrogen Fuel Cell Power,E-Bike Hydrogen Fuel Battery 40V,40V Hydrogen Fuel Cell |
||

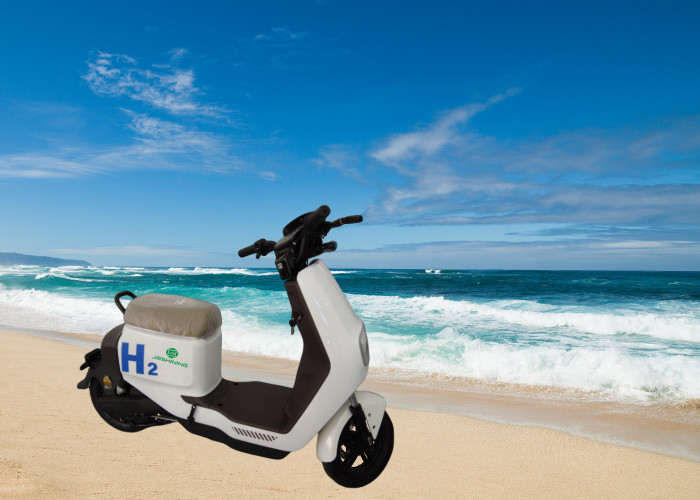

2023 new hydrogen fuel cell power e-bike for adult road riding and transportation
Introducing:
JO-sys400B hydrogen powered two wheeled vehicle (Hydrogen e-bike), the main source of energy is hydrogen energy, which is generated by the catalysis of hydrogen and oxygen in proton exchange membranes to power electric vehicles. The power system integrates fuel cell control, DC/DC control, and lithium battery BMS management internally; The system adopts an optimized energy allocation control strategy, which can quickly respond to changes in load power; Equipped with comprehensive fault protection and diagnostic functions, supporting fault self recovery and shutdown recovery; The system has reliable firmware upgrades and supports software version upgrades.
Parameters:
| Size | 1580mm x610mm x 1050mm |
| Wheelbase | 1210mm |
| Weight | 60 kg |
| Maximum design speed | 25 km/h |
| Endurance mileage | 70km |
| Electricity consumption per 100KM | 1.4kWh |
| Motor form | Permanent magnet |
| Rated speed | 340r/min |
| Rated continuous output power | 400 W |
| Under-voltage protection value | 42±0.5V |
| Over-current protection value | 25±1 A |
| Battery type | Hydrogen fuel cell |
| Rated voltage | 40-48V |
| Rated output power | 400 W |
| Hydrogen capacity | 67g |
| Carrying power | 480Wh/1500wh |
| Cooling way | Forced air cooling |
| Working temperature | 0~40℃ |
| Working humidity | 20~95% RH,No condensation |
| Storage temperature | -10 ~ 50 ℃ |
| Noise | ≤ 60dB |
| Colour | White |
| Material quality | Mental Stack |
| Function | Riding, Transportation |
