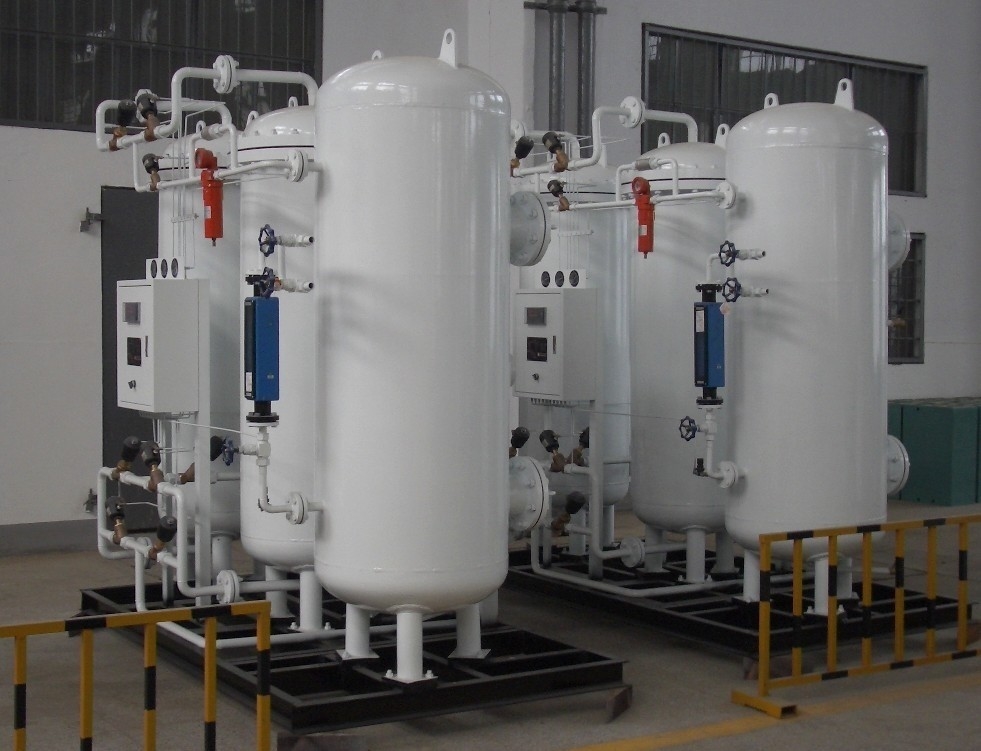

PSA Nitrogen Generator 5-5000 Nm3/h for Anneal Protection
| Name: | PSA Nitrogen Generator | Certificates: | /BV/ISO/CCS/TS |
| Capacity: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Discharge pressure: | 0.3-0.6 Mpa | Dew point: | -70 ℃ |
| Application: | Anneal Protection | ||
| High Light: | Anneal Protection PSA Nitrogen Plant,Large Capacity PSA Nitrogen Generator,5 Nm3/H PSA Nitrogen Generator |
||
| Attribute | Value |
|---|---|
| Name | PSA Nitrogen Generator |
| Certificates | /BV/ISO/CCS/TS |
| Capacity | 5-5000 Nm3/h |
| Purity | 95%-99.9995% |
| Discharge pressure | 0.3-0.6 Mpa |
| Dew point | -70 ℃ |
| Application | Anneal Protection |
PSA (Pressure Swing Adsorption) technology delivers high purity nitrogen for critical industrial applications including:
- Metal processing and laser cutting
- Electronics
- Food and beverage processing and storage

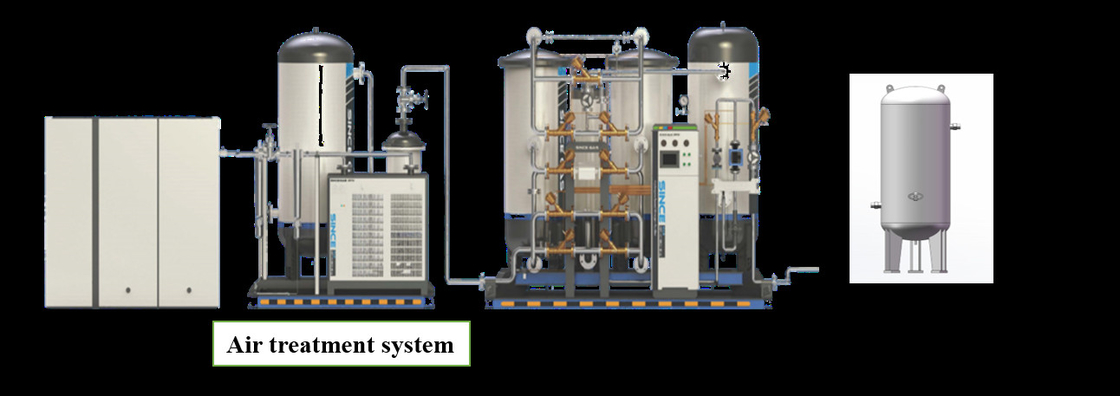

What is PSA Technology? A mature air separation method developed since the 1970s, utilizing Carbon Molecular Sieves (CMS) to adsorb oxygen and separate nitrogen from compressed air (78% nitrogen, 21% oxygen).
- Adsorption: Compressed air passes through CMS vessel, oxygen is absorbed, nitrogen emerges as product gas.
- Desorption: Upon CMS saturation, process switches to second vessel while first vessel regenerates.
- Regeneration: Produced nitrogen purges through saturated vessel to restore CMS adsorption capacity.
- Proven track record with over 1000 units installed worldwide
- German-engineered technology with proprietary enhancements
- Fully automated operation requiring no dedicated personnel
| No | Model | Capacity (Nm3/h) | Purity | Power (KW) | Overall Size (mm) |
|---|---|---|---|---|---|
| 1-4 | PN-3-39 to PN-8-295 | 3-8 | 95%-99.9% | 0.5 | 1800×1400×1500 |
| 5-8 | PN-5-49 to PN-15-29 | 5-15 | 99%-99.99% | 0.5 | 1800×1400×1800 |
| 9-12 | PN-10-49 to PN-30-39 | 10-30 | 99%-99.99% | 0.5 | 2000×1700×2250 |
| 13-16 | PN-15-49 to PN-45-29 | 15-45 | 99%-99.99% | 0.5 | 2100×1800×2200 |
| 17-20 | PN-20-49 to PN-60-29 | 20-60 | 99%-99.99% | 0.5 | 2200×1800×2200 |
| 21-24 | PN-30-49 to PN-88-29 | 30-88 | 99%-99.99% | 0.5 | 2400×1900×2200 |
Note: Complete specifications available upon request. Contact Joshining Energy & Technology Co.,Ltd for detailed information.
- Resource: Air
- Pressure: 5-10 bar
- Pressure dew point: ≤10°C
- Oil content: ≤0.003mg/m3
- Product nitrogen pressure: ≤9bar
- Extensive experience in gas plant manufacturing and supply
- CCS/TS certified for quality assurance and superior after-sales service
- Specialized in marine nitrogen generator production
- Advanced R&D capabilities with expert engineering support
