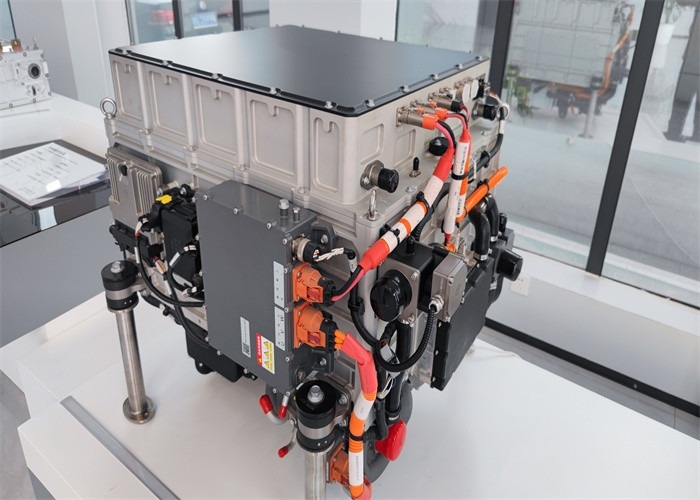

690*660*500mm 40kW Hydrogen Fuel Cell System 0 - 500A For Vehicle

690*660*500mm 40kW Hydrogen Fuel Cell System 0 - 500A For Vehicle

  • 690*660*500mm 40kW Hydrogen Fuel Cell System 0 - 500A For Vehicle
690*660*500mm 40kW Hydrogen Fuel Cell System 0 - 500A For Vehicle
Product Details:
Place of Origin: China
Certification: CE, GB
Model Number: JOVL
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $60000-70000
Packaging Details: Packaging suitable for export transportation
Delivery Time: 60days after payment
Supply Ability: 100sets/year
Contact Now
Detailed Product Description
Rated Power: 40kW Operating Voltage: 132-220VDC
Rated Current: 0-500A Application: Vehicle
Size: 690*660*500mm Standard: GB
Stack Material: Graphite Trade Term: EXW,FOB
OEM: Yes
High Light:

40kW Hydrogen Fuel Cell System


Horizon Hydrogen Fuel Cell System

40kW Hydrogen fuel cell system for vehicle


A hydrogen fuel cell is a generator that converts the chemical energy of hydrogen and oxygen directly into electrical energy. The basic principle is that hydrogen releases electrons at the anode by a catalyst, and the electrons are conducted to the cathode through an external circuit. Protons are transferred to the cathode through a proton exchange membrane (PEM) and interact with oxygen under the action of the catalyst to generate water, electricity and heat. The fuel cell system has the following advantages:

  • High efficiency: the fuel cell directly converts chemical energy into electric energy without intermediate conversion between heat energy and mechanical energy (generator).
  • Zero emissions: the fuel cell is fueled by hydrogen and oxygen, and the only emission is clean water. It works without carbon monoxide or carbon dioxide, also does not emit sulfur or any particulates. Therefore, hydrogen fuel cell vehicles are truly zero-emission, zero-pollution vehicles, hydrogen fuel is the ideal vehicle fuel.
  • Short refilling time: hydrogen fuel cell vehicles use hydrogen storage tanks to store fuel. Hydrogen refilling time is about 5-10 minutes, providing continuous operation of a vehicle with typical range of 500-500 kilometers.


Our JOFC40 fuel cell system of Horizon Fuel Cell Technologies (Horizon) is one of the best fuel cell systems in the hydrogen fuel cell industry. It is mainly applied in the following fields:
1.It can be used as a direct source of power or range extender for vehicles such as trucks, buses, coaches, tractors, rail transit and other electric transportation vehicles.
2.It can be used as a standalone or backup power supply for industrial and commercial users including hospitals, schools, and other businesses. It can also be used as an energy storage system to balance power connected to an electricity grid.


Working Principal:

690*660*500mm 40kW Hydrogen Fuel Cell System 0 - 500A For Vehicle 0


Gas and liquid specifications:

Type Specifications
Hydrogen purity >99.97%
Other ingredients <500ppm
  <2ppm CO2
<0.2ppm CO
<5ppm H2O
<2ppm hydrocarbon
<5ppm O2
<500ppm He
<100ppm N2
< 0.004ppm H2S, COS, CS2, mercaptans)
< 0.01ppm of formaldehyde
<0.2 ppm formic acid
<0.1ppb NH3
< 0.05 ppm halogenated compounds
Oxygen >20.95%
Nitrogen <78.08%
Other gas components
  <0.1ppm CO
<1% CO2
<1ppm O3
<0.01ppm SO2
<0.04ppm Hydrogen sulfide
<0.025ppm NO
<0.05ppm NO2
<0.008ppm Volatile organic compounds
<0.01ppb NH3
Atmospheric particle composition
  <90μg/m3 PM10
<15μg/m3 PM2.5
Cooling fluid
  50% deionized water + 50% glycol
particle size<100μm
