High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate

High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate

  • High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate
High Quality And Safety Ammonia Cracker Hydrogen Production CE BV Certificate
Product Details:
Place of Origin: Suzhou, China
Brand Name: Since Gas
Certification: CE, GB,BV
Model Number: ANH
Payment & Shipping Terms:
Minimum Order Quantity: According to actual project
Price: according to actual project, generally 20-30% cost savings over conventional materials
Packaging Details: Packaging suitable for export transportation
Delivery Time: 60days after payment
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 200000tons/year
Contact Now
Detailed Product Description
Material: Carbon Steel Or Stainless Steel Dew Point: -70 ℃
Supplied Power: 380V,460V, 415V, Catalyst: Nickel
Application: Heat Treatment Raw Material: Liquid Ammonia
Capacity: 5-1000Nm3/h Cracker Reactor: Inconel600
Deomposition Capacity: 35M3 Warranty: 12 Months
High Light:

BV Certificate Ammonia Cracker


Hydrogen Production Ammonia Cracker


380V Ammonia Cracking Hydrogen Generator

 High Quality and safety Ammonia Cracking Hydrogen Production CE BV Certificate




Type:Resistance Furnace

Usage:Heat Treatment Furnace



Warranty:12 months

After-sales: Service Provided:Engineers available to service machinery overseas




Rated heating power of purifier (kw):2~10

Rated ammonia consumption (kg/h):2~16

Catalyzer:Nickel catalyst

Raw material:Liquid Ammonia

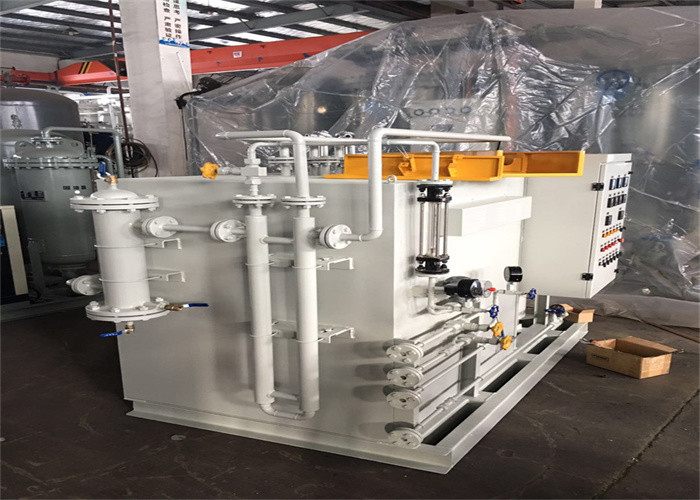

This series of ammonia decomposition generator is composed by decomposition machine, purifier

and electric control system. This machine decomposes ammonia into a kind of mixed gas which include 75% hydrogen and 25% nitrogen. The mixed gas generated is mainly used as protection atmosphere in powder metallurgy reduction, sintering, metal heat treatment, electronics, chemistry industry and ceramics. Because of low lost of gas generating, this series of ammonia decomposition generator is specially suitable to be used as accessory equipment of industries mentioned above.

Product feature:
Compact design, convenient installation, the core part of cracking system is made of INCO ALLOYS,which is

the material of corrosion-resistant, Alka-resistant and Acid-resistant, service life is more than 10 years.
Heat preservation of furnace is full fire structure, with the advantage of rapid temperature rise.
Heat element is made of full alloy, heating type is plug fuse, it's no need to stop the gas when replace

the heat elements.Alarm automatically when pressure has too higher or too lower.


Above is standard fittings, 50-1000Nm3/h ammonia decomposition generator is non-standard equipment, which can be provided according to demand. Fitting also can be upgraded according to requirement:
1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
2. Dew point detector can be added.
3. Gas content testing system can be added.

4. Characteristics

(1) Small investment

(2) Reliable performance and long service life

(3) Heating element

(4) Thermal insulation material

(5) Electrical control

(6) Depressurization system

(7) Purification system

(8) Simple installation

(9) Easy operation and maintenance

(10) High safety

Out pressure is adaptable between 0.05Mpa to 0.5Mpa
High security: Special furnace material, gas input and output system is special structure, which Max the
