Name: Safe Ammonia Cracker For Atmosphere Protective Heat Treatment Furnace
Brand: Joshining
SKU: JOANH
Price: 6000 USD
Availability: InStock
Rating: 4.9 (107 reviews)

Home Products Ammonia Cracker

Safe Ammonia Cracker For Atmosphere Protective Heat Treatment Furnace

Product Details:

Place of Origin:	China
Brand Name:	Joshining
Certification:	CE, GB
Model Number:	JOANH

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD6000-100000
Packaging Details:	Packaging suitable for export transportation
Delivery Time:	45-60days after payment
Supply Ability:	100sets/year

Contact Now

Detailed Product Description

Capacity:	5-1000Nm3/H	Dew Point:	-65~-70oC
Material:	Carbon Steel Or Stainless Steel	Application:	Heat Treatment
OEM:	No Special Surface Treatment To Be Required	Standard:	CE, GB
Trade Term:	EXW，FOB
High Light:	1000Nm3/H Ammonia Cracker Furnace , Safe Ammonia Cracker , Heat Treatment Furnace Ammonia Cracker

Safe And High-Quality Ammonia Cracker For Atmosphere Protective Heat Treatment Furnace

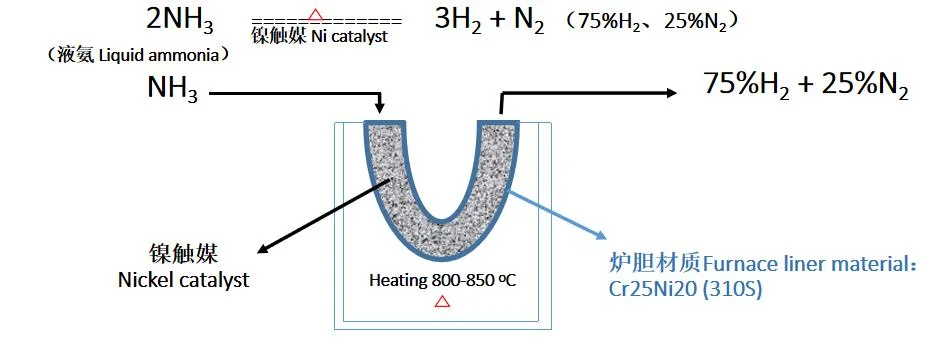

Working Principle of Ammonia Cracker

ammonia gas cracker for atmosphere protective heat treatment furnace Product feature:
With a compact design, and convenient installation, the core part of the cracking system is made of INCO ALLOYS, which is
material of corrosion-resistant, Alka-resistant, and Acid-resistant, service life is more than 10 years.
Heat preservation of the furnace is full fire structure, with the advantage of rapid temperature rise.
The heating element is made of full alloy, heating type is a plug fuse, there's no need to stop the gas when replacing
the heat elements. Alarm automatically when the pressure is too high or too low.

Above are standard fittings. The 50-1000Nm3/h ammonia decomposition generator is non-standard equipment, which can be provided according to demand. Fitting also can be upgraded according to requirement:
1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
2. Dew point detector can be added.
3. Gas content testing system can be added.
4. Characteristics
(1) Small investment
(2) Reliable performance and long service life
(3) Heating element
(4) Thermal insulation material
(5) Electrical control
(6) Depressurization system
(7) Purification system
(8) Simple installation
(9) Easy operation and maintenance
(10) High safety
ammonia gas cracker for atmosphere protective heat treatment furnace Ammonia Cracker Model Specification

S.N	Model	Nm /hr	V/Hz	kW
1	ANH-NHP-5-0.5/2	5	220/50	6+0.5
2	ANH-NHP-10-0.5/2	10	220/50	12+0.8
3	ANH-NHP-20-0.5/2	20	380/50	22+1.6
4	ANH-NHP-30-0.5/2	30	380/50	32+2
5	ANH-40-0.5/2	40	380/50	36
6	ANH-50-0.5/2	50	380/50	44
7	ANH-60-0.5/2	60	380/50	52
8	ANH-70-0.5/2	70	380/50	58
9	ANH-80-0.5/2	80	380/50	64
10	ANH-90-0.5/2	90	380/50	88
11	ANH-100-0.5/2	100	380/50	88
12	ANH-110-0.5/2	110	380/50	104
13	ANH-120-0.5/2	120	380/50	104
14	ANH-140-0.5/2	140	380/50	117
15	ANH-150-0.5/2	150	380/50	138
16	ANH-160-0.5/2	160	380/50	138
17	ANH-180-0.5/2	180	380/50	155
17	ANH-200-0.5/2	200	380/50	155
19	ANH-250-0.5	250	380/50	196
20	ANH-300-05	300	380/50	242
