32bar Green Hydrogen Production Plant Water Electrolyzer High Purity

32bar Green Hydrogen Production Plant Water Electrolyzer High Purity

  • 32bar Green Hydrogen Production Plant Water Electrolyzer High Purity
32bar Green Hydrogen Production Plant Water Electrolyzer High Purity
Product Details:
Place of Origin: Suzhou, China
Brand Name: SINCE
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: GH-5~1300Nm3/hr
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /per year
Contact Now
Detailed Product Description
Flow Capacity: 5~1300Nm3/hr H2 Purity: 99.9995%
Pressure: 16~32bar Dew Point: -70C
AC Power Consumption: 5.2kwh / Nm3 / H Voltage: 3ph, 10KVAC
Installed Power: 800kva DM Water Consumption: <1L Nm3 / H2
Certification: CE, GB, ASME, ISO Warranty Period: One Year
Dimension: 40ft ISO Container
High Light:

32bar Hydrogen Water Electrolyzer

,

high purity Hydrogen Water Electrolyzer

,

32bar hydrogen water generator

Green Hydrogen Production Plant, Water Electrolyzer



Green Hydrogen Energy


With the gradual increase in the use of clean energy, its intermittent nature makes the demand for energy storage very urgent. Hydrogen energy is a better bridge. The main advantages are: first, hydrogen electricity can be converted efficiently through PEM; second, hydrogen has a relatively high energy density and is relatively easy to store; third, hydrogen conversion to electricity has the potential for large-scale application.
At present, in the electrolysis of water hydrogen production technology, alkaline electrolysis of water (AWE) and proton exchange membrane electrolysis of water (PEMWE) have been gradually industrialized, while high-temperature solid oxide Hydrogen (AEMWE) is still in the pilot product phase







Hydrogen can be used much more widely.

Today, hydrogen is used mostly in oil refining and for the production of fertilizers. For it to make a significant contribution to clean energy transitions, it also needs to be adopted in sectors where it is almost completely absent at the moment, such as transport, buildings and power generation.
The Future of Hydrogen provides an extensive and independent survey of hydrogen that lays out where things stand now; the ways in which hydrogen can help to achieve a clean, secure, and affordable energy future; and how we can go about realizing its potential.

Hydrogen can be extracted from fossil fuels and biomass, from water, or from a mix of both. Natural gas is currently the primary source of hydrogen production, accounting for around three-quarters of the annual global dedicated hydrogen production of around 70 million tones. This accounts for about 6% of global natural gas use. Gas is followed by coal, due to its dominant role in China, and a small fraction is produced from the use of oil and electricity.
The production cost of hydrogen from natural gas is influenced by a range of technical and economic factors, with gas prices and capital expenditures being the two most important.

Fuel costs are the largest cost component, accounting for between 45% and 75% of production costs. Low gas prices in the Middle East, Russia, and North America give rise to some of the lowest hydrogen production costs. Gas importers like Japan, Korea, China, and India have to contend with higher gas import prices, and that makes for higher hydrogen production costs.

While less than 0.1% of global dedicated hydrogen production today comes from water electrolysis, with declining costs for renewable electricity, in particular from solar PV and wind, there is growing interest in electrolytic hydrogen.

With declining costs for renewable electricity, in particular from solar PV and wind, interest is growing in electrolytic hydrogen and there have been several demonstration projects in recent years. Producing all of today’s dedicated hydrogen output from electricity would result in an electricity demand of 3 600 TWh, more than the total annual electricity generation of the European Union.

Under the background of the "3060 carbon peak and carbon neutrality" policy, the installed capacity of clean energy such as wind power will continue to grow rapidly, and green hydrogen may usher in a period of rapid development. According to the forecast of China Hydrogen Energy Alliance, by 2050, the proportion of hydrogen production from renewable energy electrolysis will reach 70%.
In 2020, China announced its ambition to be carbon neutral by 2060. The use of hydrogen will be important, especially in China's huge industrial sector which accounts for 60% of the final energy demand. The use of hydrogen as an alternative to fossil fuels received attention even before China's net-zero commitment, as it was seen as a means to address urban air quality problems.



Product Introduction

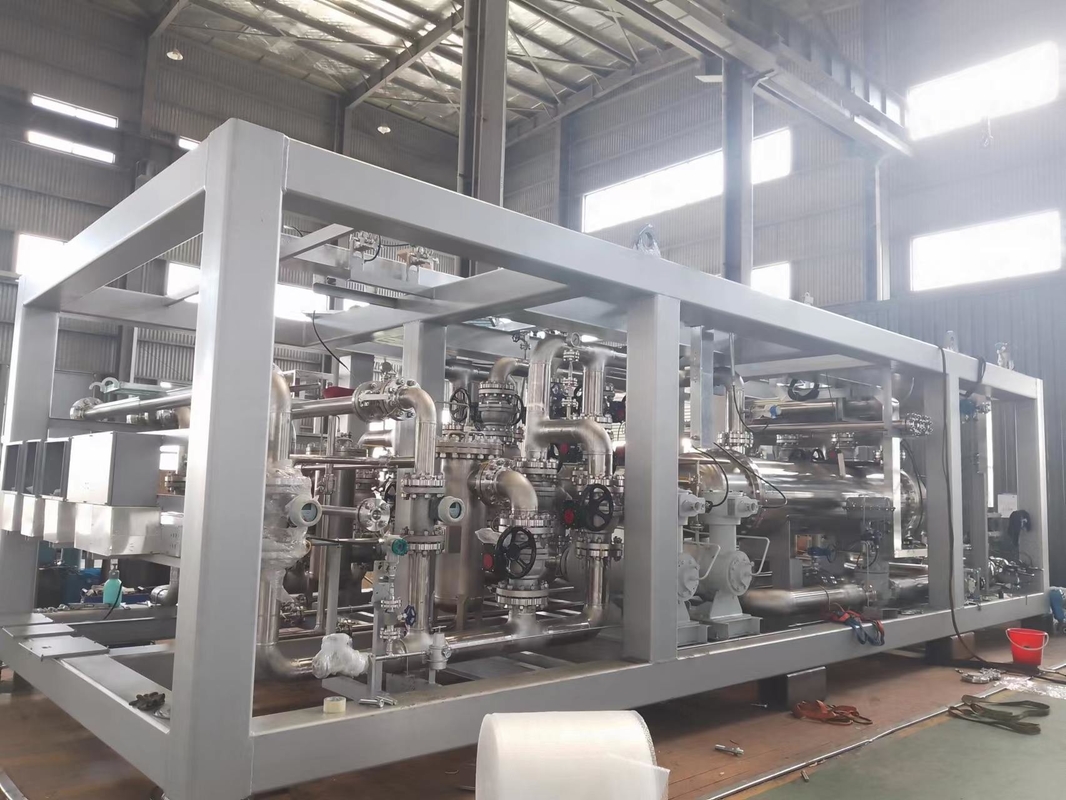

The water electrolysis hydrogen (Oxygen) plant is equipment that electrolyzes water to produce hydrogen and oxygen by using lye as an electrolyte.



Product advantage:



Features
Mature and advanced technology
Lower power consumption and cost
High pressure and purity
No pollution and zero emissions


Technical Index
Hydrogen capacity:3 ~1300Nm3/hr
Purity: 99.9995%
Oxygen Content: ≤2PPM
Dew point: ≤-70℃



High-efficiency Non-Asbestos Membrane





Product advantages

1. Dynamic response ~Quick
2. System modularity
3. Different power connection methods
4. Mature Technology
5. Stable Performance, Long Life
6. Equipment costs and operating costs have room to decrease
DC power consumption is Measured At 4.2kw·h/M3
7. Wide range adjustment, the power Supply Adjustment Range is 10-400% Between



Control System
• Simple operation & high reliability
• PLC system, fully-automatic control
• Remote controllable via cellphone App, online monitoring
