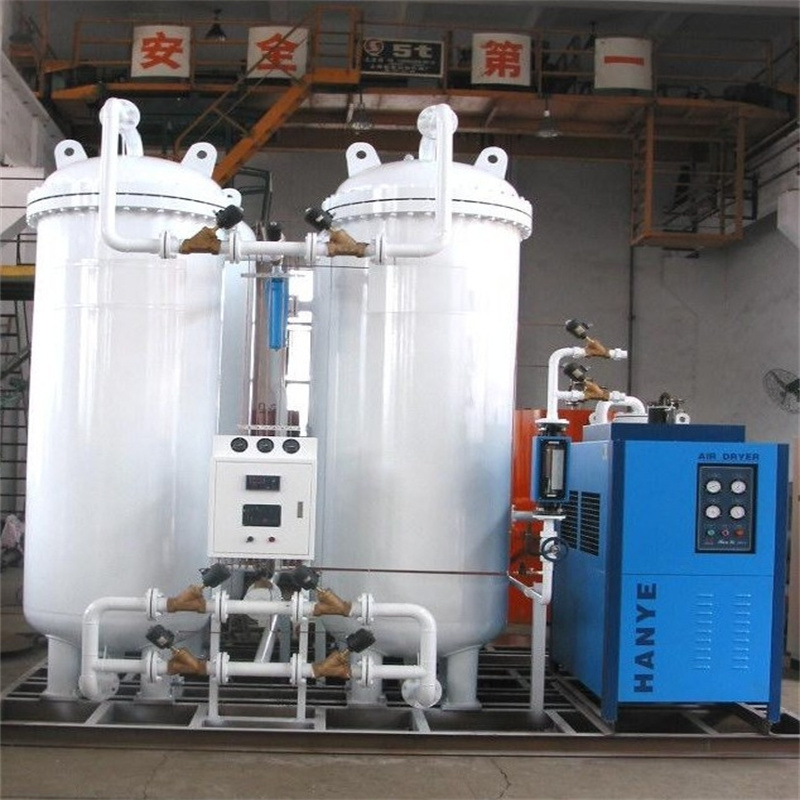

High Purity Medical Industrial Oxygen Generator For High Pressure Welding
| Capacity: | 3-100 Nm3/h | Purity: | 90%-95% |
| Dew point: | -65℃ | Operate power: | 0.5 KW |
| Operation: | Fully Automatic | Life span: | 8-10 Years |
| Consumption: | Energy-saving | Application: | Industry |
| Usage: | Medical And Industrial | Products name: | PSA Oxygen Generator |
| High Light: | High purity medical oxygen generator,Industrial oxygen generator for welding,PSA oxygen generator high pressure |
||
High Purity Medical/Industry Oxygen Generator production plant for high pressure welding
Description:
PSA oxygen generator makes compressed air enter into adsorption towers alternately. By applying the
selective adsorption character of zeolite molecular sieve (ZMS), achieve air separation on the basis of
the principle, which is pressurization makes adsorption and depressurization makes desorption, to get
high purity production oxygen continuously.
Oxygen Generation System Includes :
Air Compressor
Air Dryer & Precision Filters
Air tank
Oxygen Generator
Gas buffer tank
Oxygen storage vessel
Specifiaction:
| Oxygen Capacity/Flow rate | 3-100Nm3/h(3 ,5,10,15,20,25...Nm3/h) |
| Oxygen Purity: | 25%-97% |
| Oxygen pressure | 0.1-0.6Mpa |
| Oxygen dew-poin | ≤-40°C |
| Start-up time | 8-12 hours |
Oxygen Generation features:
1) All technological processes of Oxygen generator and filling technology of molecular sieve are
introduced from Germany.These will improve adsorption of molecular sieve ,avoiding its pulverization
and extending its service life.
2)Special bypass design ensures lower energy consumption and higher yielding results.
3)Imported integrated pneumatic valve with original packaging guarantees the serviceability in a
greater degree.
4)Computer-aided operation with the simple technical design makes for easy maintenance.
5)Totally enclosed design, compact structure, nice appearance and small occupation area.
Oxygen genearator Application
PSA oxygen generator is favored by the majority of users because of its significant advantages. It is widely used in
metallurgical combustion support, chemical industry, environmental protection, building materials, light industry, medical
treatment, aquaculture, biotechnology, sewage treatment and other fields.
