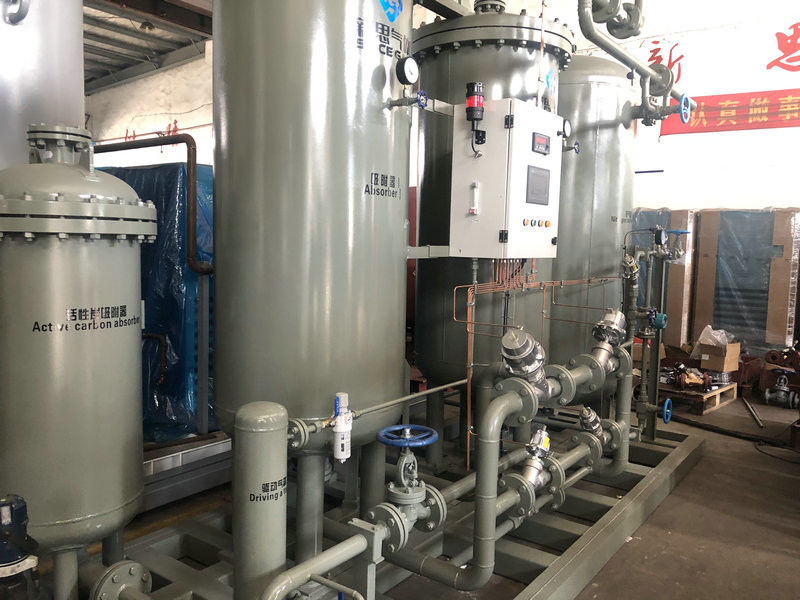

Energy Saving PSA Nitrogen Generator With PLC Control System 5-5000 Nm3/H
| Name: | PSA Nitrogen Generator | Control: | PLC Control |
| Capacity: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Operate power: | 1 KW | Advantage: | Energy Saving |
| High Light: | PSA nitrogen generator with PLC control,energy saving nitrogen generator 5000 Nm3/H,PSA nitrogen generator 5 Nm3/H |
||
Energy Saving PSA Nitrogen Generator With PLC Control System 5-5000 Nm3/H
PSA Nitrogen Generator Operational Principle
PSA Nitrogen Generator adopts carbon molecular sieve as adsorbent whose capacity of adsorbing the oxygen in air shall be larger more than of adsorbing the nitrogen in air. By means of valve opened and closed with PLC, two columns a&b can be shifted in circulation for pressured adsorption,de-pressured dis-adsorption in turn so as to separate the oxygen and nitrogen in air, thus a nitrogen gas with purity demanded can be made.
PSA Nitrogen Generator Benefits
· Experience - We have supplied over 1000 Nitrogen Generators all over the world.
· German Technology - We have German collaboration for our technology and have fine tuned this technology to gain proprietary advantages in several key areas.
· Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation and no personnel are required for operating the Gas plant.
· Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.
PSA Nitrogen Generator Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
PSA Nitrogen Generator Details
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
