High Pressure PSA Nitrogen Generator For Encapsulation , Agglomeration , Anneal

High Pressure PSA Nitrogen Generator For Encapsulation , Agglomeration , Anneal

  • High Pressure PSA Nitrogen Generator For Encapsulation , Agglomeration , Anneal
High Pressure PSA Nitrogen Generator For Encapsulation , Agglomeration , Anneal
Product Details:
Place of Origin: Suzhou, China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiate
Packaging Details: Exported standard package
Delivery Time: 2 months after received down payment
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Name: PSA Nitrogen Generator Advantage: High Pressure
Capacity: 5-5000 Nm3/h Purity: 95%-99,9995%
Dew Point: -70℃ Application: Encapsulation , Agglomeration , Anneal
High Light:

Encapsulation PSA Nitrogen Generator

,

Anneal Psa Nitrogen Gas Generator

,

Anneal PSA Nitrogen Generator

High Pressure PSA Nitrogen Generator For Encapsulation , Agglomeration , Anneal​



PSA Nitrogen Generator Technical Features



1). Full Automation

All systems are designed for un-attended operation and automatic Oxygen demand adjustment.



2). Lower Space Requirement

The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.



3). Fast Start-up

Start-up time is only 5 minutes to get desired Oxygen purity.So these units can be switched ON&OFF as per Oxygen demand changes.



4). High Reliabiity

Very reliable for continuous and steady operation with constant Oxygen purity.Plant availability time is better than 99% always.



5). Molecular Sieves life

Expected Molecular sieves life is around 15-years i.e. whole life time of Oxygen plant.So no replacement costs.



6). Adjustable

By altering flow,you can deliver nitrogen with precisely the right purity.



PSA Nitrogen Generator Description:



(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy-saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008



Step 1: Adsorption
Pre-filtered compressed air is passed through one CMS filled vessel. Oxygen is adsorbed by the CMS

and Nitrogen comes out as the product gas. After some time of operation, the CMS inside this vessel

gets saturated with Oxygen and can no longer adsorb.
Step 2: Desorption
Upon saturation of the CMS in the vessel, the process switches nitrogen generation to the other

vessel, while allowing the saturated bed start the process of desorption and regeneration. The waste

gas (oxygen, carbon dioxide, etc.) is discharged into atmosphere.
Step 3: Regeneration
In order to regenerate the CMS in the vessel, part of the Nitrogen produced by the other tower is

purged into this tower. This allows for quick regeneration of the CMS and to make it available for

production in the next cycle.

The cyclical nature of the process between the two vessels ensures continuous production of pure

Nitrogen.

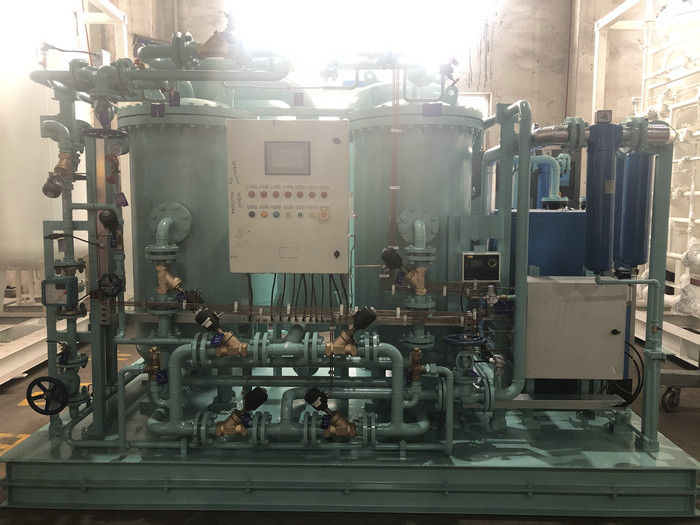

High Pressure PSA Nitrogen Generator For Encapsulation , Agglomeration , Anneal 0

Benefits of our PSA Nitrogen Generators:



·  Experience - We have supplied over 1000 Nitrogen Generators all over the world.

·  German Technology - We have German collaboration for our technology and have fine tuned this

technology to gain proprietary advantages in several key areas.

·  Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation

and no personnel are required for operating the Gas plant.

·  Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by

optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.



PSA Nitrogen Generator Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



High Pressure PSA Nitrogen Generator For Encapsulation , Agglomeration , Anneal 1



PSA Nitrogen Generator Technical characteristics



1. Unique molecular sieve protective measures so as to lengthen the service life of carbon  molecular

sieve.

2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out , it can not cause of molecular sieve pulverization phenomenon. equipped

with the limit settlement alarm system,when it reach the floor level of journey,the equipment will sound

and light alarm by itself.

3. Configured DCS remote control system interface,it can monitor the system operate condition through

the computer.

4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.

5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.

6. Reasonable structure design make the transportation, sling and installation very convenient.
