Multi Functional PSA Nitrogen Generator For Beer / Snack / Milk / Red Wine
| Name: | PSA Nitrogen Generator | Certificates: | BV,,CCS,ISO,TS |
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew point: | -70 ℃ | Operate power: | 1 KW |
| Application: | Beer / Snack / Milk / Red Wine | ||
| High Light: | PSA nitrogen generator for beer,PSA nitrogen generator for wine,multi functional nitrogen generator |
||
Multi Functional PSA Nitrogen Generator For Beer / Snack / Milk / Red Wine
PSA Nitrogen Generator Principles:
It uses carbon molecular sieve as sorbent, produces nitrogen by making use of
the PSA principle. Under certain pressure, carbon molecular sieve has different oxygen/nitrogen
adsorption capacity, i.e. much more oxygen adsorption capacity than nitrogen adsorption capacity.

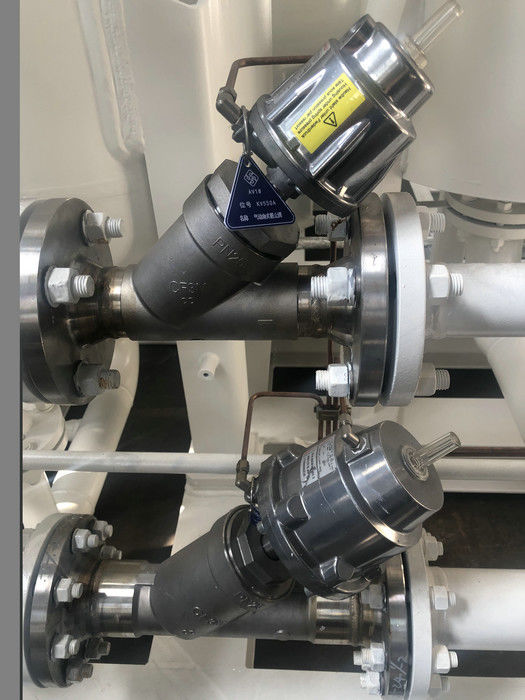

PLC controls pneumatic valve open/close to realize two towers alternate adsorption and desorption as per
pressure change, carries out oxygen/nitrogen separation and produces nitrogen with desired purity. By equipping additional purification device( for removing bacterial, odor and dust), Clean N2 applicable for food protection is obtained.
PSA Nitrogen Generator Parameters
| Model No | PN |
| Capacity | 3~3000Nm3/h |
| Purity | 95~99.9995% |
| Initial pressure | 0.05-0.8Mpa |
| DewPoint | -45°C |
| Remarks | For food industry |
PSA Nitrogen Generator Applications:
Food packaging, beer, vegetable, fruit and other food fresh keeping.
PSA Nitrogen Generator Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Joshining Energy & Technology Co.,Ltd or send email to us directly |
|||||
.
