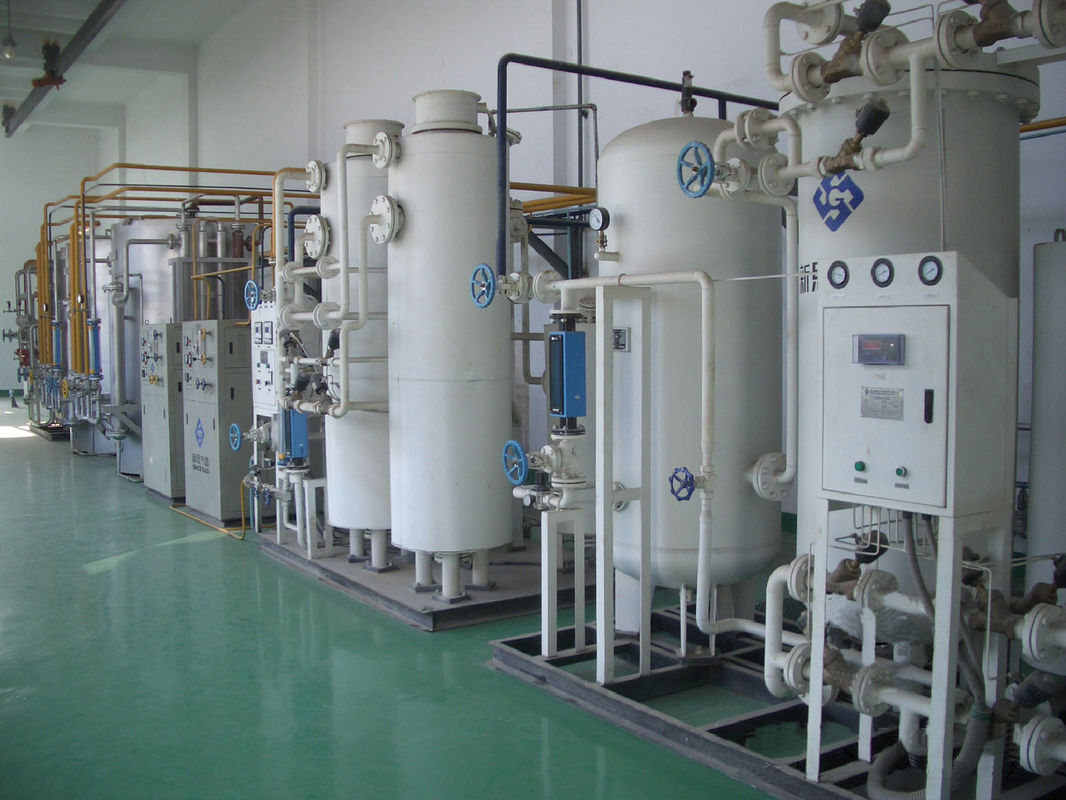

99.9995% Durable PSA Nitrogen Generator Plant for Copper Wire / Aluminum Alloy
99.9995% nitrogen generator system for Copper wire / Aluminum alloy / Fire-resistant production
PSA nitrogen generator for wire Industry:
1). Purity:95%-99.9995%
2). Capacity:5~3000Mm3/h
3). Outlet Pressure:0.1-0.7Mpa(Adjustable)
4). Low compressed air consumption
5). Durable components
Working Principle:
The principles of pressure swing adsorption (PSA) Nitrogen generator are adsorption and diffusion.
Each gas has a characteristic adsorption rate that when adsorbed by Carbon Molecular Sieve (CMS).
CMS has large surface area containing volume of micro pores and passageways. Oxygen has a higher adsorption
rate than nitrogen. When compressed air enters CMS, nitrogen molecules are able to pass through this large surface. And oxygen molecules are adsorbed to the surface area.
As the CMS is saturated with oxygen, it should be depressurized to regenerate for next cycle. We use two towers filled with CMS to produce a continuous stream of nitrogen.
During depressurization, the nitrogen of lower purity than required is transferred to another tower, which is called pressure equalization. Pressure equalization donates to higher efficiency and less energy consumption.
Know-how in the definite time and ways to equalize the pressures in both adsorption towers is the key to the best results.
Technical Indexes:
Nitrogen Output:5~3000Nm³ / h
Nitrogen Purity : ≥ 99.9995%
Oxygen Content: ≤ 5 ppm
Carbon Dioxide Content: ≤ 1 ppm
Dew Point: ≤ -70 ºC
Specifications:
|
No
|
Model
|
Capacity(Nm3/h)
|
Purity
|
Power(KW)
|
Overall size(mm)
|
|
1
2
3
4
|
PN-3-39
PN-5-29
PN-5-295
PN-8-295
|
3
5
5
8
|
99.9%
99.5%
99%
95%
|
0.5
|
1800*1400*1500
|
|
5
6
7
8
|
PN-5-49
PN-8-39
PN-12-295
PN-15-29
|
5
8
12
15
|
99.99%
99.9%
99.5%
99%
|
0.5
|
1800*1400*1800
|
|
9
10
11
12
|
PN-10-49
PN-15-39
PN-25-295
PN-30-39
|
10
15
25
30
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2000*1700*2250
|
|
13
14
15
16
|
PN-15-49
PN-22-39
PN-35-295
PN-45-29
|
15
22
35
45
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2100*1800*2200
|
|
17
18
19
20
|
PN-20-49
PN-30-39
PN-50-295
PN-60-29
|
20
30
50
60
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2200*1800*2200
|
|
21
22
23
24
|
PN-30-49
PN-45-39
PN-75-295
PN-88-29
|
30
45
75
88
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2400*1900*2200
|
|
25
26
27
28
|
PN-40-49
PN-60-39
PN-100-295
PN-120-29
|
40
60
100
120
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2500*2100*2500
|
|
29
30
31
32
|
PN-50-49
PN-70-39
PN-120-295
PN-140-29
|
50
70
120
140
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2600*2200*2850
|
|
33
34
35
36
|
PN-60-49
PN-90-39
PN-160-295
PN-190-29
|
60
90
160
190
|
99.99%
99.9%
99.5%
99%
|
0.5
|
2800*2200*2500
|
|
37
|
PN-80-49
|
80
|
99.99%
|
0.5
|
|
|
38
39
40
|
PN-120-39
PN-200-295
PN-250-29
|
120
200
250
|
99.9%
99.5%
99%
|
0.5
|
3200*1400*2800
|
|
41
42
43
44
|
PN-100-49
PN-140-39
PN-250-295
PN-290-29
|
100
140
250
290
|
99.99%
99.9%
99.5%
99%
|
0.5
|
3500*1500*2800
|
|
...
|
...
|
...
|
...
|
...
|
...
|
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly
|
Features
* Proven PSA technology
* Simple engineering design
* International standardized manufacturing techniques
* More advanced and more economical air separation modules
* Patented REFLUX composition control system saves energy cost
* Automated Operation
* Turn-key solution and pre-commissioned
* Skid mounted design, easy installation
* Long Life and low maintenance
