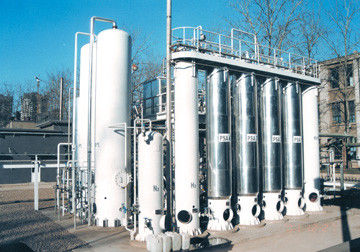

Name: High Purity 99.9999% H2 Hydrogen Generation Plant with 3000 Nm3/h Capacity and Low Energy Consumption Methanol Cracking System
Brand: JoShining Energy & Technology Co.,Ltd
SKU: PM-C
Price: 700,001.00 USD
Availability: InStock

Home > Products > Methanol Cracking >

High Purity 99.9999% H2 Hydrogen Generation Plant with 3000 Nm3/h Capacity and Low Energy Consumption Methanol Cracking System

Methanol Production Plants

methanol project

High Purity Methanol Cracking

Place of Origin:

Suzhou,China

Brand Name:

Joshining

Certification:

CE,ABS,CCS,BV,DNV,ASME,GOST,

Model Number:

PM-C

Request A Quote

Product Details

Capacity:

50-3000 Nm3/h

Purity:

99%-99.9999%

Operate Pressure:

0.8-2.5 Mpa(g) (adjustable)

Raw Material:

Methanol

Highlight:

Methanol Production Plants

methanol project

High Purity Methanol Cracking

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

Normal exported wooden case

Delivery Time

2 months after received down payment

Payment Terms

L/C,T/T,Western Union,

Skid-Mounted Explosion-Proof Methanol Cracking Hydrogen Production Equipment with 5-20 Nm3/h Capacity and Fully Automatic Operation

Get Best Price

High Purity 99.9999% H2 Hydrogen Generation Plant with 3000 Nm3/h Capacity and Low Energy Consumption Methanol Cracking System

Get Best Price

99%-99.9999% Purity Methanol Cracking Hydrogen Generation Unit

Get Best Price

Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing

Get Best Price

Contact Now

Product Description

High Purity H2 Hydrogen Generation Plant - Methanol Cracking CE / TUV Certificate

High Purity H2 Hydrogen Generation Plant - Methanol Cracking CE / TUV Certificate

Preface

The hydrogen generation process through methanol reforming-PSA is an independently developed technology designed by our company for medium to small-scale hydrogen generation plants. After ten years of research and improvement, this technology has reached advanced domestic levels. Approximately one hundred industrialized plants have been successfully installed nationwide, with several national patents obtained. This technology primarily uses methanol and demineralized water as feedstock, employing catalysis reforming and PSA to produce high-purity hydrogen. It features simplified processes, minimal land occupation, cost-effective investment, and operational efficiency. With the rapid construction of large methanol plants in our country, hydrogen generation costs are expected to decrease significantly, enhancing our clients' product competitiveness.

Technical Features

Mature production technology with safe and reliable operation
Easily accessible feedstock with stable pricing and convenient transportation and storage
Short and simple process flow
Low energy consumption and production costs
Minimal land occupation and investment with quick return on investment
Simple operation with high automation
Environmentally friendly with no pollution

Technical Specifications

Production Capacity	50-3000 Nm³/h
Product Purity	99%-99.9995%
Temperature	Ambient
Product Pressure	0.8-2.5 MPa(g)

Process Flow Description

The mixture of methanol and demineralized water, after being pressurized, evaporated, and superheated to a specific temperature, is fed into a reactor. Under catalyst action, reforming gases including H₂, CO₂, CO, etc., are formed. The mixed gas undergoes purification through PSA technology to obtain high-purity hydrogen in a single cycle.

Process Flow Diagram
