Brazing Furnace Nitrogen Gas Purification System Making Water Condenser / Evaporator

Brazing Furnace Nitrogen Gas Purification System Making Water Condenser / Evaporator

  • Brazing Furnace Nitrogen Gas Purification System Making Water Condenser / Evaporator
Brazing Furnace Nitrogen Gas Purification System Making Water Condenser / Evaporator
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: NP-H-5-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Capacity: 300Nm3/h Purity: >99.9995%
Dew Point: -70℃ Application: Brazing Furance/condensator
Principle: H2+02=H20
High Light:

Gas Filtration System

,

Gas Purifier System

,

Brazing Furnace Gas Purification System



Brazing Furnace Nitrogen Gas Purification System Making Water Condenser / Evaporator





Description:

No

Item

Specs

Notes

1

Purity

>99.9995%



2

Pressure

≤6bar

Adjustable

3

Dew point

≤-70℃

Even lower

4

Oxygen content

≤3ppm



5

Capacity

5-5000 Nm3/h



6

Producing method

Plus hydrogen

H2+ O2=H2O reaction



Principle:

O2+H2——H2O

Via Oxygen and Hydrogen can make water under the catalyzator function, Plus the Hydrogen into

Nitrogen, the mixed gas will make reaction in the oxygen eliminating equipment which will full of high

efficiency catalyzator, to eliminate oxygen etc impurity, absorbing the double time dry principle to

eliminate water , getting the high purity Nitrogen. catalyzator will be the crucial part during the whole

eliminating oxygen process, while palladium etc noble metal is the key in catalyzator, therefore we also

called catalyzator for palladium catalyzator. Also called Palladium catalyst.



Characteristics:

Full Automation

All systems are designed for unattended operation and automatic Nitrogen demand adjustment.

Low Electric Energy Consumption

All systems are designed for Energy-Efficient.

Lower Space Requirement and Short installation period

The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated

and supplied from factory. PAIGE Machinery has own PAIGE brand of PSA Nitrogen generation

equipment

Installation is very easy and convenient.

Fast Start-Up

Start up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON &

OFF as per Nitrogen Demand changes.

High Reliability

Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is better

 than 98% always.

Molecular Sieves Life

Expected Molecular sieves life is more than 10-years i. e. Whole life time of Nitrogen plant. So no replacement

costs.

Simple operation and maintenance

All systems are designed by integrated solution for easy-operation &easy-maintenance.

Technical Index :

No

Item

Specs

Notes

1

Operate pressure

6 bar

Adjustable

2

Dew point

-70 ℃

Even lower

3

Oxygen content

≤3 ppm



4

Hydrogen content

0.1%~5%



5

Capacity

5-5000Nm3/h



6

Purity

>99.9995%

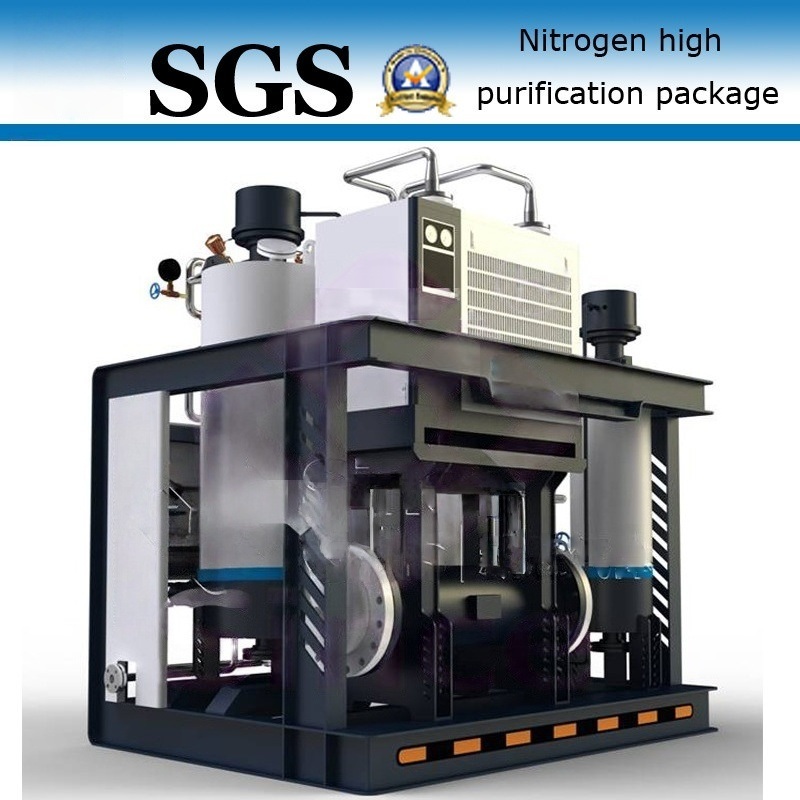

Brazing Furnace Nitrogen Gas Purification System Making Water Condenser / Evaporator 0



Application:

Equipped with Brazing furnace who making Condensator,evaporator
