Place of Origin: | Suzhou,China |
Brand Name: | SINCE-GAS |
Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Model Number: | NP-H |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiate |
Packaging Details: | Normal exported wooden case |
Delivery Time: | 2 months after received down payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets/year |
Capacity: | 300Nm3/h | Purity: | >99.9995% |
---|---|---|---|
Dew Point: | -70℃ | Application: | Cold Rolling Sheets,cooper Industry,galvanization Line, |
Principle: | H2+02=H20 | ||
High Light: | Gas Filtration System,Gas Purifier System,NP-300-H-5-A Gas Purification System |

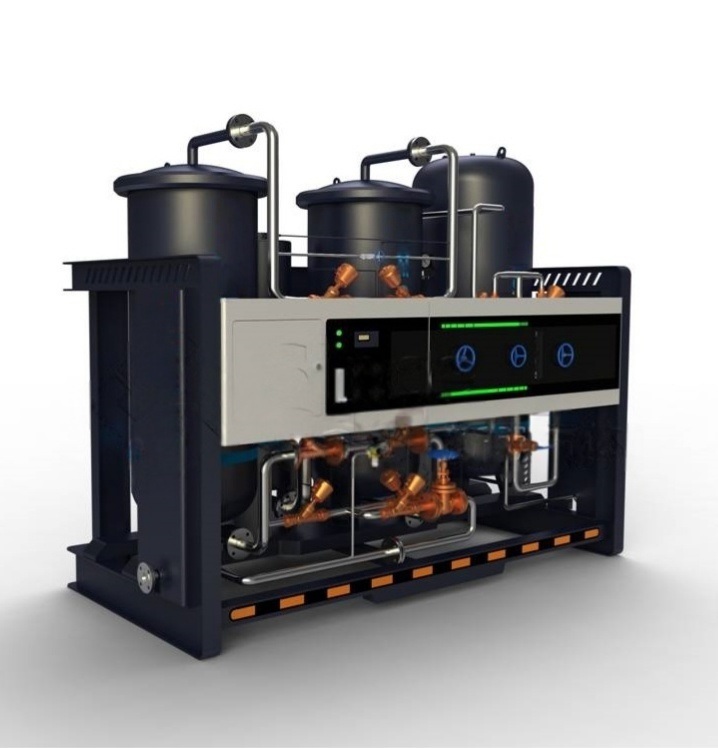

NP-300-H-5-A Gas Purification System For Nitrogen Generation Plant
Description:
No |
Item |
Specs |
Notes |
1 |
Purity |
>99.9995% |
|
2 |
Pressure |
≤6bar |
Adjustable |
3 |
Dew point |
≤-70℃ |
Even lower |
4 |
Oxygen content |
≤3ppm |
|
5 |
Capacity |
5-5000 Nm3/h |
|
6 |
Producing method |
Plus hydrogen |
H2+ O2=H2O reaction |
Principle:
O2+H2——H2O
Via Oxygen and Hydrogen can make water under the catalyzator function, Plus the Hydrogen into
Nitrogen, the mixed gas will make reaction in the oxygen eliminating equipment which will full of high
efficiency catalyzator, to eliminate oxygen etc impurity, absorbing the double time dry principle to
eliminate water , getting the high purity Nitrogen. catalyzator will be the crucial part during the whole
eliminating oxygen process, while palladium etc noble metal is the key in catalyzator, therefore we also
called catalyzator for palladium catalyzator. Also called Palladium catalyst.
Characteristics:
Full Automation
All systems are designed for unattended operation and automatic Nitrogen demand adjustment.
Low Electric Energy Consumption
All systems are designed for Energy-Efficient.
Lower Space Requirement and Short installation period
The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated
and supplied from factory. PAIGE Machinery has own PAIGE brand of PSA Nitrogen generation
equipment
Installation is very easy and convenient.
Fast Start-Up
Start up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON &
OFF as per Nitrogen Demand changes.
High Reliability
Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is better
than 98% always.
Molecular Sieves Life
Expected Molecular sieves life is more than 10-years i. e. Whole life time of Nitrogen plant. So no replacement
costs.
Simple operation and maintenance
All systems are designed by integrated solution for easy-operation &easy-maintenance.
Technical Index :
No |
Item |
Specs |
Notes |
1 |
Operate pressure |
6 bar |
Adjustable |
2 |
Dew point |
-70 ℃ |
Even lower |
3 |
Oxygen content |
≤3 ppm |
|
4 |
Hydrogen content |
0.1%~5% |
|
5 |
Capacity |
5-5000Nm3/h |
|
6 |
Purity |
>99.9995% |
|
Application:
(1) Cold rolled sheets;
(2) Cooper Industry;
(3) Stainless steel industry;
(4) Galvanization line;
Contact Person: Jojo
Tel: +8613862022817
