Plus Carbon Remove Oxygen High Purity PSA Nitrogen Gas Purifier System

Plus Carbon Remove Oxygen High Purity PSA Nitrogen Gas Purifier System

  • Plus Carbon Remove Oxygen High Purity PSA Nitrogen Gas Purifier System
Plus Carbon Remove Oxygen High Purity PSA Nitrogen Gas Purifier System
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: NP-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Capacity: 100-5000Nm3/h Purity: 99.999%-99.9995%
Dew Point: -70℃ Application: Cold Rolling Sheet/steel,galvanizing Line,cooper Production
High Light:

Gas Filtration System

,

Gas Purifier System

,

High Purity PSA Nitrogen System

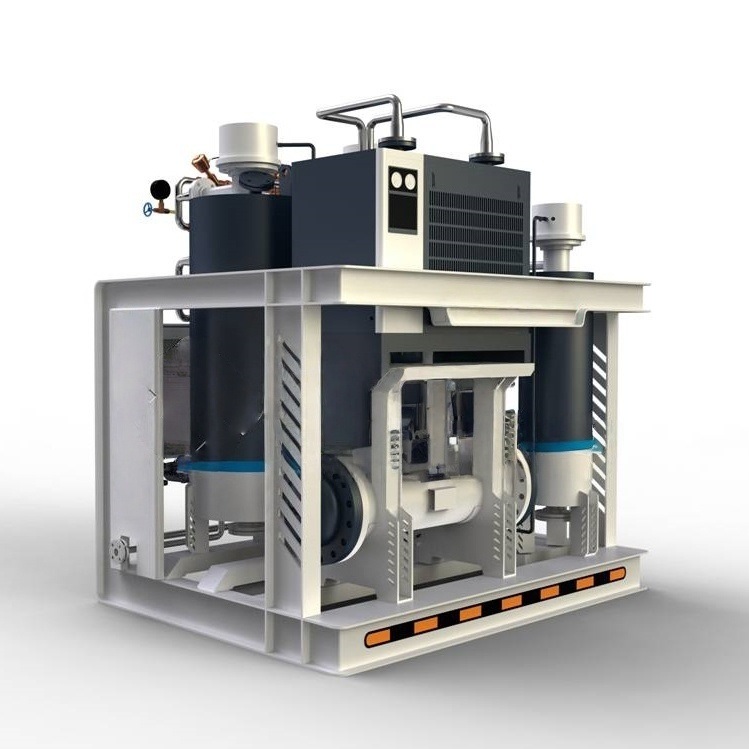

Plus Carbon Remove Oxygen High Purity PSA Nitrogen Gas Purifier System





Description:



High purity Nitrogen>99.9995%

Pressure:1-6 bar(adustable)

Dew point(Normal temperature)≤-70degree

Oxygen content≤3ppm

Hydrogen content:None

Nitrogen capacity:5~5000Nm3/h

Producing method: Plus carbon





Principle:



Technological Process:
Nitrogen Generation system from our company are designed and manufactured based on the principle

of Pressure Swing Adsorption(PSA). Ambient air, having being compressed and purified to remove oil,

water and dust, enters the adsoption swing adsorping device with two adsorption towers filled with

carcon molecular sieve(CMS). The compressed air flow to the adsorption tower from the bottom to up.

In the process, oxygen molecular is adsorbed, while nitrogen flows out of the upper side of adsorption

tower and then enters then buffer tank for impure nitrogen. After a period of time, the CMS in the

adsorption tower is saturated by the oxygen adsorbed. At this time, regeneration is needed. It is realized

by stopping adsorbing step and reduce pressure in the adsorption tower. Adsorption and regeneration

are conducted alternatively in the two adsorption towers to ensure the consecutive output of nitrogen

gas.



The whole system components:

The whole nitrogen generation system mainly consists of the air compressor, the compressed air

receiver, filters, refrigeration dryer, the PSA nitrogen generator, and the nitrogne receiving tank.

For the air compressor, famous brand such as the Atlas Copco, the Ingersoll Rand can be available

from our company to match the PSA nitrogen generators.

For filters, the elements with brand of Hankison, Domnick are available.



Characteristics:



Full Automation

All systems are designed for unattended operation and automatic Nitrogen demand adjustment.

Low Electric Energy Consumption

All systems are designed for Energy-Efficient.

Lower Space Requirement and Short installation period

The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated

and supplied from factory. PAIGE Machinery has own PAIGE brand of PSA Nitrogen generation

equipments.

Installation is very easy and convenient.

Fast Start-Up

Startup time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON & OFF

as per Nitrogen

Demand changes.

High Reliability

Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is

better than 98% always.

Molecular Sieves Life

Expected Molecular sieves life is more than 10 years i. e. Whole life time of Nitrogen plant.

So no replacement costs.

Simple operation and maintenance

All systems are designed by integrated solution for easy-operation and easy-maintenance.



Technical Index :



Normal Nitrogen

Pressure: 5-8bar

Dew point(ASM):≤-40degree

Oxygen content :≤1%

Capacity :5~5000Nm3/h



Plus Carbon Remove Oxygen High Purity PSA Nitrogen Gas Purifier System 0Plus Carbon Remove Oxygen High Purity PSA Nitrogen Gas Purifier System 1



Application:



1.) Food, Beverage, Cereal & Drug Industries: It’s suitable to use in gas-adjusting package and nitrogen

package of fruits, vegetables, flowers, tea leaves and puffed food,

custard pie, milk bread, European-style egg roll, various cookies, farm products and local special products,

such as rice, seed and

chestnut, also kinds of drugs etc .

2.) Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and

blowing, etc. Used in fields such as metal heating treatment,powder metallurgy, magnetic material,

copper process, metallic mesh, galvanized wire, semiconductor, etc.

3.) Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement,

gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber,

plastic, tyre, polyurethane, biological technology, intermediate, etc.

4.) Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic

products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic

porcelain, electronic copper tape, battery, electronic alloy material, etc.
