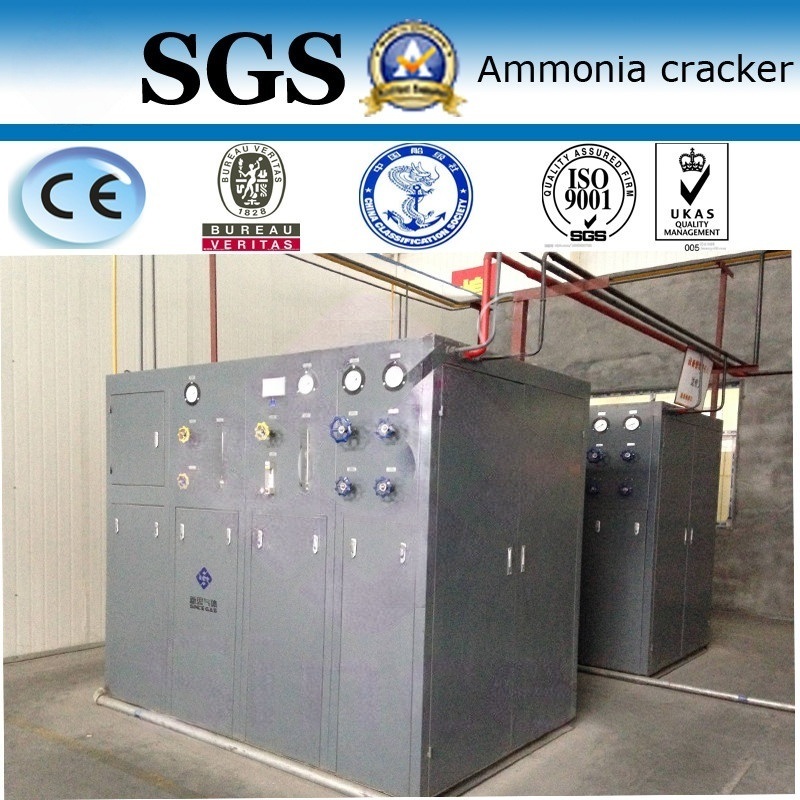

Cracked Ammonia Generator / Ammonia Cracker Unit Use Nickel Catalyst

Cracked Ammonia Generator / Ammonia Cracker Unit Use Nickel Catalyst

  • Cracked Ammonia Generator / Ammonia Cracker Unit Use Nickel Catalyst
Cracked Ammonia Generator / Ammonia Cracker Unit Use Nickel Catalyst
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: ANH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Material: Carbon Steel/stainless Steel Capacity: 5-1000Nm3/h
Dew Point: -70℃ Supply Power: 380V/460V/415V/3P/50/60 Hz
Catalyst: Nickel Catalyst Raw Material: Liquid Ammonia
Highlight:

1000Nm3/h Ammonia Cracking

,

Nickel Catalyst Ammonia Cracker Unit

,

Nickel catalyst Ammonia Cracker

Cracked Ammonia Generator / Ammonia Cracker Unit Use Nickel Catalyst





Condition:New

Type:Resistance Furnace

Usage:Heat Treatment Furnace

Dimension(L*W*H):Various

Weight:3-20ton

Warranty:12 months

After-sales: Service Provided:Engineers available to service machinery overseas

Quality:superior

Design:novel

Price:competitive

Rated heating power of purifier (kw):2~10

Rated ammonia consumption (kg/h):2~16

Catalyzer:Nickel catalyst

Raw material:Liquid Ammonia



Introduction:

This series of ammonia decomposition generator is composed by decomposition machine, purifier

and electric control system. This machine decomposes ammonia into a kind of mixed gas which include 75% hydrogen and 25% nitrogen. The mixed gas generated is mainly used as protection atmosphere in powder metallurgy reduction, sintering, metal heat treatment, electronics, chemistry industry and ceramics. Because of low lost of gas generating, this series of ammonia decomposition generator is specially suitable to be used as accessory equipment of industries mentioned above.

Product feature:
Properties and Characteristics:
1) Save water and electricity: No water is used in the the ammonia decomposing process, thus save

water effectively; The heat generated from the decomposition reaction is used to preheat the ammonia

so as to save the electricity.
2) Resistance wire can be replaced quickly: It can be replaced only within a few minutes, no need to

stop the gas production process. Therefore, the case of shutting down the furnace to cool down and

then opening the furnace to replace the resistance wire is avoided.
3) Low investment and convenient use: Matured technology, compact structure, low space requirement and no need of construction investment, easy operation, low price, high economy to extract the pure hydrogen; In order to generate hydrogen on spot, the only thing to do is to connect power and gas source.
4) Wide application scope: It can satisfy the need of most hydrogen use, especially in the dominating fields of heat treatment, powder metallurgy, electronics and so on.
5) Low operation cost: Less investment, liquid ammonia as source is cheap, low energy consumption,

high efficiency, low operation cost; It is the most economical source of the mixed protective atmosphere

of nitrogen and hydrogen.



Above is standard fittings, 50-1000Nm3/h ammonia decomposition generator is non-standard equipment, which can be provided according to demand. Fitting also can be upgraded according to requirement:
1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
2. Dew point detector can be added.
3. Gas content testing system can be added.
4. Characteristics
(1) Small investment

(2) Reliable performance and long service life

(3) Heating element

(4)  Thermal insulation material

(5) Electrical control

(6) Depressurization system

(7) Purification system

(8) Simple installation

(9) Easy operation and  maintenance

(10) High safety


Advantage:
Out pressure is adaptable between 0.05Mpa to 0.5Mpa
High security: Special furnace material, gas input and output system is special structure, which Max the

security.
