Place of Origin: | Suzhou,China |
Brand Name: | SINCE-GAS |
Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Model Number: | PO |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiate |
Packaging Details: | Normal exported wooden case |
Delivery Time: | 2 months after received down payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets/year |
Capacity: | 5-1500 Nm3/h | Purity: | 90%-94% |
---|---|---|---|
Dew Point: | -65℃ | Operate Power: | 1 KW |
Operation: | Fully Automatic | Life Span: | 8-10 Years |
Consumption: | Energy-saving | Material: | Carbon Steel/stainless Steel |
Highlight: | Medical Grade Oxygen Generator,Hospital Oxygen Generator,Cylinder Filing Industrial Oxygen Generator |

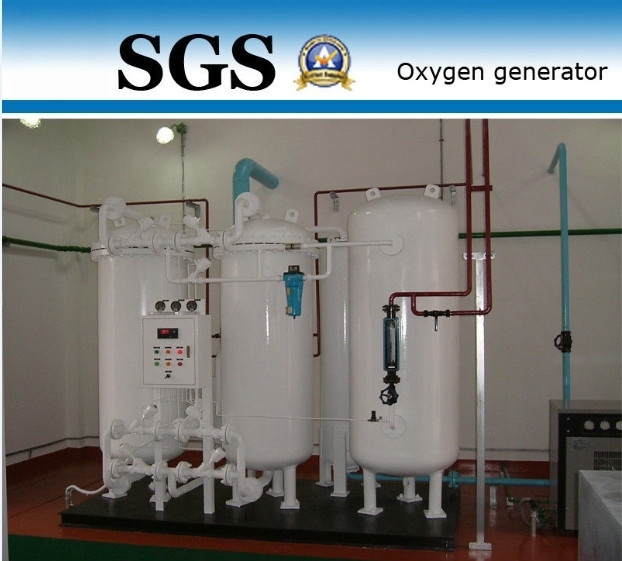

Oxygen Gas Generator Industrial Oxygen Generator With Cylinder Filing System
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and
Oxygen Generation Technology uses special grade of ZMS ( Zeolite Molecular Sieve).
The compressed air is passed through a Twin Tower PSA module interconnected with automatic
changeover valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air
will now come in contact with bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are special
grade of adsorbent which have the property of preferential adsorption of nitrogen molecules.
At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes
regeneration
which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen
gas is sent to a surge vessel where the minimum pressure will be maintained with the help of Back
pressure Regulator
Technical Specifications:
Capacity: 2~150 Nm3/h
Purity: 92±2%
Initial Pressure: 0.05~0.4 Mpa
Dew point: -65℃
Product Features
Fully Automatic Operation requiring no special attention- Manless Operation
Generates Oxygen as and when required – Plug It, Switch On & Forget
Easy to install and maintain – Skid Mounted & precommissioned
Purity of Oxygen up to 93-95% can be achieved
PSA (Twin Tower Pressure Swing Adsorption)Based up to 150 NM3/hr
VPSA (Three Tower)For 150 Nm3/hr to 1500 Nm3/hr
VSA (Three Tower) For capacities more than 1500 Nm3/hr
Application :
Water treament
Ozone generator
Environmental industry
Medical industry
Coal production
Power plant field
Cylinder filling plant
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after sale services; SINCE is the
seldom company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
