Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou,China |
| Brand Name: | PN |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | SINCE-GAS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Normal exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets/year |
| Capacity: | 5-5000 Nm3/h | Purity: | 95%-99.99% |
|---|---|---|---|
| Operate Pressure: | 0.1-0.8 Mpa | Dew Point: | -40 ℃ |
| Condition: | New | State: | Fully Automatic |
| Highlight: | Nitrogen Membrane Generators,Membrane Type Nitrogen Generator,Chemical Carrier Membrane Nitrogen Generator |
||
Chemical Carrier Membrane Nitrogen Generator Liquid Nitrogen Production
Description:
(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the
quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.
When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,
the N2 gas is absorbed and O2 is obtained by separation.

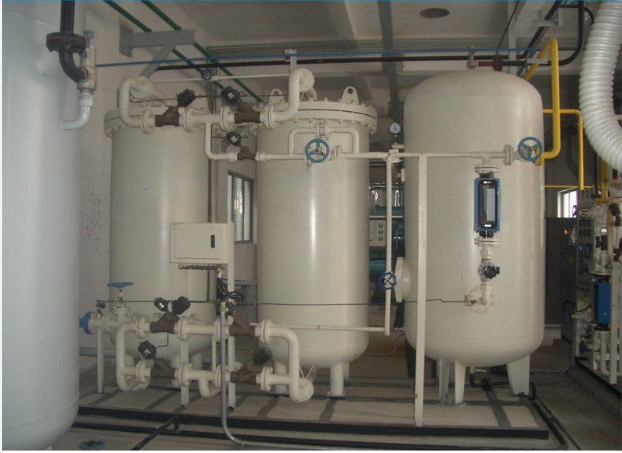

The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get
into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .
When one tower produces N2, another tower release the N2 by reducing the pressure to get the
renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to
output N2 continuously.
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Technical characteristics:
1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular
sieve.
2. Self reliance type cylinder pressure device can avoid high speed airflow rushed out , it can not cause
of molecular sieve pulverization phenomenon. equipped with the limit settlement alarm system,when it
reach the floor level of journey,the equipment will sound and light alarm by itself.
3. Configured DCS remote control system interface,it can monitor the system operate condition through
the computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable,it
also has various fault alarm.
8.It operates easily, runs stably, and has a high degree of automation, can realize no one operates.
Application:
Oil tanker ship
Chemical ship
LNG ship
Oil&Gas extraction
Oil&Gas storage project
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
