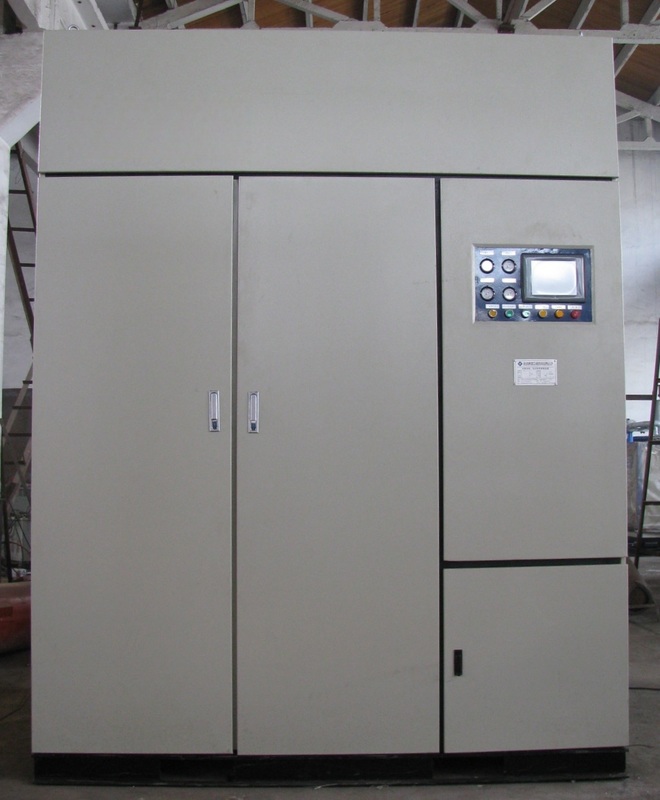

New Style High Purity Nitrogen Generator Membrane with CE / TS / ISO Certificated

New Style High Purity Nitrogen Generator Membrane with CE / TS / ISO Certificated

  • New Style High Purity Nitrogen Generator Membrane with CE / TS / ISO Certificated
New Style High Purity Nitrogen Generator Membrane with CE / TS / ISO Certificated
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Material: Carbon Steel/stainless Steel Certificates: /BV/CE/TS/ISO
Capacity: 5-5000 Nm3/h Purity: 95%-99.9995%
Dew Point: -70℃ Power Supply: 220V/50Hz
Operate Power: 1 KW
High Light:

Nitrogen Membrane Generators

,

Membrane Type Nitrogen Generator



New Style High Purity Nitrogen Generator Membrane with CE / TS / ISO Certificated





Membrane nitrogen generator

Description:

Membrane Technology

Nitrogen separation

At the heart of the Nitrogen Membrane separation technology are polymeric membrane materials that

allow for the rapid passage of one gas while minimizing the passage of another when applying pressure

gradient across the membrane. Membrane materials are formed into hollow fibers to provide high

surface area for high bolometric gas processing rates.



Selective Permeability

Nitrogen membranes separate gases by the principle of selective permeation across the membranes wall.

New Style High Purity Nitrogen Generator Membrane with CE / TS / ISO Certificated 0

For nitrogen polymeric membranes, the rate of permeation of each gas is determined by its solubility

in the nitrogen membrane material, and the rate of diffusion through the molecular free volume in the

nitrogen membrane wall. Gases that exhibit high solubility in the nitrogen membranes, and gases that

are small in molecular size, permeate faster than larger, less soluble gases.



Fast Gases and Slow Gases

"Fast" gases permeate through the nitrogen membrane wall more readily than "slow" gases, thus

separating the original gas mixture into two streams. The purity of the desired streams can be adjusted

by changing the operating conditions.

New Style High Purity Nitrogen Generator Membrane with CE / TS / ISO Certificated 1

The ability of a nitrogen membranes to separate two gases is determined by their "selectivity", the ratio

of permeabilities of the two gases. The higher the selectivity, the more efficient the separation and less

energy is needed to run the system.



Specifications:

No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

MN-3-39

MN-5-29

MN-5-295

MN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

MN-5-49

MN-8-39

MN-12-295

MN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

MN-10-49

MN-15-39

MN-25-295

MN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





    0.5





2000*1700*2250

13

14

15

16

MN-15-49

MN-22-39

MN-35-295

MN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%





0.5

2100*1800*2200

17

18

19

20

MN-20-49

MN-30-39

MN-50-295

MN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%





0.5

2200*1800*2200

21

22

23

24

MN-30-49

MN-45-39

MN-75-295

MN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%





0.5

2400*1900*2200

25

26

27

28

MN-40-49

MN-60-39

MN-100-295

MN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%





0.5

2500*2100*2500

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



Technical parameter :

Resource: Air

Pressure:5-10 bar

Pressure dew point:≤-40℃

Oil content ≤0.003mg/m3

Air change with the Nitrogen& Oxygen



Product nitrogen

Pressure:≤10bar

Normal pressure dew point:≤-40degree

Purity:95%-99.9%

Nitrogen capacity :5-1000Nm3/H



Application:

Food and beverage industries

Aircraft& motor vehicle tires

Chemical and petrochemical industries

Electronics industry

Metallurgy / heat treatment

Pharmaceutical industry

Glass and lighting industry

Oil & Gas


During the last 10 years,about 98% old customers firmly choose SINCE

Why they always choose SINCE?

Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY)

certificate,SINCE also can manufacture marine nitrogen generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.
