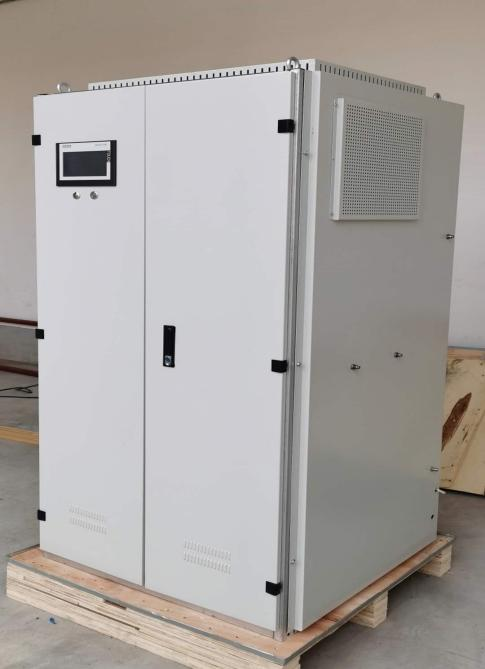

Name: Skid-Mounted Explosion-Proof Methanol Cracking Hydrogen Production Equipment with 5-20 Nm3/h Capacity and Fully Automatic Operation
Brand: JoShining Energy & Technology Co.,Ltd
SKU: HY Series
Price: 700,001.00 USD
Availability: InStock

Home > Products > Methanol Cracking >

Skid-Mounted Explosion-Proof Methanol Cracking Hydrogen Production Equipment with 5-20 Nm3/h Capacity and Fully Automatic Operation

Low-Cost Hydrogen Production

Methanol Cracking Hydrogen Generator

Skid-Mounted Hydrogen Equipment

Place of Origin:

China

Brand Name:

Joshining

Certification:

Explosion-Proof Skid-Mounted

Model Number:

HY Series

Request A Quote

Skid-Mounted Explosion-Proof Methanol Cracking Hydrogen Production Equipment with 5-20 Nm3/h Capacity and Fully Automatic Operation

Product Details

Technology:

Methanol Cracking / Catalytic Decomposition

Hydrogen Purity:

5N (99.999% Mol)

Output Pressure:

0.1 - 1.0 MPa G Adjustable

Feedstock:

Industrial Methanol (GB 338-2011)

Model Range:

HY-5 / HY-10 / HY-15 / HY-20

Capacity Range:

5 - 20 Nm3/h

Automation:

Fully Automatic, Unattended Operation

Configuration:

Skid-Mounted Explosion-Proof

Highlight:

Low-Cost Hydrogen Production

Methanol Cracking Hydrogen Generator

Skid-Mounted Hydrogen Equipment

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Export wooden case packaging

Delivery Time

30-60 days after order confirmation

Payment Terms

T/T,L/C

Supply Ability

Customized to order

Skid-Mounted Explosion-Proof Methanol Cracking Hydrogen Production Equipment with 5-20 Nm3/h Capacity and Fully Automatic Operation

Get Best Price

High Purity 99.9999% H2 Hydrogen Generation Plant with 3000 Nm3/h Capacity and Low Energy Consumption Methanol Cracking System

Get Best Price

99%-99.9999% Purity Methanol Cracking Hydrogen Generation Unit

Get Best Price

Hydrogen Production Methanol Cracking System For Bell Type Furnace Annealing

Get Best Price

Contact Now

Product Description

Methanol Cracking Hydrogen Production Equipment Low-Cost Hydrogen Generator 5-20 Nm3 per Hour

Low-Cost Methanol Cracking Hydrogen Production Equipment

Our methanol cracking hydrogen production equipment converts industrial methanol into high-purity hydrogen through an efficient catalytic decomposition process, delivering the lowest hydrogen production cost for industrial users. Backed by 20 years of experience in industrial gas equipment and proven across more than 40 industries, the system provides stable, safe and fully automated on-site hydrogen generation.

Key Advantages

Low Energy Consumption & Low Cost: optimized HY catalyst and heat recovery design minimize energy use and hydrogen production cost.
Compact Footprint: skid-mounted integrated design covers a small area and is easy to install.
Mature & Safe Technology: proven cracking process with explosion-proof skid-mounted configuration.
High Automation: unattended operation with remote monitoring and intelligent diagnostics.
Readily Available Feedstock: industrial methanol per GB 338-2011 is stable in supply and price.

Reaction Mechanism

The process follows three reaction stages:

Decomposition: CH₃OH → CO + 2H₂
Water-gas shift: H₂O + CO → CO₂ + H₂
Overall: CH₃OH + H₂O → CO₂ + 3H₂

Hydrogen Output Specifications

Hydrogen purity: 5N (99.999% mol)
Output pressure: 0.1 - 1.0 MPa*G adjustable

Model Parameters

Model	Hydrogen Output (Nm³/h)	Methanol Consumption (kg/h)	Installed Power (kW)	Running Power (kW)	Dimensions (LWH mm)
HY-5	5	3.125	5	3.125	120015002000
HY-10	10	6.25	10	6.25	150015002000
HY-15	15	9.375	15	9.375	180018002000
HY-20	20	12.5	20	12.5	180018002000

Applications

Ceramic tunnel kilns
Float glass melting furnaces
Metal bright annealing furnaces
Powder metallurgy sintering furnaces
Hydrogen refueling stations
Petrochemical hydrogenation reactors

Service Scope

We provide turnkey solutions covering complete equipment supply, on-site installation, technical service and operator training. Every system is equipped with a remote monitoring and intelligent diagnostics platform for 24-hour professional support.
