Name: EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control
Brand: JoShining Energy & Technology Co.,Ltd
SKU: EPB-40MZ
Price: 38500.00 USD
Availability: InStock

Home > Products > PSA Nitrogen Generator >

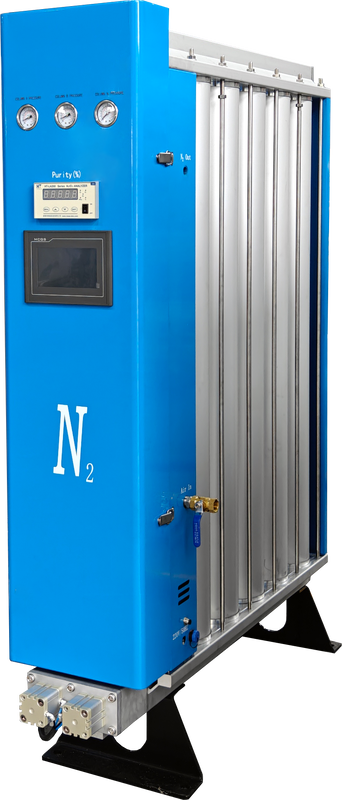

EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control

Low Air-Nitrogen Ratio 4.2 to 1

VP Adaptive Energy Saving Control

Modular Aluminum Alloy Cavity Design

Place of Origin:

Guangdong, China

Brand Name:

Joshining

Certification:

ISO 9001:2015, CE

Model Number:

EPB-40MZ

Request A Quote

Product Details

Nitrogen Flow Rate:

40 Nm3/h

Nitrogen Purity:

98% (95-99.999% Available)

Air-to-Nitrogen Ratio:

4.2:1 At 99.99% Purity

Air Demand:

1.2 Nm3/min

Adsorption Pressure:

0.7 MPa

Nitrogen Dew Point:

-40°C To -70°C

Control System:

PLC With VP Energy-Saving Logic

Cavity Material:

6063-T5 Aviation Grade Aluminum Alloy

Noise Level:

≤80 DB

Power Supply:

220V/380V 50Hz/60Hz

Dimensions (LxWxH):

400 X 1175 X 1810 Mm

Weight:

338 Kg

Outlet Connection:

Rp1/2

Highlight:

Low Air-Nitrogen Ratio 4.2 to 1

VP Adaptive Energy Saving Control

Modular Aluminum Alloy Cavity Design

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 38500.00 / Set

Packaging Details

export-grade plywood case with vacuum-sealed moisture barrier, shock-proof foam inserts, and reinforced steel strapping

Delivery Time

15-25 working days after deposit

Payment Terms

T/T,L/C

Supply Ability

100 Sets per Month

EPV-15MZ+ Plus Twin Tower PSA Nitrogen Generator with 99.999% Ultra High Purity and 15Nm3/h Flow Rate Featuring PLC Control

Get Best Price

On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving

Get Best Price

Smart Size Portable PSA Nitrogen Gas Plant Automated Operation

Get Best Price

Video

Nitrogen Generator Purity 99.9995 Lithium Electricity Industry

Get Best Price

Contact Now

Product Description

EPB-40MZ Modular PSA Nitrogen Generator 40Nm³/h 98% Purity 4.2:1 Air Ratio Energy Saving VP Control

EPB-40MZ Modular PSA Nitrogen Generator — Industry-Leading Energy Efficiency

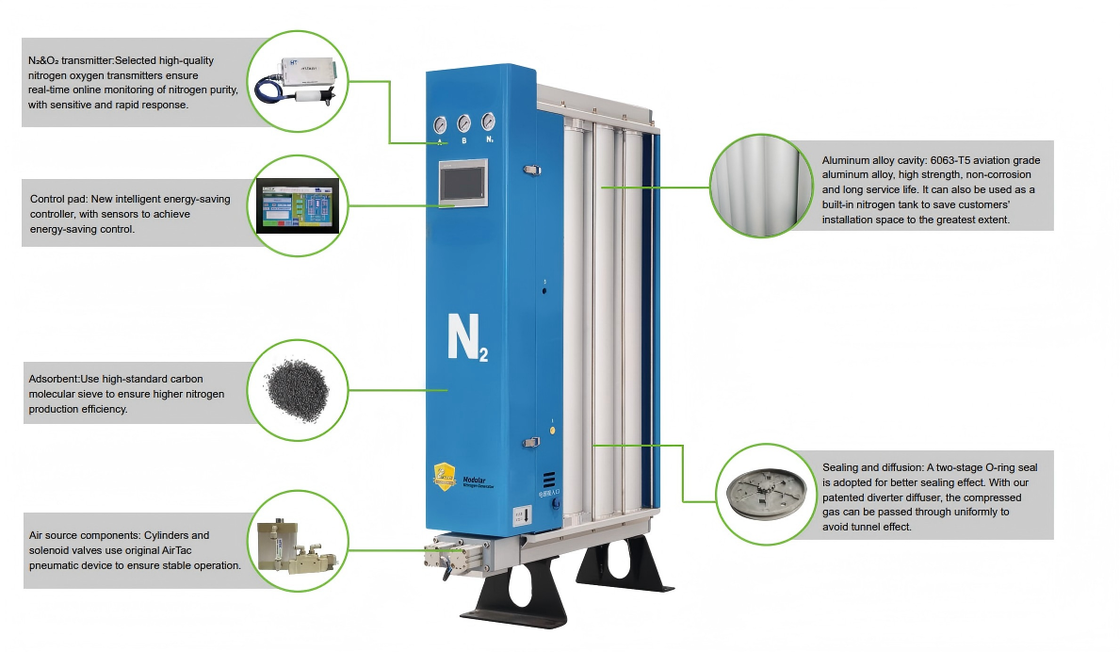

The EPSEA EPB-40MZ is a modular Pressure Swing Adsorption (PSA) nitrogen generator engineered for maximum energy efficiency. With a class-leading 4.2:1 air-to-nitrogen ratio at 99.99% purity, it consumes 15% less compressed air than conventional twin-tower systems (5:1 ratio), directly reducing operational energy costs.

Key Energy-Saving Technologies

VP Control Logic

Adapts to real-time load fluctuations, automatically regulating switching cycles to reduce air consumption by 15-50% under partial-load conditions.

Optimized Air Ratio

High-performance carbon molecular sieve achieves 4.2:1 air-to-nitrogen ratio — vs. industry average 5:1 — requiring only 2.8Nm³/min compressed air for 40Nm³/h N₂ output.

Auto Standby Mode

Intelligent controller automatically pauses operation when nitrogen demand drops, eliminating idle energy waste.

Average Split Flow

Patented diffusion technology maximizes adsorbent utilization, ensuring every gram of carbon molecular sieve works efficiently.

Technical Specifications

Nitrogen Flow: 40 Nm³/h
Nitrogen Purity: 98% (up to 99.999%)
Air Demand: 1.2 Nm³/min
Adsorption Pressure: 0.7 MPa
Nitrogen Dew Point: -40°C to -70°C
Cavity Material: 6063-T5 Aluminum Alloy
Control System: PLC + HMI Touch Screen
Dimensions: 400 * 1175 * 1810 mm
Weight: 338 kg
Power Supply: 220V/380V 50Hz/60Hz

Built for Industrial Reliability

The modular aluminum alloy cavity design eliminates internal corrosion risks, extending service life beyond 20 years. Unlike traditional pressure vessel designs, the module requires no annual pressure vessel inspection, saving both time and compliance costs. Integrated high-resolution HMI provides real-time monitoring of nitrogen pressure, purity, flow rate, and system status with automatic unqualified nitrogen evacuation.

Energy Comparison: A 40Nm³/h EPB-40MZ modular system consumes only 2.8Nm³/min of compressed air, while an equivalent twin-tower system requires 3.3Nm³/min — that's 15% less energy for the same output. With VP control logic engaged, air savings can reach up to 50% under partial-load operation.
