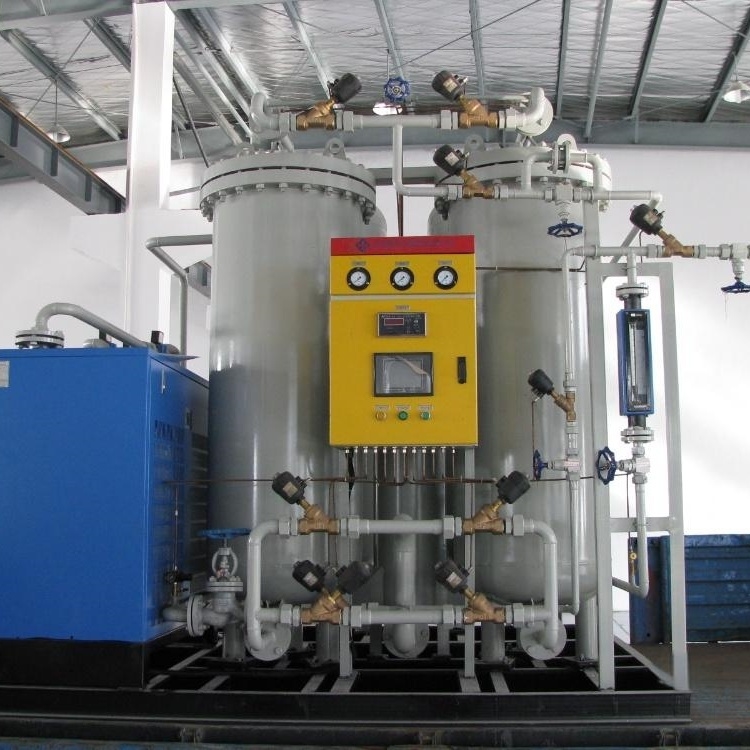

CE / Energy Saving PSA Nitrogen Generator Nitrogen Generation Package

CE / Energy Saving PSA Nitrogen Generator Nitrogen Generation Package

  • CE /  Energy Saving PSA Nitrogen Generator Nitrogen Generation Package
CE /  Energy Saving PSA Nitrogen Generator Nitrogen Generation Package
Product Details:
Place of Origin: China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: The normal packing is wooden box, if export to Europe country.the wooden box will be fumigated. if the inner packing is too tighter, we may use PE film to wrap the machine.or according to customer's special requirements.
Delivery Time: 2 months after received down payment
Payment Terms: T/T or west union,L/C
Supply Ability: 1,000 sets per year
Contact Now
Detailed Product Description
High Light:

psa nitrogen generation system

,

psa nitrogen gas generator

,

psa nitrogen plant Energy Saving



CE / Energy Saving PSA Nitrogen Generator N2 Generation Package





Description:



What is PSA Technology?

PSA Technology is a very mature technology and has been around since the 1970's. In fact, thousands

of PSA plants are serving customers worldwide. We have supplied our PSA plants to customers in over

56 countries.
We explain the PSA technology below using a simple process diagram.



CE /  Energy Saving PSA Nitrogen Generator Nitrogen Generation Package 0


Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the

principle of air separation by adsorbing Oxygen and separating Nitrogen.

Pressure Swing Adsorption (PSA Nitrogen) process comprises of 2 vessels filled with Carbon Molecular

Sieves (CMS). (see image below for detail of vessels).

Step 1: Adsorption
Pre filtered compressed air is passed through one CMS filled vessel. Oxygen is adsorbed by the CMS

and Nitrogen comes out as the product gas. After some time of operation, the CMS inside this vessel 'gets saturated with Oxygen and can no longer adsorb.
Step 2: Desorption
Upon saturation of the CMS in the vessel, the process switches nitrogen generation to the other vessel,

while

allowing the saturated bed start the process of desorption and regeneration. The waste gas (oxygen,

carbon

 dioxide, etc.) is discharged into atmosphere.
Step 3: Regeneration
In order to regenerate the CMS in the vessel, part of the Nitrogen produced by the other tower is

purged into this tower. This allows for quick regeneration of the CMS and to make it available for

production in the next cycle.

The cyclical nature of the process between the two vessels ensures continuous production of pure

Nitrogen.



CE /  Energy Saving PSA Nitrogen Generator Nitrogen Generation Package 1



Benefits of our PSA Nitrogen Generators:



·  Experience - We have supplied over 1000 Nitrogen Generators all over the world.

·  German Technology - We have German collaboration for our technology and have fine tuned this

technology

 to gain proprietary advantages in several key areas.

·  Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation

and no

personnel are required for operating the Gas plant.

·  Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by

optimum

 design to efficiently use the compressed air and maximize production of Nitrogen gas.





Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly





Technical parameter :



Resource: Air

Pressure:5-10 bar

Pressure dew point:≤10degree

Oil content ≤0.003mg/m3

Air -change with the Nitrogen& Oxygen



Product nitrogen

Pressure:≤9bar

Normal pressure dew point:≤-40degree

Purity:95%-99.9995%

Nitrogen capacity :5-5000Nm3/H
During the last 10 years,about 98% old customers firmly choose SINCE



Why they always choose SINCE?



Many years of experience and expertise in manufacturing and supplying gas plants;



,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY)

 certificate,SINCE also can manufacture marine nitrogen generator.



Excellent infrastructure set up teamed by experienced and qualified engineers.



Sophisticated and developed R&D wing in assistance for installation and use of plants.
