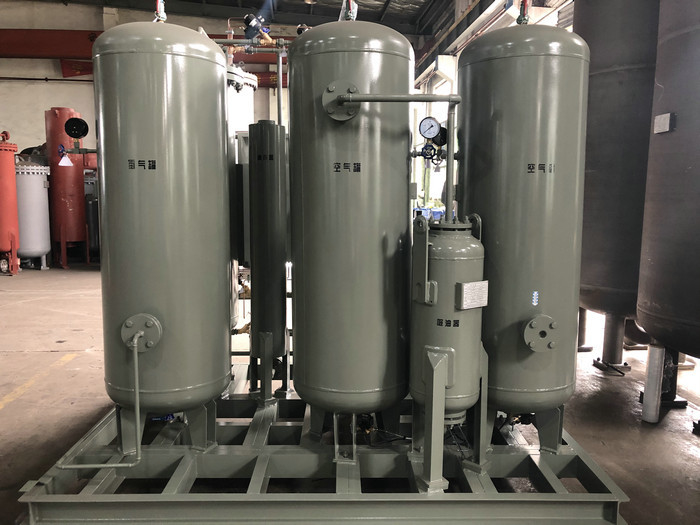

PSA Nitrogen Generator, With Carbon Molecular Sieve, Industrial Application

PSA Nitrogen Generator, With Carbon Molecular Sieve, Industrial Application

  • PSA Nitrogen Generator, With Carbon Molecular Sieve, Industrial Application
  • PSA Nitrogen Generator, With Carbon Molecular Sieve, Industrial Application
PSA Nitrogen Generator, With Carbon Molecular Sieve, Industrial Application
Product Details:
Place of Origin: Suzhou, China
Brand Name: SINCE
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /per year
Contact Now
Detailed Product Description
Material: Stainless Steel Name: PSA Nitrogen Generator
Purity: 95%-99.9995% Sorbent: Carbon Molecular Sieve
Operate Power: 1 KW Application: Metallurgy, Industrial
Capacity: 5~5000Nm3/hr Power Feature: Low Consumption
Dew Point: -70 Brand: PN,
Origin: Suzhou, China
Highlight:

Carbon Molecular Sieve PSA Gas Generator

,

Industrial PSA Type Nitrogen Generator

PSA Nitrogen Generator, With Carbon Molecular Sieve Sorbent, Industrial Application



PSA Nitrogen Generator Principles:


PSA nitrogen generator uses a carbon molecular sieve as sorbent and produces nitrogen by making use of the PSA principle. Under certain pressure, a carbon molecular sieve has different oxygen/nitrogen adsorption capacity, ie much more oxygen adsorption capacity than nitrogen adsorption capacity. PLC controls the pneumatic valve on/off to realize two towers alternate adsorption and desorption as per pressure change, carries out oxygen/nitrogen separation, and produces nitrogen with desired purity.
PSA Nitrogen Generator incorporates one air compressor, refrigerant air dryer and filters, main nitrogen generator, air buffer tank, and nitrogen buffer tank. With higher nitrogen pressure required, one BROTIE oil-free nitrogen compressor will be equipped after the nitrogen generator to increase the nitrogen pressure to the required pressure.
Compressed air is purified through the air dryer and filters to a certain level for the main generator to work with. Air buffer is incorporated for a smooth supply of compressed air thus reducing the fluctuation of work demand for air compressors. The generator produces nitrogen with PSA (pressure swing adsorption) technology, a time-proven nitrogen generation method. Nitrogen with a desired purity is delivered to a nitrogen buffer tank for a smooth supply of product gas. Nitrogen in the buffer tank is maintained at 6barg pressure. After an oil-free nitrogen compressor, the pressure will be compressed to the required pressure. It is adjustable for you to adjust the outlet pressure by a pressure regulator valve so that it can be used for your specific use.



PSA Nitrogen Generator Details



95%-99.9999% purity
3-3000Nm3/Hour capacity
Dew point: ≤-40
Air source pressure: 0.8-1.0Mpa
Nitrogen-making pressure: 0.1-0.75Mpa
Oxygen content:500ppm-3ppm
Water content:5-20ppm



Material
Carbon steel, Stainless steel 304



NOTICE
The following parameters, drawings, and photos are only for your reference. The final accurate product information will be supplied with the quotation packages.





PSA Nitrogen Generator, With Carbon Molecular Sieve, Industrial Application 0

Brief Principles

Each gas has a characteristic adsorption rate when adsorbed by a Carbon Molecular Sieve (CMS). CMS has a large surface area containing a volume of micro pores and passageways. Oxygen has a higher adsorption rate than nitrogen. When compressed air enters CMS, nitrogen molecules can pass through this large surface. And oxygen molecules are adsorbed to the surface area.
As the CMS is saturated with oxygen, it should be depressurized to regenerate for the next cycle. We use two towers filled with CMS to produce a continuous stream of nitrogen.
During depressurization, the nitrogen of lower purity than required is transferred to another tower called pressure equalization. Pressure equalization donates to higher efficiency and less energy consumption.
Know-how in the definite time and ways to equalize the pressure is the key to the best results.




 PSA Nitrogen Generator Manufacturer Professional




When the process adopts lifting air, oxygen and nitrogen have different diffusion rates and adsorptive capacity to separate oxygen from nitrogen on a carbon molecular sieve(CMS). When air is compressed

to 0.8MPa, the air source enters in pressure-swing adsorption tower for separation after being purified through the dry and oil-water separation process (filter). Oxygen molecules are diffused and adsorbed in a carbon molecular sieve under pressure. Non-adsorbed nitrogen is discharged from the outlet of the adsorption tower. Oxygen is desorbed, discharged, and purged in an adsorption tower under depressurization. Moreover, adsorbents can be recycled. Paige brand.



PSA Nitrogen Generator Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

twenty two

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

twenty one

twenty two

twenty three

twenty four

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note: For more news please free to contact and send an email to us directly
