Industrial 100kW Hydrogen Fuel cell, Stationary Power Plant.
| Power: | 100kW | Output voltage: | 415VAC |
| Power source: | Hydrogen | Life: | 25years |
| Size: | Containerized | Application: | Industrial, City, House, Buildings |
| Stamdard: | GB | Trade Term: | EXW，FOB |
| OEM: | Yes | ||
| High Light: | 100kW Hydrogen Stationary Power Plant,Data Center Hydrogen Stationary Power Plant,Industrial Hydrogen Power Plant 415V |
||
| Attribute | Value |
|---|---|
| Power | 100kW |
| Output voltage | 415VAC |
| Power source | Hydrogen |
| Life | 25 years |
| Size | Containerized |
| Application | Industrial, City, House, Buildings |
| Standard | GB |
| Trade Term | EXW, FOB |
| OEM | Yes |

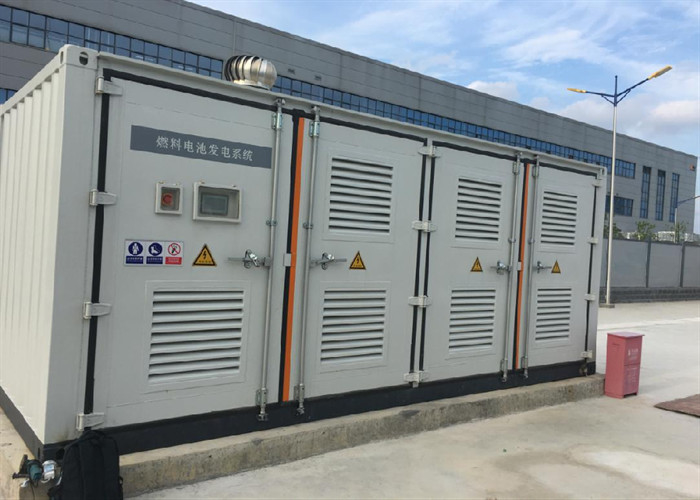

100kW Hydrogen Stationary Power Plant for Data Center
We have delivered a 100-kilowatt power plant to a Chinese client, utilizing hydrogen stored in metal hydride tanks as a backup power source for the data center.
| System Rated Power | 100kW |
| Output Voltage | 415VAC |
| Power Plant Efficiency | >39% |
| -30℃ Cold Start-up to Standby | ≤ 15min |
| Standby to Idle Power | ≤30s @≥5℃ |
| Idle Power Output | ≤20kW |
| Hydrogen Purity | ≥99.97% Dry Hydrogen (CO<0.1ppm) |
| Hydrogen Inlet Pressure | 11-13 Bar |
| Coolant | Up to 50% pure ethylene glycol 50% to 100% (deionized water); <100μm particle size |
| Communication Protocol | CAN2.0B/Modbus TCP |
| Operating Relative Humidity | 99% No Condensing |
| Installation Environment | Outdoors -30°C ~ +45°C |
