High Capacity Membrane Nitrogen Generator With High Nitrogen Purity
| Features: | High Capacity, High Nitrogen Purity | Name: | Membrane Nitrogen Generator |
| Capacity: | High Capacity | Purity: | 95%-99.9995% |
| Dew point: | -70℃ | Power supply: | 220V/50Hz |
| Feature: | High Nitrogen Purity | ||
| High Light: | High capacity membrane nitrogen generator,Membrane nitrogen generator high purity,Nitrogen generator with high capacity |
||
High Capacity Membrane Nitrogen Generator With High Nitrogen Purity
Pressure Swing Adsorption working principle:
PSA technology allows nitrogen molecules to be isolated from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS), the adsorbent in the generator, retains all those molecules and only lets the nitrogen pass through to the outlet. While the CMS in one vessel regenerates a second, connected vessel goes through the same adsorption cycle. These two connected vessels work together to ensure a near-continuous flow of nitrogen gas.
Membrane Nitrogen Generator Features
1. Specific pressure protection measure of molecular sieve,molecular sieve is difficult of pulverization,long sieve life.
2. Low energy consumption,the product of high nitrogen purity.
3. Reasonable internal componets,air distribution uniformity,reduce air high-speed impact.
4. The whole equipment of high degree of automation
5.Multifunctional monitoring system,realize gas,purity,pressure LCD online display,equipment failure warning,maintenance tips,full;y grasp,equipment running states,
Membrane Nitrogen Generator Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
MN-3-39 MN-5-29 MN-5-295 MN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
MN-5-49 MN-8-39 MN-12-295 MN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
MN-10-49 MN-15-39 MN-25-295 MN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
MN-15-49 MN-22-39 MN-35-295 MN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
MN-20-49 MN-30-39 MN-50-295 MN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
MN-30-49 MN-45-39 MN-75-295 MN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
MN-40-49 MN-60-39 MN-100-295 MN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||

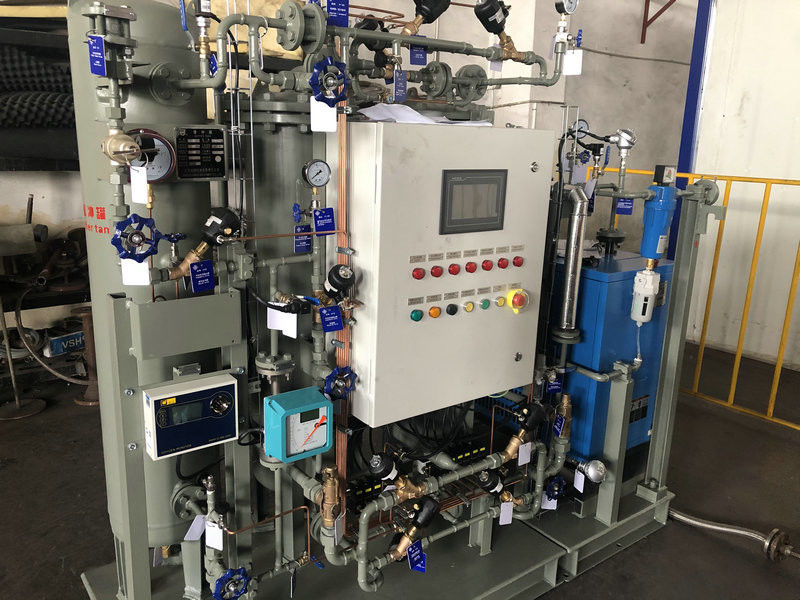

Membrane Nitrogen Generator Details
After Sales Service Commitment
Free warranty for the equipments during the promised period
1. The nitrogen generator,1 year warranty, maintenance responding time is less than eight hours.
2. Ancillary equipment ,1 year warranty, maintance responding time is less than 8 hours.
3. Lifelong maintance service in a timely manner, the responding time is less than 8 hours.
4.Provide 24-hour hotline service.
5.Return visit every six months (callback or on the spot).
6. General failure:within 2 hours of repair
7. Serious failure:within 12 hours of repair
8. Supply accessories in a timely manner, the delivery time is generally 1-7 days.
9.Free repair at the expiry time of warranty
