PSA Type Oxygen Generator High Nitrogen Purity 2~150 Nm3/H

PSA Type Oxygen Generator High Nitrogen Purity 2~150 Nm3/H

Oxygen Generator Introduction

Nitrogen generation system uses pressure swing adsorption principles at normal temperatures, along with clean, compressed air as the raw material, and a carbon molecular sieve as the adsorbent, the adsorbent we use from Japan & German guarantee the working life over 20 years,
Due to oxygen and nitrogen different sieves, CMS under pressure adsorbing the oxygen pass through nitrogen, by pneumatic valve control PLC system to get required nitrogen purity .

Oxygen Generator Priciple

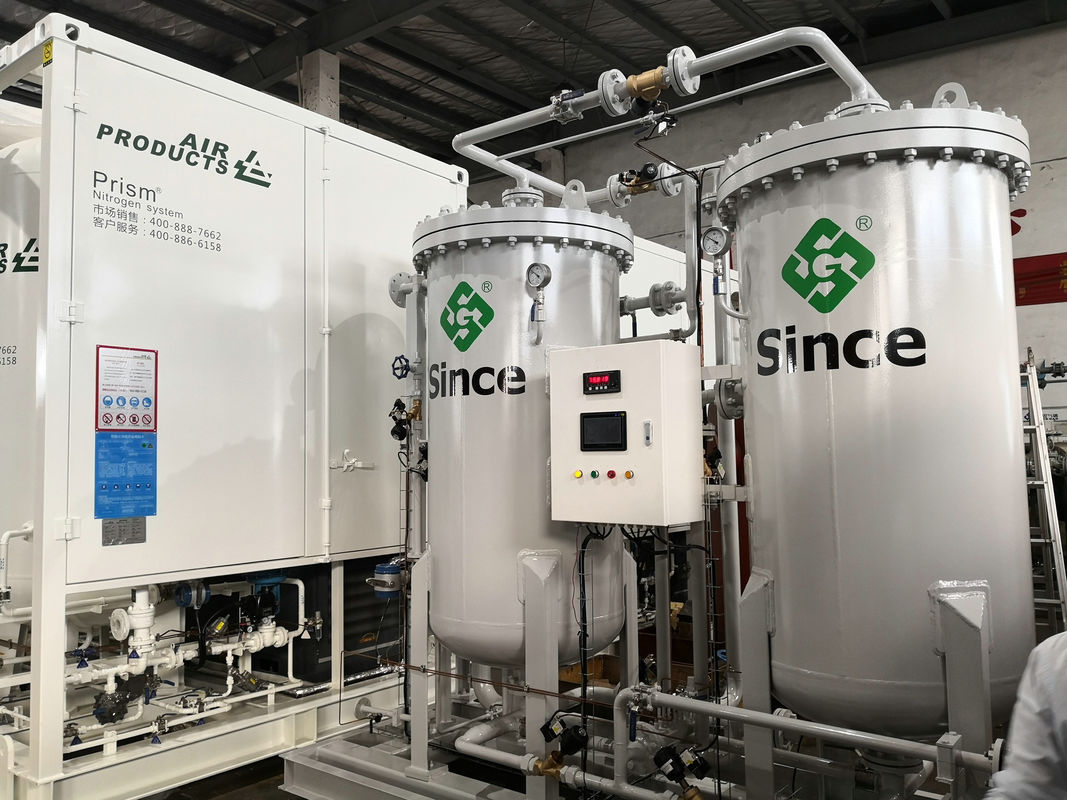

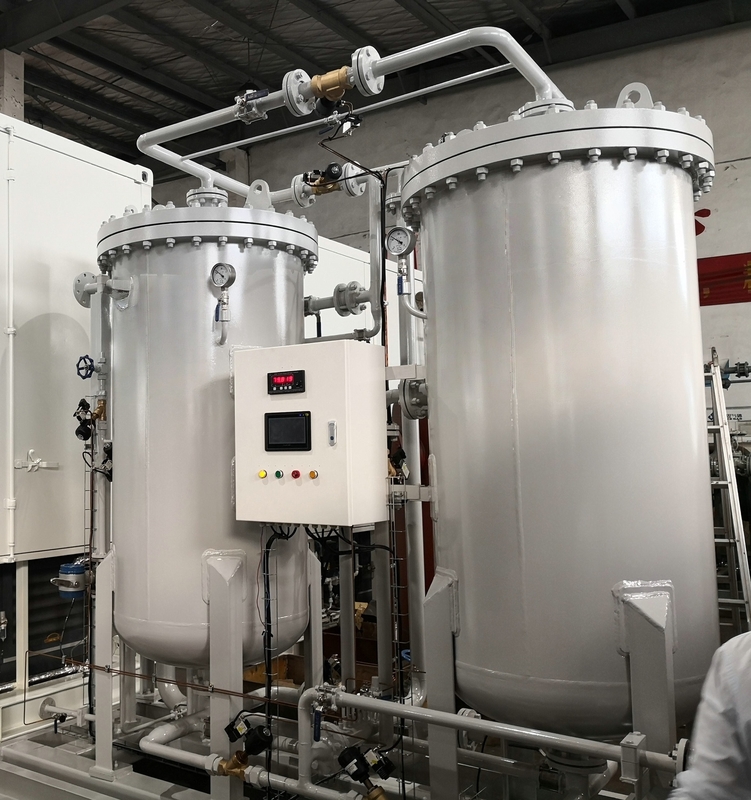

PSA technology allows nitrogen molecules to be isolated from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS), the adsorbent in the generator, retains all those molecules and only lets the nitrogen pass through to the outlet. While the CMS in one vessel regenerates a second, connected vessel goes through the same adsorption cycle. These two connected vessels work together to ensure a near- continuous flow of nitrogen gas.

Oxygen Generator Technical Specifications:

Capacity: 2~150 Nm3/h

Purity: 92±2%

Initial Pressure: 0.05~0.4 Mpa

Dew point: -65℃

Medical Oxygen Generator Features

 1.  Full Automation

      All systems are designed for un-attended operation and automatic Oxygen demand  adjustment.

 2.  Lower Space Requirement

      The design and Instrumentation makes the plant size very compact, assembly on skids,

prefabricated and supplied from factory.

 3.  Fast Start-up

Start up time is about 30 minutes to get desired Oxygen purity. So these units can be switched

ON & OFF as per Oxygen demand changes.

 4.  High Reliability

It's very reliable for continuous and steady operation with constant Oxygen purity. Plant availability

time is better than 93% always.

 5.  Zeolite Molecular Sieves Life

Expected Zeolite Molecular Sieves life is more than 10-years i.e. whole life time of Oxygen plant. So no

 replacement costs.

Oxygen Generator Application :

Electronics industry

Metallurgy / heat treatment

Pharmaceutical industry

Glass and lighting industry

Oil & Gas

Why they always choose SINCE?

Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

 company who got ,TS (Manufacture License of special equipment)

CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.
