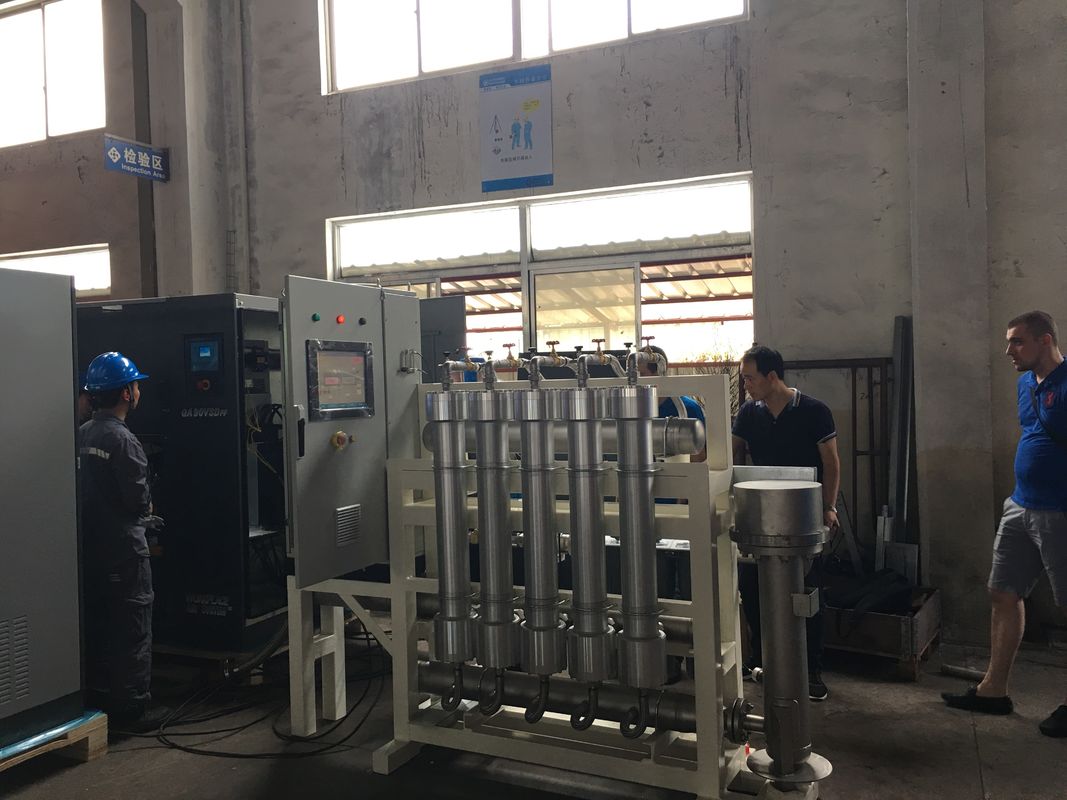

Long Life Cryogenic Nitrogen Generator , Gas Nitrogen Production Equipment

Long Life Cryogenic Nitrogen Generator , Gas Nitrogen Production Equipment

  • Long Life Cryogenic Nitrogen Generator , Gas Nitrogen Production Equipment
Long Life Cryogenic Nitrogen Generator , Gas Nitrogen Production Equipment
Product Details:
Place of Origin: Suzhou,China
Brand Name: PN
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: SINCE-GAS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Name: Nitrogen Production Equipment Feature: Long Life
Operate Pressure: 0.1-0.8 Mpa Dew Point: -40 ℃
Condition: New State: Fully Automatic
High Light:

Nitrogen Membrane Generators

,

Nitrogen Membrane Unit

,

Long Life Nitrogen Production Equipment

Long Life Cryogenic Nitrogen Generator , Gas Nitrogen Production Equipment



Cryogenic Nitrogen Generator Description:



Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the

principle of air separation by adsorbing Oxygen and separating Nitrogen.

Pressure Swing Adsorption (PSA Nitrogen) process comprises of 2 vessels filled with Carbon Molecular Sieves

 (CMS). (see image below for detail of vessels).

N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the

quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.

When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,

the N2 gas is absorbed and O2 is obtained by separation.



The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get

into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .

When one tower produces N2, another tower release the N2 by reducing the pressure to get the

renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to

output N2 continuously.



Cryogenic Nitrogen Generator Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



Technical characteristics:

More reliable:
* Standardized air separation systems based on proven state of the art technologies in history of many

years application in fields.
* Simplified engineering design idea with much less moving parts, guarantees maximum reliability and

minimal maintenance
More economical:
* More advanced and more economical air separation modules.
* REFLUX composition control system reduces air consumption capacity, saves energy cost.
* Patented Energy Efficiency System (EES) enables our systems to produce product gases based on

actual demand.



During the last 10 years,about 98% old customers firmly choose SINCE

Why they always choose SINCE?

Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

 company who got ,TS (Manufacture License of special equipment)

CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.
