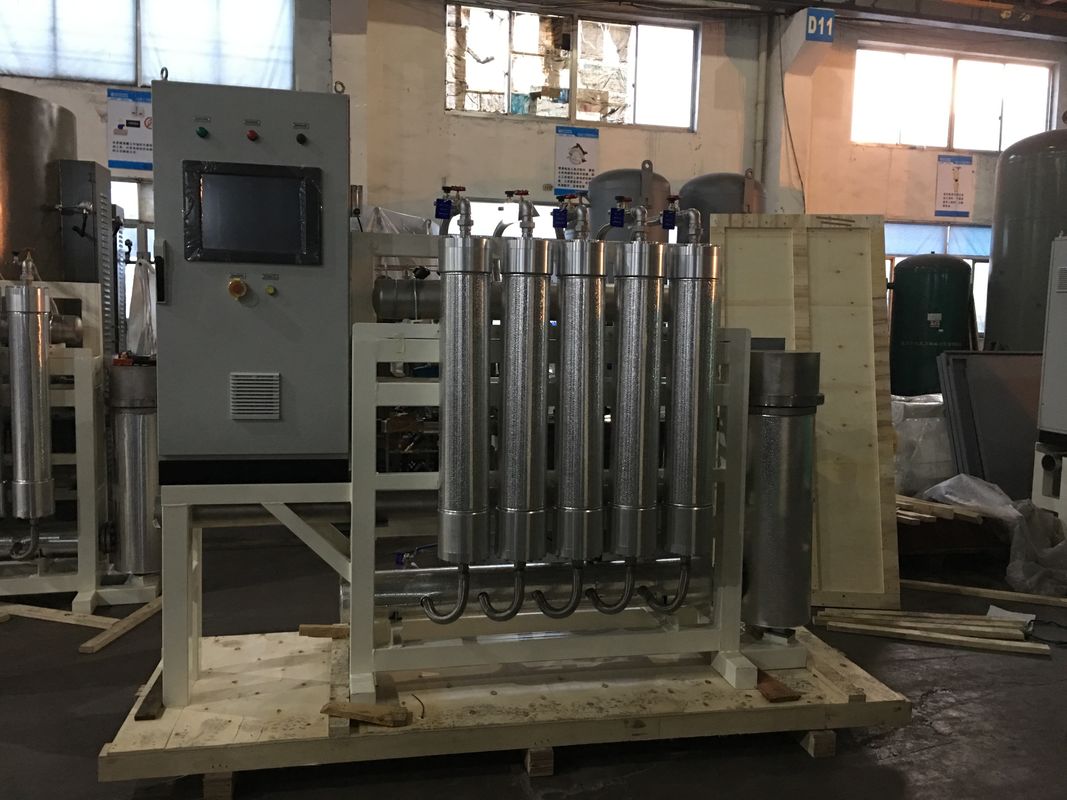

Custom Made PSA Nitrogen Gas Plant , Industrial High Pressure Nitrogen Generator
| Name: | PSA Nitrogen Gas Plant | Certificates: | /BV/CE/TS/ISO |
| Capacity: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew point: | -70℃ | Power supply: | 220V/50Hz |
| Operate power: | 1 KW | ||
| High Light: | Nitrogen Membrane Generators,Membrane Type Nitrogen Generator,Custom Made PSA Nitrogen Gas Plant |
||
Custom Made PSA Nitrogen Gas Plant , Industrial High Pressure Nitrogen Generator
PSA Nitrogen Gas Plant Application:
- Aircraft& motor vehicle tires
- Chemical and petrochemical industries
- Electronics industry
- Metallurgy / heat treatment
- Pharmaceutical industry
- Glass and lighting industry
- Oil & Gas
PSA Nitrogen Gas Plant Specifications:
No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
1 2 3 4 | MN-3-39 MN-5-29 MN-5-295 MN-8-295 | 3 5 5 8 | 99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
5 6 7 8 | MN-5-49 MN-8-39 MN-12-295 MN-15-29 | 5 8 12 15 | 99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
9 10 11 12 | MN-10-49 MN-15-39 MN-25-295 MN-30-39 | 10 15 25 30 | 99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
13 14 15 16 | MN-15-49 MN-22-39 MN-35-295 MN-45-29 | 15 22 35 45 | 99.99% 99.9% 99.5% 99% |
0.5 | 2100*1800*2200 |
17 18 19 20 | MN-20-49 MN-30-39 MN-50-295 MN-60-29 | 20 30 50 60 | 99.99% 99.9% 99.5% 99% |
0.5 | 2200*1800*2200 |
21 22 23 24 | MN-30-49 MN-45-39 MN-75-295 MN-88-29 | 30 45 75 88 | 99.99% 99.9% 99.5% 99% |
0.5 | 2400*1900*2200 |
25 26 27 28 | MN-40-49 MN-60-39 MN-100-295 MN-120-29 | 40 60 100 120 | 99.99% 99.9% 99.5% 99% |
0.5 | 2500*2100*2500 |
... | ... | ... | ... | ... | ... |
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly | |||||
Technical parameter :
Resource: Air
Pressure:5-10 bar
Pressure dew point:≤-40℃
Oil content ≤0.003mg/m3
Air change with the Nitrogen& Oxygen
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY)
certificate,SINCE also can manufacture marine nitrogen generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
