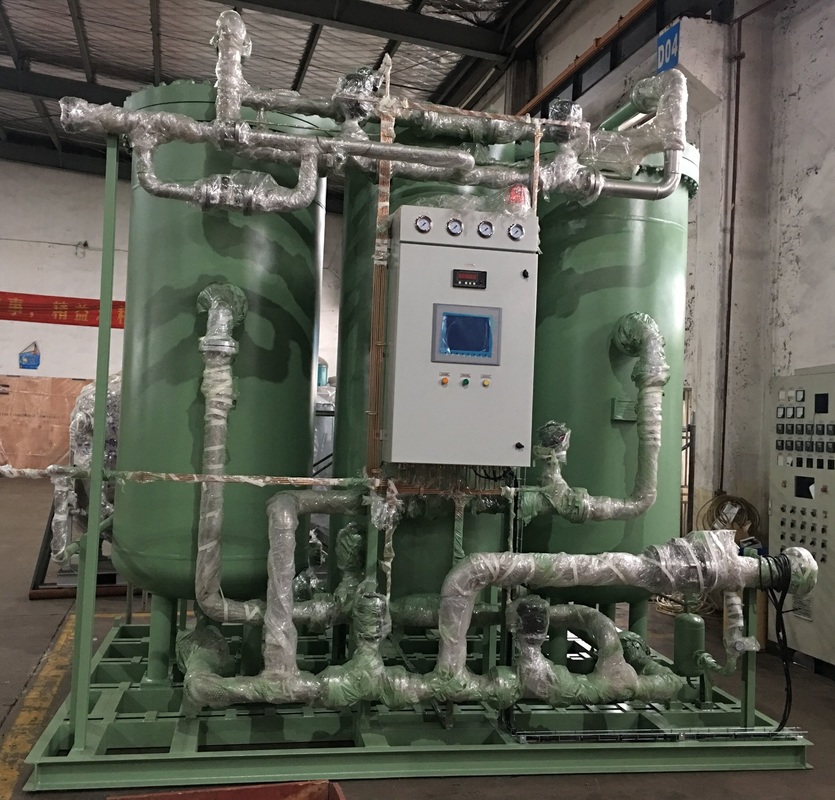

High Purity Membrane Nitrogen Generator With High Pressure Air Compressor

High Purity Membrane Nitrogen Generator With High Pressure Air Compressor

  • High Purity Membrane Nitrogen Generator With High Pressure Air Compressor
High Purity Membrane Nitrogen Generator With High Pressure Air Compressor
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/year
Contact Now
Detailed Product Description
Name: Membrane Nitrogen Generator Capacity: 5-5000 Nm3/h
Purity: 95%-99.9995% Dew Point: -70℃
Power Supply: 220V/50Hz Compressor: High Pressure Air Compressor
High Light:

Nitrogen Membrane Generators

,

Nitrogen Membrane Unit

High Purity Membrane Nitrogen Generator With High Pressure Air Compressor



Benefits of our Membrane Nitrogen Generator:



· Experience - We have supplied over 1000 Nitrogen Generators all over the world.

· German Technology - We have German collaboration for our technology and have fine tuned this technology to gain proprietary advantages in several key areas.

· Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation and no personnel are required for operating the Gas plant.

· Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.



Environment condition of equipment



1.installation place: ground grading, without foundation, but it is necessary to have a sewage discharge

ditch.

2.The reserved area: about 200m2.

3.Ambient temperature: ≤40°C.

4.Relative humidity: ≤80%.

5.Power:440V/ 380V/220V,60/Hz/ 50Hz



Membrane Nitrogen Generator Specification:



Item

Technical

Remark

N2 flow rate

1200Nm3/h

 Standard state

N2 purity

≥95.0%

 non-oxygen content

N2 outlet pressure

0.1~0.6Mpa

 Gage pressure, adjustable

N2 outlet dew point

≤ 45 °C  Atmospheric dew point



Nitrogen system



1 air compressor

2 Compressed air pretreatment system (dryer and multistage filters)

3 Air buffer tank

4 PSA nitrogen generator

5 Nitrogen gas buffer tank

6 Control system(including man-machine control interface)

7 Instrument and meter (installed in nitrogen generator)



Pressure

>0.8Mpa



PSA Nitrogen Generator

Item

Technical parameter

Remark

Model

PM-1200



N2 output

1200Nm3/h

Standard state

N2 purity

≥95%

Non-oxygen content in GB

Pressure

0.8Mpa



Outlet pressure

0.1-0.6Mpa

Adjustable

Dew point of N2 outlet

≤-45°C

Atmospheric dew point
