Skid Mounted PSA Nitrogen Generator 5-5000 Nm3/h 95-99.9995% Purity

sa nitrogen plant

psa nitrogen generation system

Skid Mounted PSA Nitrogen Generator

Place of Origin:

Suzhou,China

Brand Name:

SINCE

Certification:

CE,ABS,CCS,BV,DNV,ASME,GOST,

Model Number:

Request A Quote

Skid Mounted PSA Nitrogen Generator 5-5000 Nm3/h 95-99.9995% Purity

Product Details

Name:

PSA Nitrogen Generator

Material:

Carbon Steel/Stainless Steel

Capacity:

5-5000 Nm3/h

Purity:

95%-99.9995%

Power Supply:

220V/50Hz

Application:

New Material Industries

Highlight:

sa nitrogen plant

psa nitrogen generation system

Skid Mounted PSA Nitrogen Generator

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiate

Packaging Details

Normal exported standard package

Delivery Time

2 months after received down payment

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

1000 sets per year

BV,,CCS,TS,ISO Oil&Gas nitrogen generator package system

Get Best Price

/CCS/BV/ISO/TS Oil refinery nitrogen generator system package

Get Best Price

BV,,CCS,ISO,TS Heat treatment nitrogen generator package system

Get Best Price

BV CCS ISO TS Electron Psa Nitrogen Gas Generator Package System

Get Best Price

Contact Now

Product Description

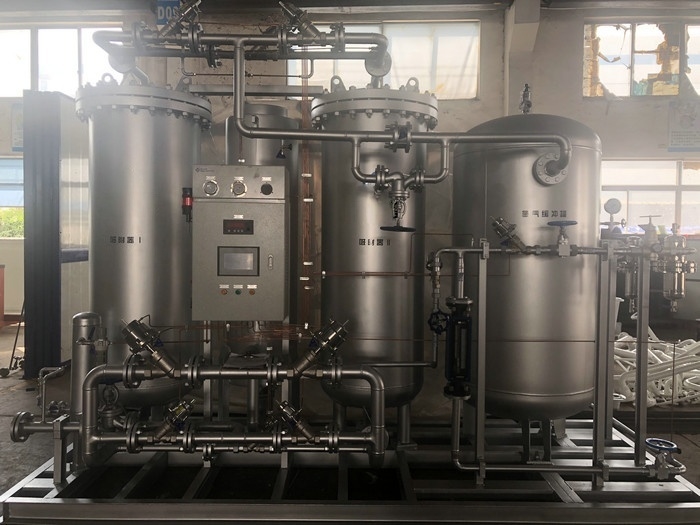

Skid Mounted PSA Nitrogen Generator - Easy Installation For New Material Industries

Product Specifications

Attribute	Value
Name	PSA Nitrogen Generator
Material	Carbon steel/Stainless steel
Capacity	5-5000 Nm3/h
Purity	95%-99.9995%
Power supply	220V/50Hz
Application	New Material Industries

Technical Characteristics

More economical:

Advanced air separation modules for cost efficiency
REFLUX composition control system reduces air consumption and energy costs
Patented Energy Efficiency System (EES) adjusts production based on actual demand

More convenient:

Diversified monitoring system displays capacity, purity, and pressure parameters
Provides running problem alerts and maintenance reminders
Turn-key solution with pre-commissioning
Skid mounted design for easy installation

Air consists of 78% nitrogen and 21% oxygen. PSA nitrogen generation technology separates these components by adsorbing oxygen and extracting nitrogen through Pressure Swing Adsorption (PSA) process using two vessels filled with Carbon Molecular Sieves (CMS).

Operation Process

Step 1: Adsorption
Pre-filtered compressed air passes through one CMS-filled vessel where oxygen is adsorbed, producing nitrogen as the product gas.

Step 2: Desorption
When CMS becomes saturated with oxygen, the process switches to the second vessel while the first begins desorption and regeneration, discharging waste gases.

Step 3: Regeneration
Part of the produced nitrogen purges into the saturated vessel to regenerate the CMS for the next cycle, ensuring continuous nitrogen production.

Key Benefits

Proven experience with over 1000 installations worldwide
German technology collaboration with proprietary enhancements
Fully automated operation requiring no personnel

Technical Specifications

No	Model	Capacity (Nm3/h)	Purity	Power (KW)	Overall size (mm)
1	PN-3-39	3	99.9%	0.5	1800×1400×1500
2	PN-5-29	5	99.5%	0.5	1800×1400×1500
3	PN-5-295	5	99%	0.5	1800×1400×1500
4	PN-8-295	8	95%	0.5	1800×1400×1500
5	PN-5-49	5	99.99%	0.5	1800×1400×1800
6	PN-8-39	8	99.9%	0.5	1800×1400×1800
7	PN-12-295	12	99.5%	0.5	1800×1400×1800
8	PN-15-29	15	99%	0.5	1800×1400×1800

Note: For complete specifications or additional information, please contact Since Gas System Co., Ltd or email us directly.

Applications

Metallurgy: Anneal protection, agglomeration protection, nitrogen furnace washing, metal heating treatment, powder metallurgy, magnetic materials, etc.
Chemical and new material industries: Chemical material gas, pipeline blowing, gas replacement, polyurethane, biological technology, intermediates, etc.
Electronic industry: Encapsulation, agglomeration, anneal, deoxidization, peak welding, electronic copper tape, batteries, etc.
