Electron SMT high purity 99.9995% PSA nitrogen generator/system/package

Electron SMT high purity 99.9995% PSA nitrogen generator/system/package

  • Electron SMT high purity 99.9995% PSA nitrogen generator/system/package
Electron SMT high purity 99.9995% PSA nitrogen generator/system/package
Product Details:
Place of Origin: Suzhou, China
Brand Name: SINCE
Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /per year
Contact Now
Detailed Product Description
Material: Carbon Steel/Stainless Steel Certificates: BV,,CCS,ISO,TS
Capaicty: 5-5000 Nm3/h Purity: 95%-99.9995%
Dew Point: -40 ℃ Operate Power: 1 KW
Application: Electron High Purity Nitrogen Generator
High Light:

sa nitrogen plant

,

psa nitrogen generation system

Electron SMT high purity 99.9995% PSA nitrogen generator/system/package



Description:



NO

Item

Notes

1

Nitrogen

High purity 99.9995%

2

Energy

Excellent energy-saving

3

Working life

>20 years

4

Operating method

Fully automatic

5

Certificates

CE,TUV,,CCS approved



Introduction:



N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than

the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.

When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,

the N2 gas is absorbed and O2 is obtained by separation.

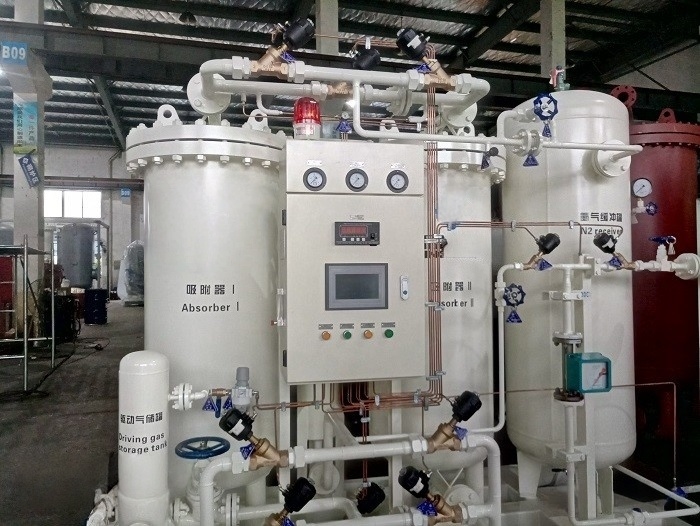

The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get

into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .

When one tower produces N2, another tower release the N2 by reducing the pressure to get the

renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration

to output N2 continuously.



Benefits of our PSA Nitrogen Generators:



·  Experience - We have supplied over 1000 Nitrogen Generators all over the world.

·  German Technology - We have German collaboration for our technology and have fine tuned this

technology to gain proprietary advantages in several key areas.

·  Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation

and no personnel are required for operating the Gas plant.

·  Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by

optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.



Specifications:



No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



Technical Features:
Low energy consumption,less cost,strong adaptability,rapid nitrogen production and adjustable

purity.Perfect technique process design and  optimal using effect.
Modular structure design and saving of floor space.
Convenient operation,stable performance, high automation and unattended operation.
Reasonable inner structure,uniform  distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented  technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic  troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.



Application:



Electron Industry

Electron SMT high purity 99.9995% PSA nitrogen generator/system/package 0
