400 Nm3/H 99.99% Methanol Cracking Unit For Cold Rolled Sheets

400 Nm3/H 99.99% Methanol Cracking Unit For Cold Rolled Sheets

  • 400 Nm3/H 99.99% Methanol Cracking Unit For Cold Rolled Sheets
400 Nm3/H 99.99% Methanol Cracking Unit For Cold Rolled Sheets
Product Details:
Place of Origin: Suzhou,China
Brand Name: SINCE-GAS
Model Number: PM-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Capacity: 400 Nm3/h Purity: 99.99%
Operate Pressure: 0.8-2.5 Mpa(g) (adjustable) Raw Material: Methanol
Application: Cold Rolled Sheets
High Light:

400Nm3/H Methanol Production Plants


Cold Rolled Sheets Methanol Project


99.99% Methanol Cracking


400 Nm3/h 99.99% Methanol Cracking Unit For Cold Rolled Sheets



Beside endothermic gas or endo gas, more and more methanol is used for the thermal treatment of metals as a protective gas. The methanol is directly insirted into the furnace and cracked there.
        CH3OH  →  CO  +  2 H2
Carbon monoxid and hydrogen are formed. The methanol cracking gas is an excellent carrier gas.
Hydrogen and carbon monoxide are reducing agents and avoid oxidation or corrosion of metal surfaces in a furnace. It has to be taken into account however, that carbon monoxid increases the carbon content of steel. Methanol cracking gas can therefore be used for surface hardening of steel by carbonisation or carburization. Carbon concentration can be increased up to the saturation level of austenite in surface close areas (around 1mm deep). In order to control the carbonization, water vapour can be added or nitrogen can be used for dilution.


Technical Figures:

1. In hot air stream, 95% to 98% of moisture can be evaporated immediately.

2. Quick drying speed:the surface area of material liquid through atomizing is increased greatly.

3. Product has good uniformity, fluidity, solubility, high pure, and quality.

4. For liquid containing 0~60% of damp(special may be 90%), it can be dried to powder through drying

one time.

5. After dried, not necessary to crush, sieve therefore reducing productive procedure .

6. For the size, bulk density and moisture of product can be adjusted within certain scope through exchanging

operation condition.

7. large flexibility of operation

8. No high requirement for factory buildings


1. Carbonisation, Carbonization, Carburization, Carburisation
2. Sintering
3. Annealing of steel with high carbon content
4. Normalizing



Technical features:

1.   It is a mature production technology, which can be operated safely and reliably.
2.  The feedstock is easy to get by a relatively stable price, and transported and stored easily too.
3.  The process flow is short and simple.
4.  Both energy consumption and production cost are relative low.
5.  Less land-occupation and investment, which can be recovered in a short period.
6.  Operation is simple and easy, and the automation is high.
7.  No environmental pollution.

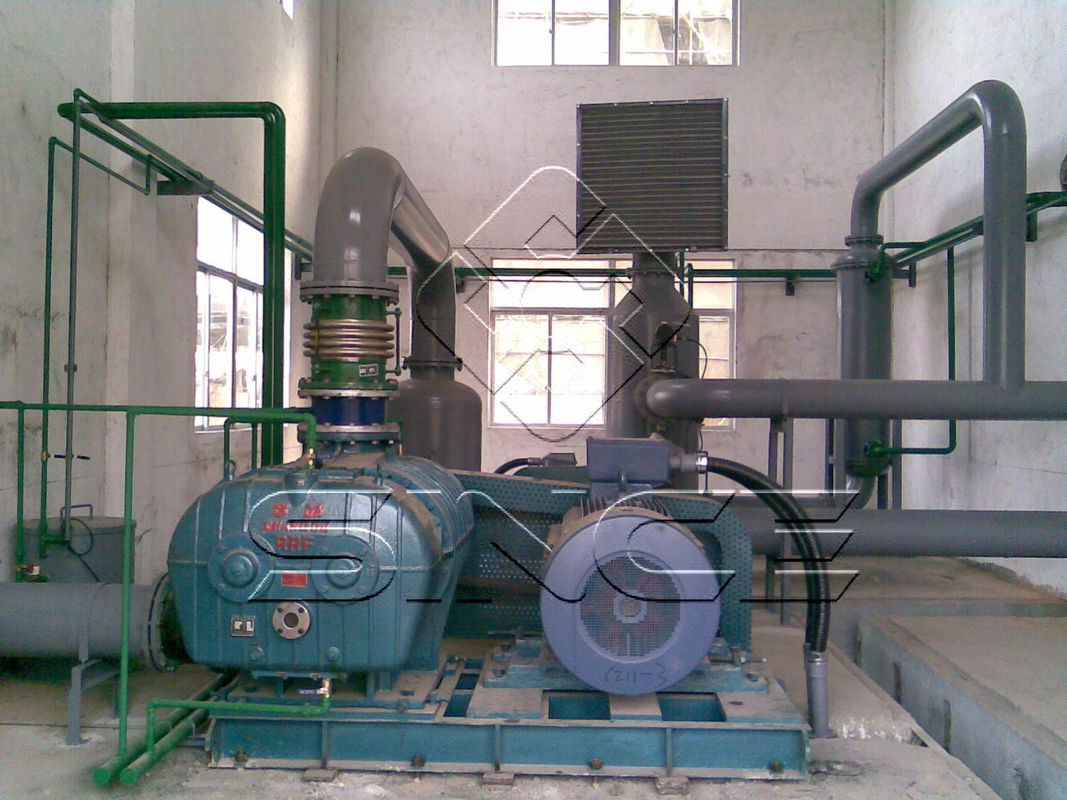

400 Nm3/H 99.99% Methanol Cracking Unit For Cold Rolled Sheets 0


Technical Index:

Production capacity

50-3000 Nm3/h

Product purity




Product Pressuer

0.8-2.5 Mpa(g)

Process Flow Diagram
The mixture of methanol and demineralized water, after pressurized, evaporated and superheated to a certain temperature, is fed into a reactor, where the reforming gases including H2,CO2,CO etc. are formed under the action of the catalyst. The mixed gas is treated through the purification technology of PSA to get high purity hydrogen in one cycle.


Process flow diagram:

400 Nm3/H 99.99% Methanol Cracking Unit For Cold Rolled Sheets 1
