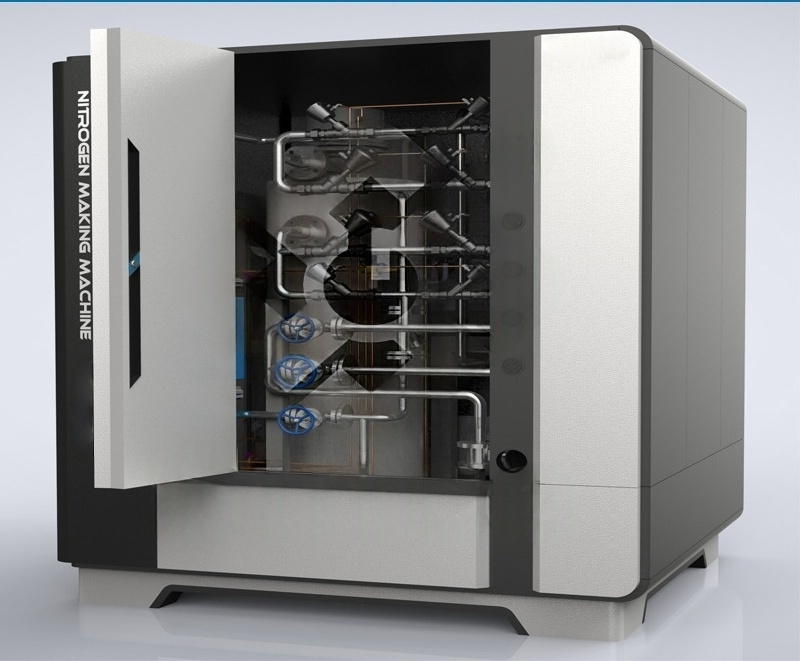

BV,,CCS,ISO,TS Heat treatment nitrogen generator package system

BV,,CCS,ISO,TS Heat treatment nitrogen generator package system

    • BV,,CCS,ISO,TS Heat treatment nitrogen generator package system
  • BV,,CCS,ISO,TS Heat treatment nitrogen generator package system

    Product Details:

    Place of Origin: Suzhou, China
    Brand Name: SINCE
    Certification: CE,ABS,CCS,BV,DNV,ASME,GOST,
    Model Number: PN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiate
    Packaging Details: Exported wooden case
    Delivery Time: 2 months after received down payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Material: Carbon Steel/Stainless Steel Certificates: BV,,CCS,ISO,TS
    Capacity: 5-5000 Nm3/h Purity: 95%-99.9995%
    Power Supply: 220V,50Hz Operate Power: 1 KW
    Dew Point: -70℃ Adsorbent: Carbon Molecular Sieves
    High Light:

    psa nitrogen generation system

    ,

    psa nitrogen gas generator

    BV,,CCS,ISO,TS Heat treatment nitrogen generator package system

    Description:

    (1) Nitrogen Generator
    1.1) High purity
    1.2) Excellent energy-saving
    1.3) Smoothly running,long-life
    1.4) Automatic operating
    1.5) Certificate:ISO9001:2008



    Introduction:

    (1)  What is PSA Technology?

    PSA Technology is a very mature technology and has been around since the 1970's. In fact, thousands of PSA plants are serving customers worldwide. We have supplied our PSA plants to customers in over 56 countries.
    We explain the PSA technology below using a simple process diagram.

    BV,,CCS,ISO,TS Heat treatment nitrogen generator package system 0

    Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the

    principle of air separation by adsorbing Oxygen and separating Nitrogen.


    Pressure Swing Adsorption (PSA Nitrogen) process comprises of 2 vessels filled with Carbon Molecular Sieves (CMS). (see image below for detail of vessels).

    Step 1: Adsorption
    Pre filtered compressed air is passed through one CMS filled vessel. Oxygen is adsorbed by the CMS and Nitrogen comes out as the product gas. After some time of operation, the CMS inside this vessel gets

    saturated with Oxygen and can no longer adsorb.
    Step 2: Desorption
    Upon saturation of the CMS in the vessel, the process switches nitrogen generation to the other vessel,

    while allowing the saturated bed start the process of desorption and regeneration. The waste gas

    (oxygen, carbon dioxide, etc.) is discharged into atmosphere.
    Step 3: Regeneration
    In order to regenerate the CMS in the vessel, part of the Nitrogen produced by the other tower is purged

    into this tower. This allows for quick regeneration of the CMS and to make it available for production in

    the next cycle.

    The cyclical nature of the process between the two vessels ensures continuous production of pure

    Nitrogen.

    BV,,CCS,ISO,TS Heat treatment nitrogen generator package system 1

    Benefits of our PSA Nitrogen Generators:



    ·  Experience - We have supplied over 1000 Nitrogen Generators all over the world.

    ·  German Technology - We have German collaboration for our technology and have fine tuned this

    technology to gain proprietary advantages in several key areas.

    ·  Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation

    and no personnel are required for operating the Gas plant.

    ·  Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by

    optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.



    Specifications:



    No

    Model

    Capacity(Nm3/h)

    Purity

    Power(KW)

    Overall size(mm)

    1

    2

    3

    4

    PN-3-39

    PN-5-29

    PN-5-295

    PN-8-295

    3

    5

    5

    8

    99.9%

    99.5%

    99%

    95%





    0.5





    1800*1400*1500

    5

    6

    7

    8

    PN-5-49

    PN-8-39

    PN-12-295

    PN-15-29

    5

    8

    12

    15

    99.99%

    99.9%

    99.5%

    99%





    0.5





    1800*1400*1800

    9

    10

    11

    12

    PN-10-49

    PN-15-39

    PN-25-295

    PN-30-39

    10

    15

    25

    30

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2000*1700*2250

    13

    14

    15

    16

    PN-15-49

    PN-22-39

    PN-35-295

    PN-45-29

    15

    22

    35

    45

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2100*1800*2200

    17

    18

    19

    20

    PN-20-49

    PN-30-39

    PN-50-295

    PN-60-29

    20

    30

    50

    60

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2200*1800*2200

    21

    22

    23

    24

    PN-30-49

    PN-45-39

    PN-75-295

    PN-88-29

    30

    45

    75

    88

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2400*1900*2200

    25

    26

    27

    28

    PN-40-49

    PN-60-39

    PN-100-295

    PN-120-29

    40

    60

    100

    120

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2500*2100*2500

    29

    30

    31

    32

    PN-50-49

    PN-70-39

    PN-120-295

    PN-140-29

    50

    70

    120

    140

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2600*2200*2850

    33

    34

    35

    36

    PN-60-49

    PN-90-39

    PN-160-295

    PN-190-29

    60

    90

    160

    190

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2800*2200*2500

    37

    PN-80-49

    80

    99.99%

    0.5



    38

    39

    40

    PN-120-39

    PN-200-295

    PN-250-29

    120

    200

    250

    99.9%

    99.5%

    99%



    0.5



    3200*1400*2800

    41

    42

    43

    44

    PN-100-49

    PN-140-39

    PN-250-295

    PN-290-29

    100

    140

    250

    290

    99.99%

    99.9%

    99.5%

    99%





    0.5





    3500*1500*2800

    ...

    ...

    ...

    ...

    ...

    ...

    Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



    Figures of nitrogen generator :

    High purity, and the purity of N2 could be regulated between 95% to 99.9995% according as user's need;
    .High efficiency, low energy consumption of compressed air;
    .Standard models, nitrogen generator could be parallel for additional nitrogen output;
    .Low dew point, dew point of product ≤ -40 °C to ensure the quality of welding;
    .Available frame, appearance clean and easy cleaning management to meet the high cleanliness requirement of electronics industry.



    Application:

      Chemical Manufacturing

    . Lase Cutting

    . Tire Filling

    . Pharmaceutical

    . Marine

    . Electronics

    . Food Processing & Packaging

    . Plastic

    . Heat Treatment

    . Others



    During the last 10 years,about 98% old customers firmly choose SINCE



    Why they always choose SINCE?

    Many years of experience and expertise in manufacturing and supplying gas plants;

    ,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom company who got ,TS (Manufacture License of special equipment)

    CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen generator.Excellent infrastructure set up teamed by experienced and qualified engineers.

    Sophisticated and developed R&D wing in assistance for installation and use of plants.
